A-Pillar Trim is Poorly Fitted



A-Pillar Trim

Repair instruction for A-pillar trim

Cause
A-pillar trim is poorly fitted (arrows). The clip of the A-pillar trim can be broken, see illustrations.

Repair instruction
Correctly adjust the A-pillar trim; ensure that the securing clips are not broken.

A-pillar trim

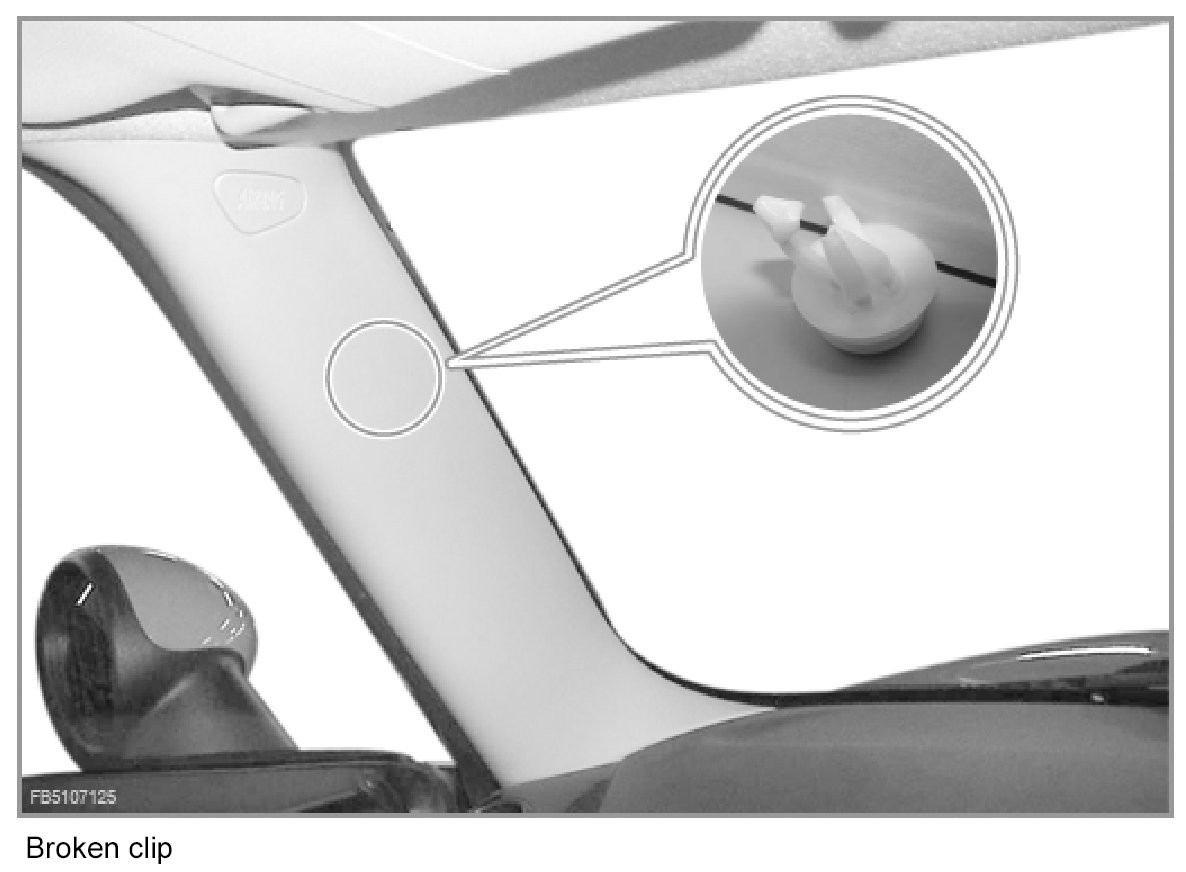

Broken clip

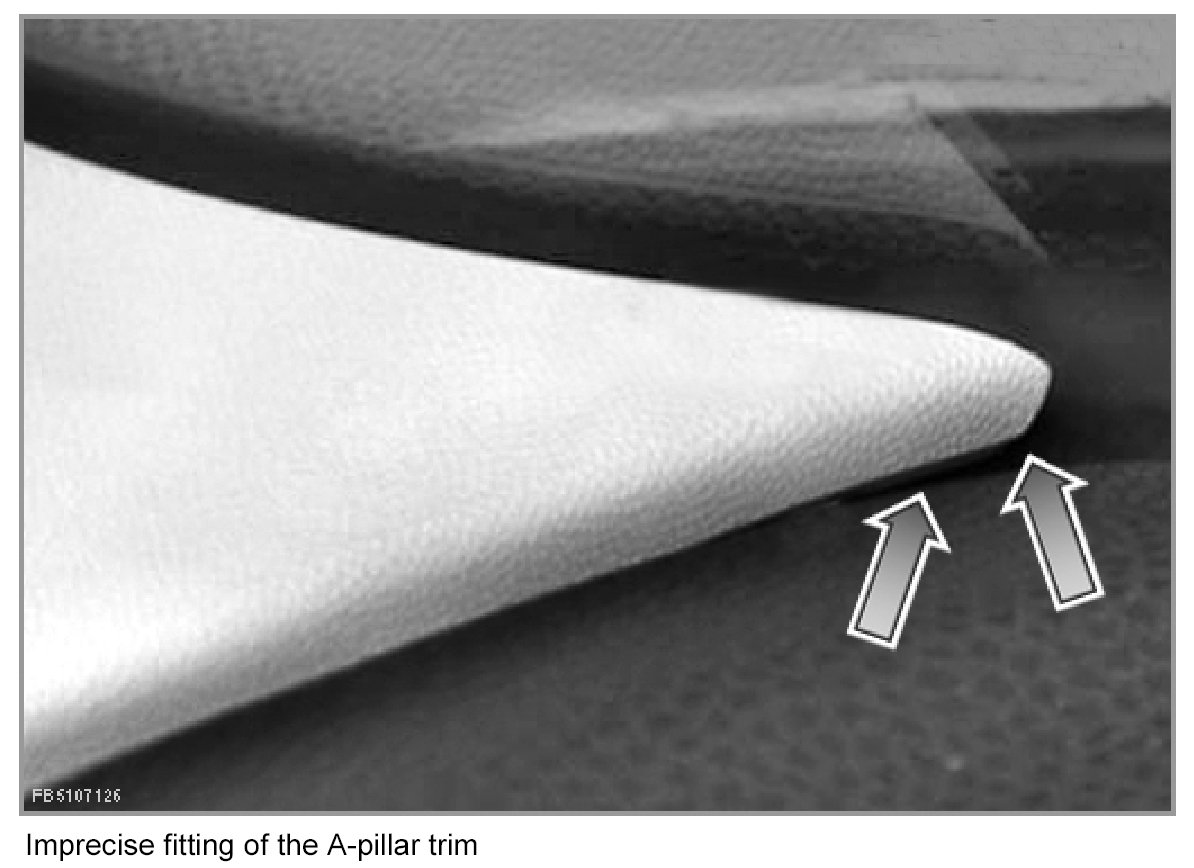

Imprecise fitting of the A-pillar trim
