Oil Pump: Service and Repair

11 41 000 - Removing and installing oil pump (N14)





Necessary preliminary tasks:
- Removing oil pan Service and Repair.

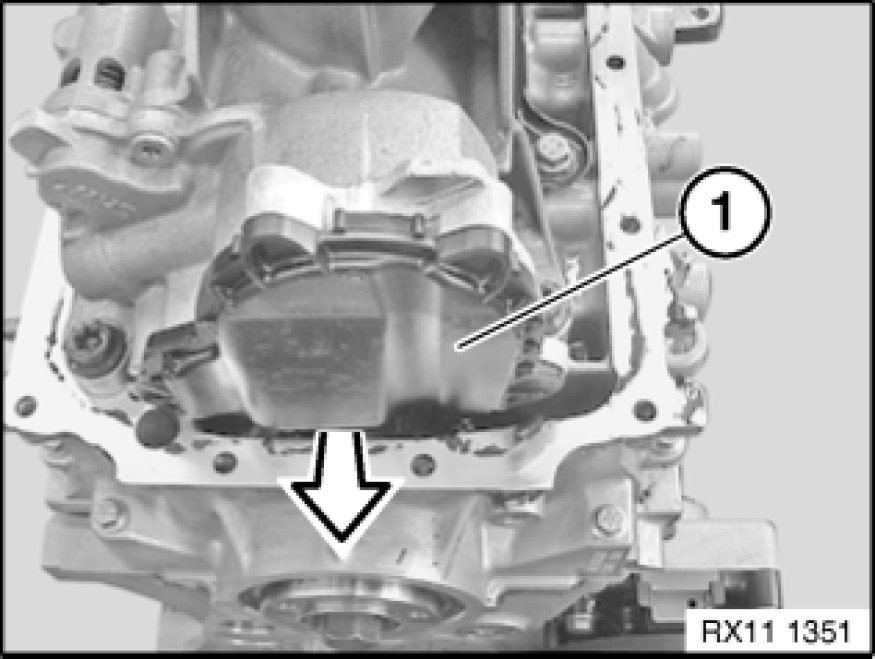

Pull off cover (1) in direction of arrow.

Installation:
Replace cover (1).





Release screw (1).
Tightening torque: 11 41 2AZ. Mechanical Specifications
Grip crankshaft central bolt (2) to release central bolt (1).

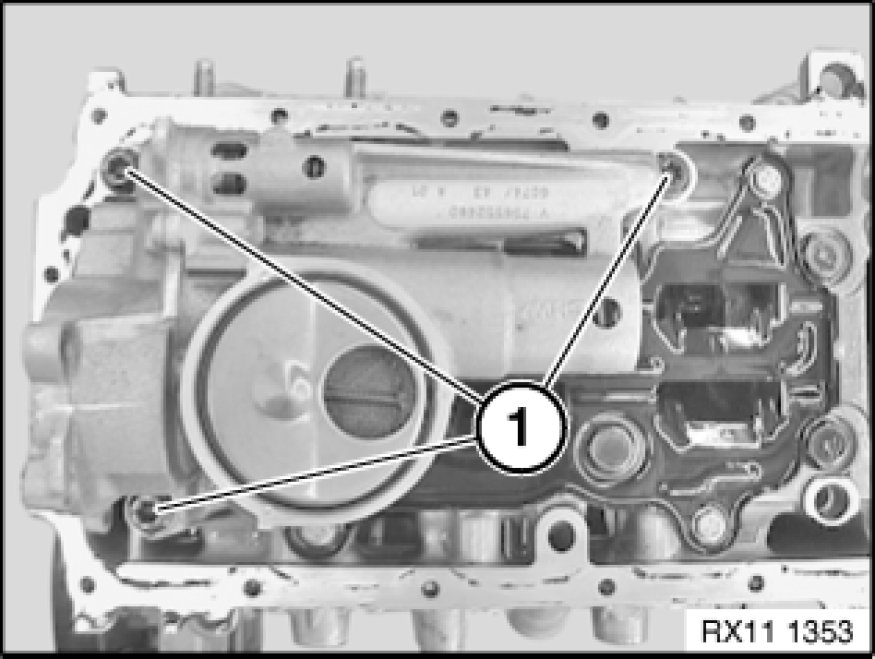

Release screws (1).
Tightening torque: 11 41 1AZ. Mechanical Specifications





Assemble engine.
