51 45 075 Removing and Installing Carrier For Instrument Panel

51 45 075 Removing And Installing Carrier For Instrument Panel







Necessary preliminary tasks:
- Remove instrument panel lower section
- Remove both front entrance covers
- Remove centre console
- Remove control unit for Car Access System

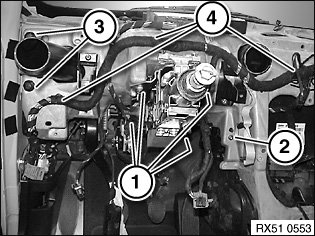

Release screws (1) and lower steering column.

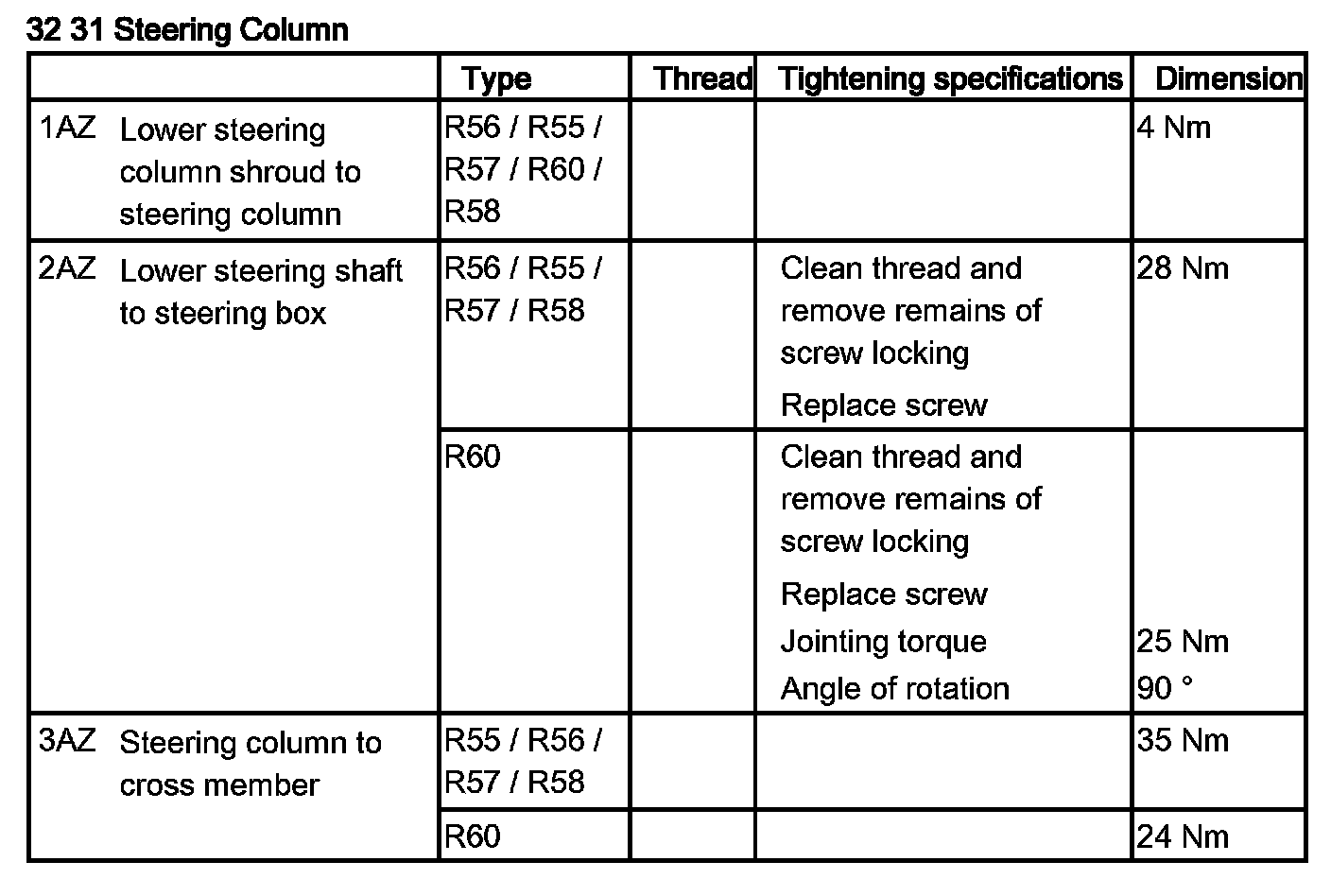

Tightening torque 32 31 3AZ. Release screw (2).
Release screws (3).

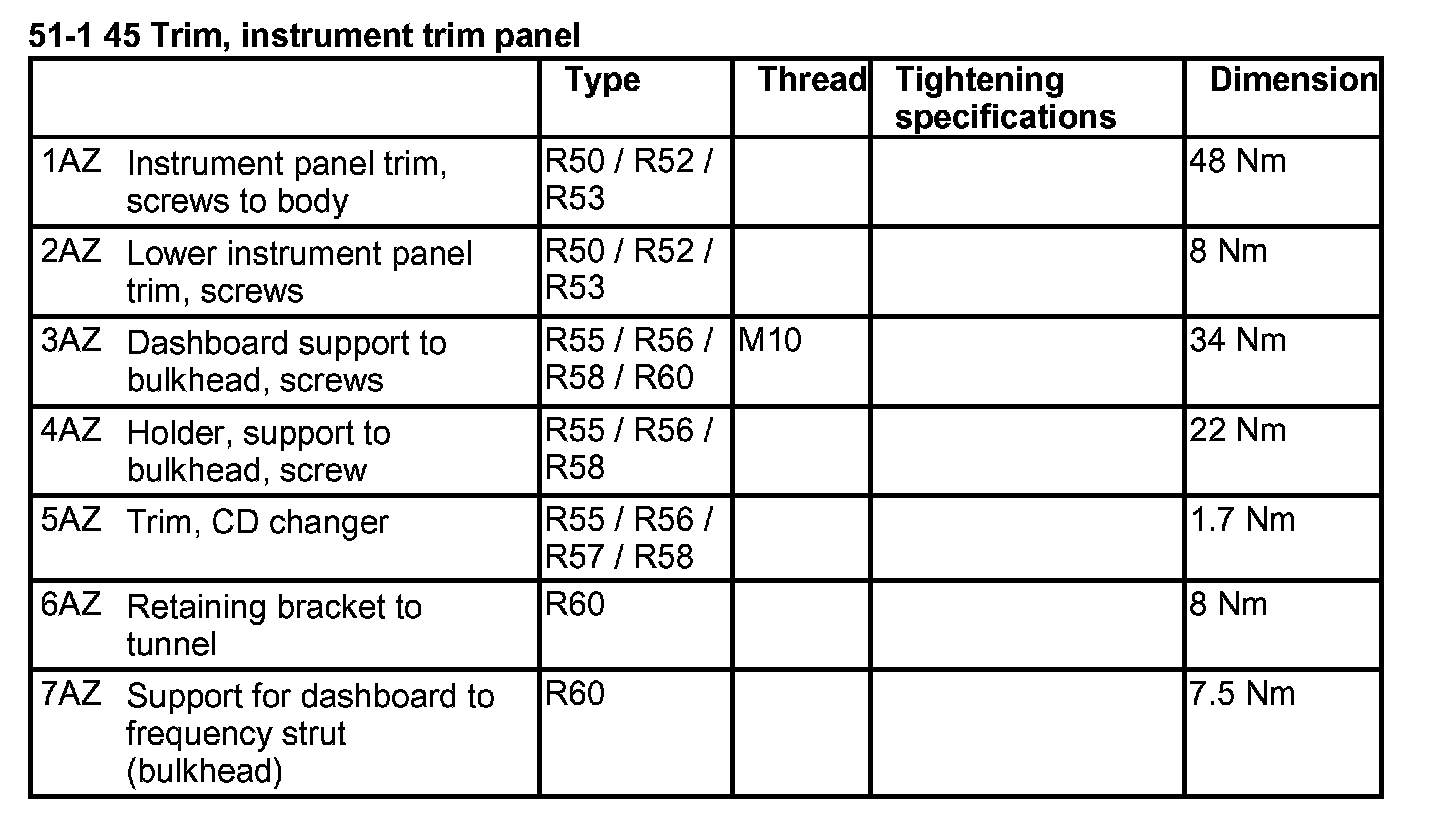

Tightening torque 51 45 3AZ.
Unclip wiring harness (4).

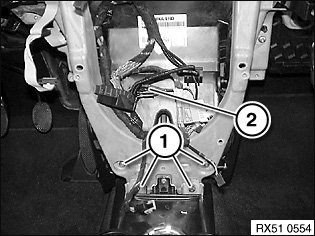

Release screws (1).
Disconnect plug connection (2).
If necessary, disconnect plug connection at handbrake switch.
If necessary, disconnect plug connection at airbag control unit.
If necessary, disconnect plug connection at eject box.

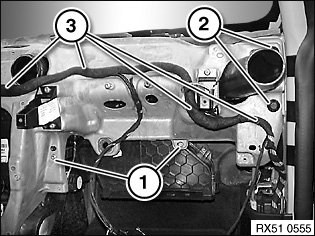

Release screws (1).
Unfasten screws (2).
Tightening torque 51 45 3AZ.
Unclip wiring harness (4).

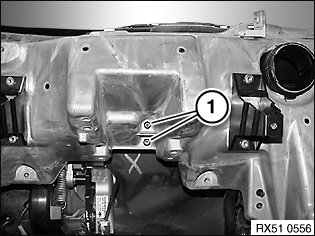

Release screws (1).
Remove carrier for instrument panel.

Installation:
Make sure air duct is correctly seated.
