CD Changer, Cable

CD Changer Cable

Repair instruction for CD changer cable

Cause
The CD changer cable is loose and strikes the housing of the CD changer.

Repair instruction
- Remove the housing of the CD changer

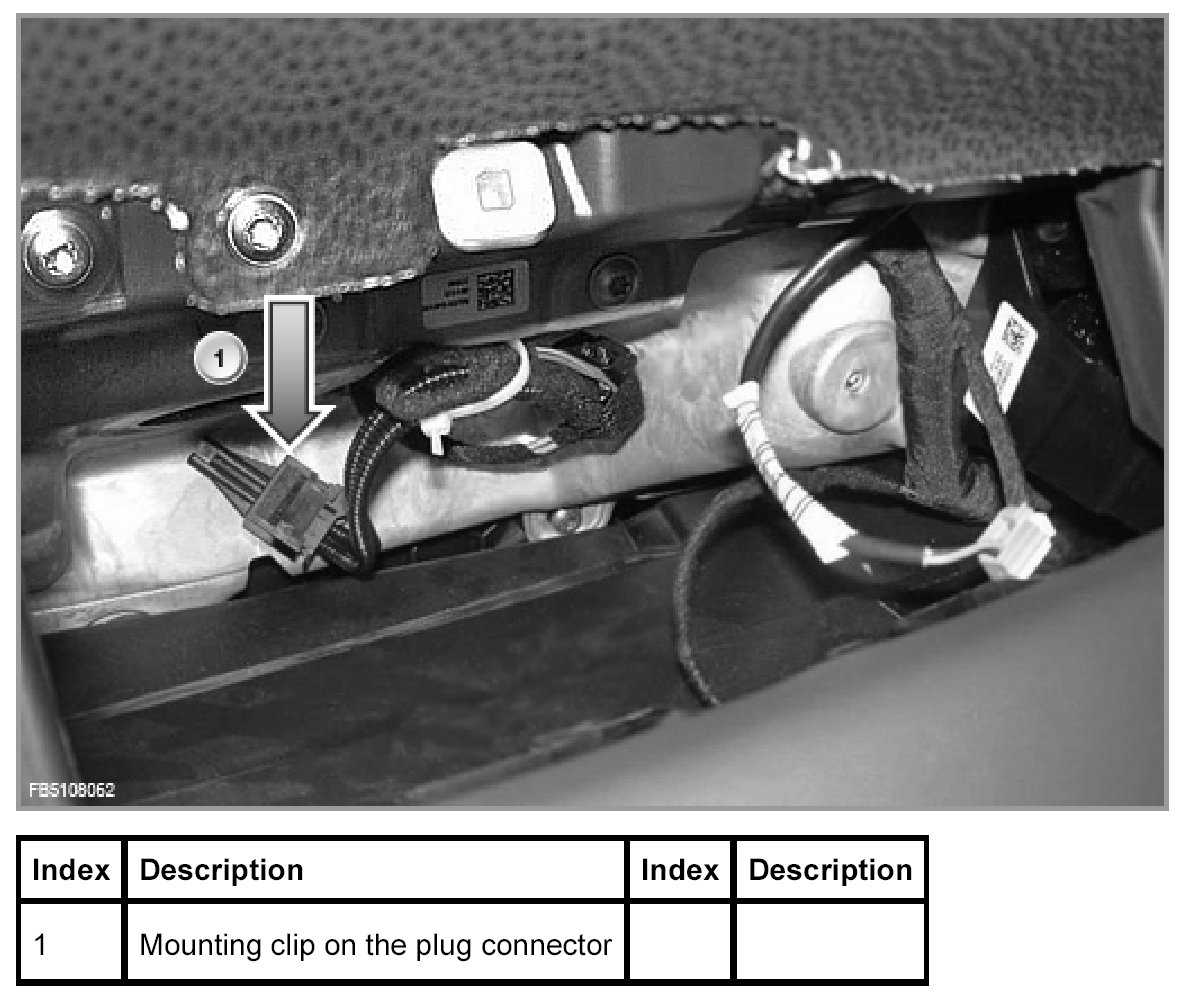

- Use the mounting clip to attach the wiring harness on the plug connector for the optical adapter cable onto the cross-member
- Also attach the wiring harness to the cross-member

CD changer cable
