Carrier, Glovebox

Glove Box Mounting Bracket

Repair instruction for glove box mounting bracket

Cause
If the iPod retrofit kit (part number 0422163) is fitted, the mounting bolts protrude above the glove box mounting bracket. The protruding mounting bolts cause the rattling noises.







Repair instruction
Attach felt strips to the protruding mounting bolts.

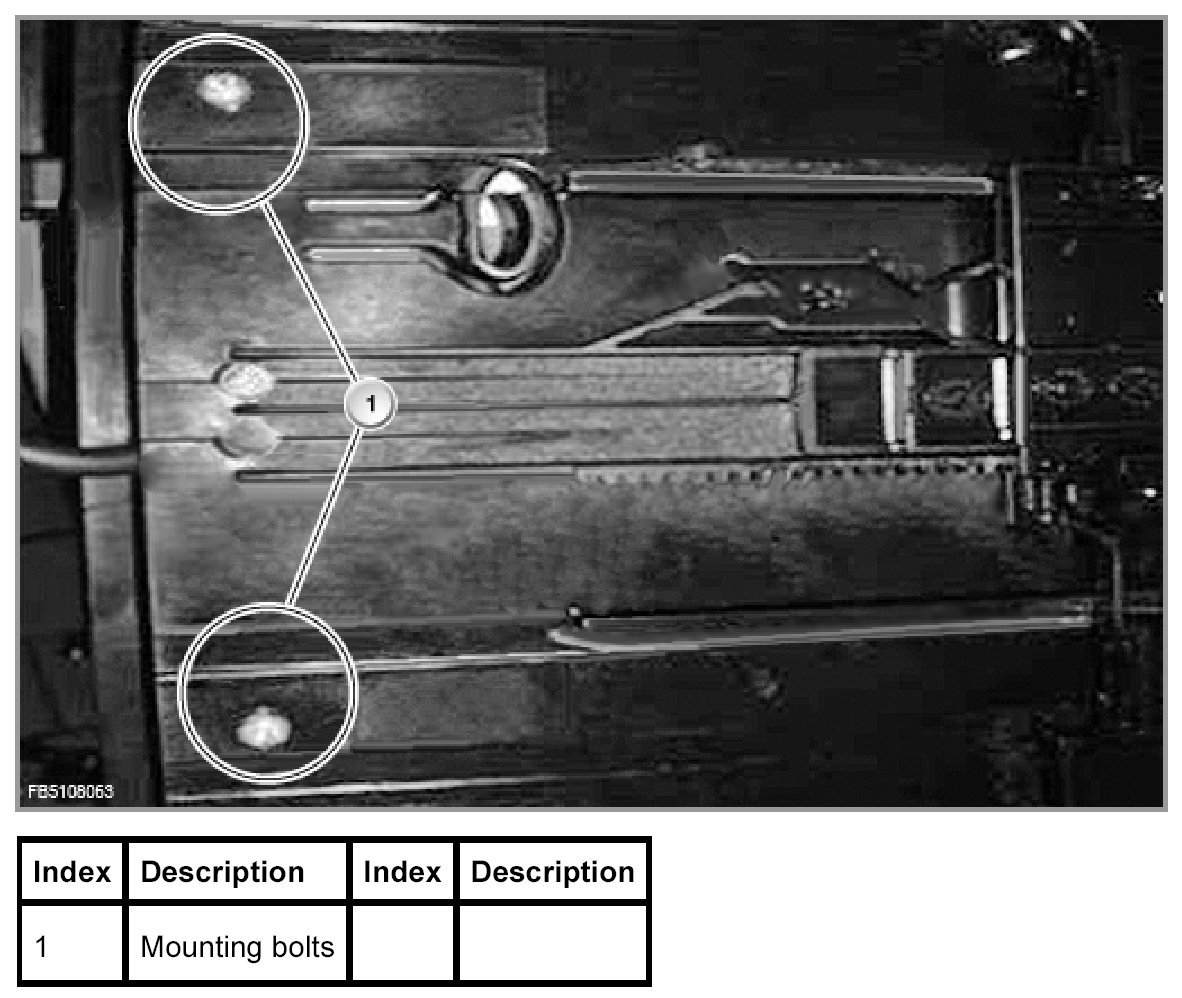

Glove box mounting bracket
