Connecting Bracket, Carrier, Instrument Panel

Connecting Bracket For Dashboard Mounting Bracket

Repair instruction for dashboard mounting bracket

Cause
The bolt connection of the connecting bracket between the dashboard mounting bracket and tunnel is loose.

Repair instruction
- Check whether the bolts or retaining clips are damaged, replace if necessary
- Tighten the bolts with the right torque

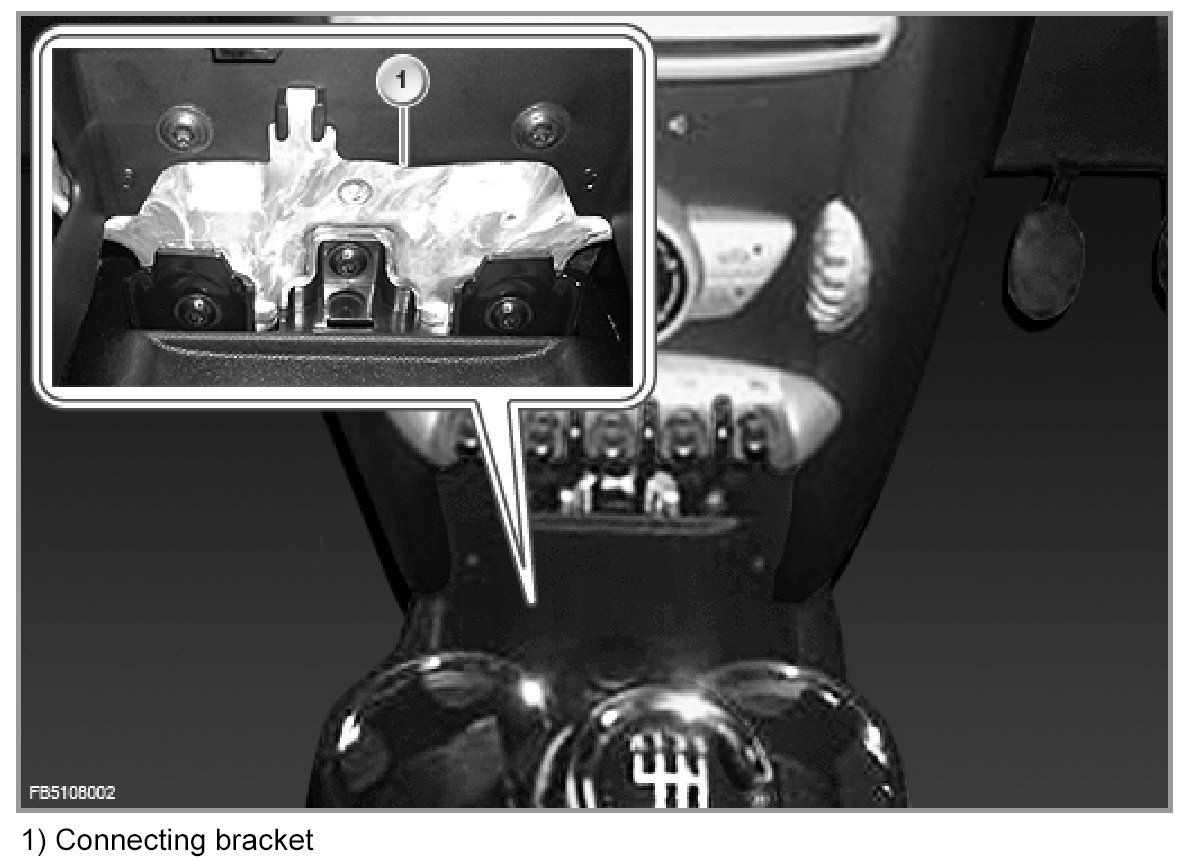

Connecting bracket for dashboard mounting bracket
