31 12 130 Replacing Rubber Mount in Left or Right Control Arm

31 12 130 Replacing rubber mount in left or right control arm

Special tools required:







Necessary preliminary tasks:
- Remove holder for wishbone.

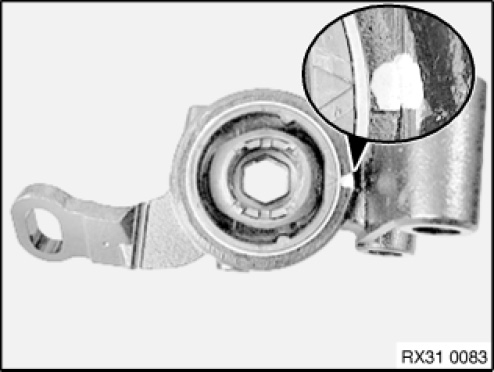

IMPORTANT: Mark the alignment of the rubber mount with the holder prior to removal.







Pull the rubber mount out with special tool 31 5 150 as shown.







Installation note:
The arrow on the rubber mount must point to the mark on the holder.







Pull the rubber mount in with special tool 31 5 150 as shown.
