33 4 140 Device

33 4 140 Device

0492397

Minimum set: Mechanical tools

MW







NOTE: For removing rubber mount in rear axle support.

Storage Location: A8
B8

SI number: 01 02 99 (417)

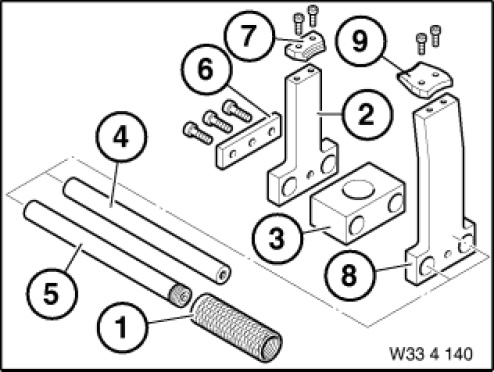

Consisting of:

1 = 0492398 Pipe

NOTE: (Threaded pipe)

2 = 0492399 Shaped part

NOTE: (Shaped part) 2 pieces Model series: E38, E39, E46

3 = 0492400 Shaped part

NOTE: (shaped part)

4 = 0492401 Rod

NOTE: (Guide rod)

5 = 0492402 Rod

NOTE: (Guide rod) With thread dog point

6 = 0492403 Plate

NOTE: (Locating plate) With screws

7 = 0492404 Synchronizing key

NOTE: (Synchronizing key (2 x)) With screws - model series: E38, E39, E46

8 = 0492405 Shaped part

NOTE: (Shaped part) 2 pieces Model series: E39/2, E65, E67, RR1

9 = 0492406 Synchronizing key

NOTE: (Synchronizing key (2 x)) With countersunk screw - model series: E39/2, E65, E67, E87
