51 45 072 Removing and Installing Instrument Panel With Carrier

51 45 072 Removing And Installing Instrument Panel With Carrier

Necessary preliminary tasks:
- Move wheels into straight-ahead position
- Clamp off battery negative lead
- Remove trim panel for roof pillar at front left and right
- Remove entrance cover strip at front left and right
- Remove storage compartment
- Remove rear centre console heater trim
- Remove glovebox cover
- Remove cover for air outlet vent cover at side left and right, see Air outlet vent cover

NOTE: On version with storage compartment or CD changer no removal of decorative trim on right.

- Remove lower section of steering column trim
- Remove operator unit for heater/air conditioner
- If necessary, remove solar sensor
- If necessary, remove CCC (Car Communication Computer)

Disconnect plug connections (1) to (3) on A-pillar on left.

Disconnect plug connections (1) to (4) on A-pillar on right.

Release cable (1) for handbrake switch.

Disconnect plug connection (1) for airbag control unit.

Unclip wiring harness (1) on cockpit and centre console.

Remove steering column (complete with steering wheel, airbag, steering column switch cluster)

Disconnect plug connection (1) on A/C unit (2).

Unclip wiring harness (1).
Detach cooling hose (2).

Release screws (1) above steering column.

Unfasten screws (1) to (3).

Release screw (1) on left below A/C control panel.

Release screw (1) on right below A/C control panel.

IMPORTANT: Use a stepped drill bit with a large diameter for the following operations, otherwise the background will be damaged in the case of the 20 mm dia. access holes.

Drill a 20 mm dia. access hole (2) as described in the following on the left next to the opening (1) for the A/C control panel.

Determine and mark centre of access hole as follows:
1. Align edge of impression (1) to side.
2. Distance to flank (2) - (A) = 14 mm.

Release screw that becomes visible behind access hole.

Installation:
Seal access hole with plug.
Part Number 51 71 1 801 066

Drill 20 mm dia. access holes on left (1) and right (2) in glovebox opening as described in the following.

Left access hole:
Determine and mark centre of access hole as follows:
1. Distance to flank (1) - (A) = 16 mm.
2. Distance to profile corner (2) - (B) = 26 mm.

Release screw that can be reached from front through access hole (1) at an angle.

Installation:
Seal access holes with plugs.
Part Number 51 71 1 801 066

Right access hole:
Determine and mark centre of access hole as follows:
1. Align edge of flank (1) downwards.
2. Distance to upper flank (2) - (A) = 58 mm

Release screw that becomes visible behind access hole.

Installation:
Seal access hole with plug.
Part Number 51 71 1 801 066

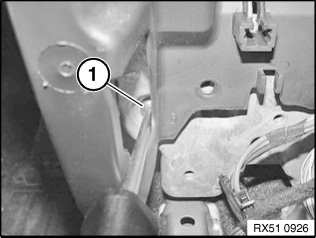

Release retaining angles (1).
Release side screws (2) and (3).
Pull off instrument panel complete with carrier.
