Emission Control Systems - Update
83mitsubishi04SUBJECT:
EMISSION CONTROL SYSTEMS UPDATE
NO. STB-83-25-001
DATE April 1983
MODEL 1983 Truck
The 1983 Mitsubishi Truck Service Manual has been updated:

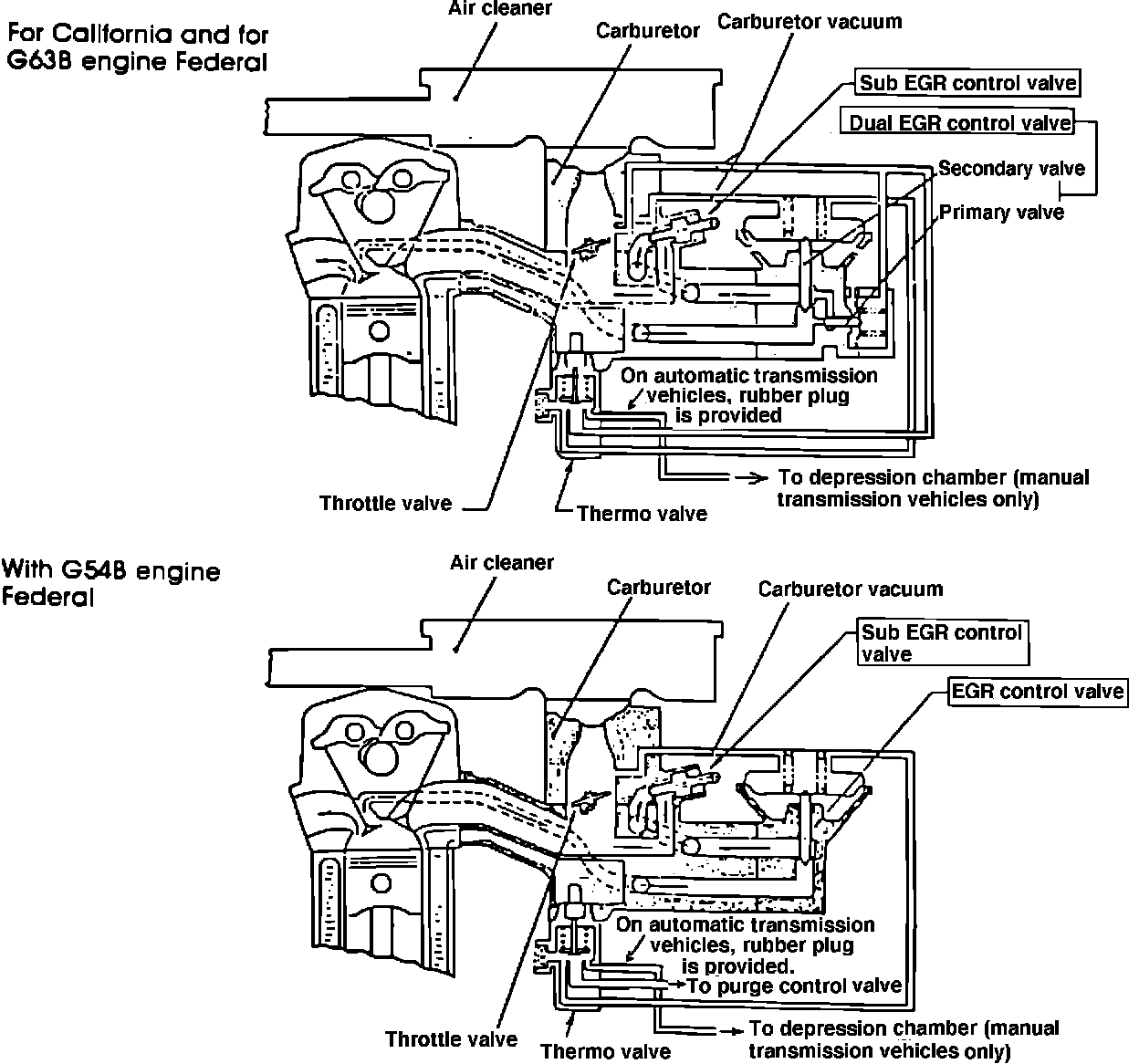

GROUP 25 PAGE 13 EXHAUST GAS RECIRCULATION (EGR) SYSTEM
The illustrations Fig. 20 EGR System have been changed to the new illustrations below:
To update your manual(s), place this sticker on top of page 25-13 in the manual.
GROUP 25 PAGE 15 THERMO VALVE
The Illustration (Fig. 24 Thermo Valve) has been updated with a new illustration:
To update your manual(s), place this sticker on top of page 25-15 in the manual.
