Engine Oil - Capacity Update

87mitsubishi01

SUBJECT:
ENGINE OIL CAPACITY - SERVICE MANUAL UPDATE

NO. STB-87-05

DATE September, 1987

MODEL Truck, Starion & Mirage

STS Revision STB-87-00-005


PURPOSE

This bulletin is issued to correct the engine oil capacity listed in the 1983-1986 Truck, 1985-1986 Starion and 1985 Mirage Service Manuals. As reference to this bulletin, please write the STB number in the revision boxes on the pages listed below.

SERVICE MANUAL PAGE NUMBER
1983 Truck*............................................ 0-9 & 9-8
1984 Truck.............................................. 0-9 & 9-8
1985 Truck ..............................................0-8 & 9-8
1986 Truck ..............................................0-5 & 9-8
1985 Starion..............................................0-6 & 9-7
1986 Starion..............................................0-6 & 9-7
1985 Mirage .............................................0-6

*This manual has no revision boxes. Write the STB number at the bottom of the page.




CORRECTIONS

1983-1986 2WD Truck - 2.6L (G54B) engine only

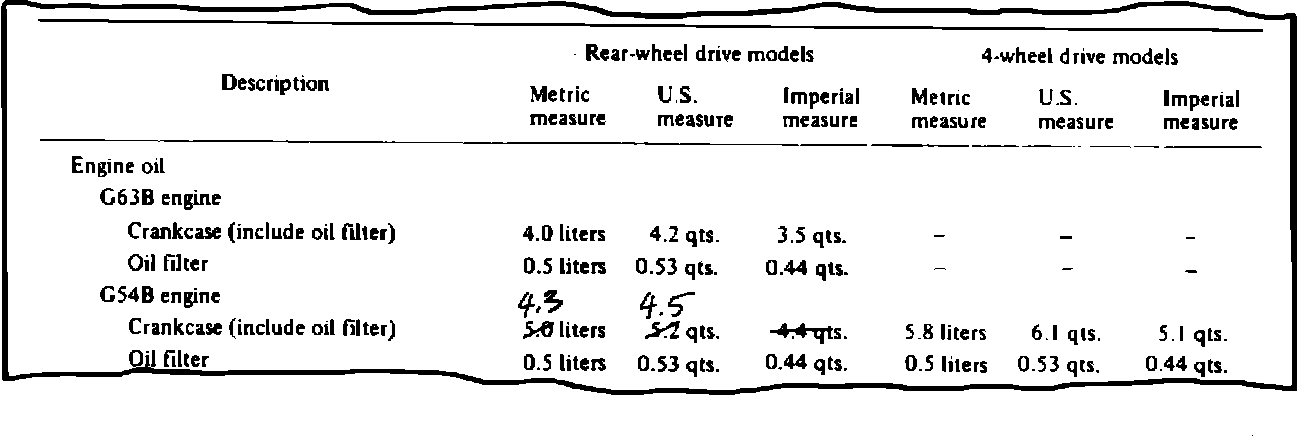

The correct crankcase oil capacity including oil filter for the 2WD Truck with the 2.6L (G54B) engine is 4.5 U.S. quarts (4.3 liters) as shown below.



1985-1986 Starion

The correct crankcase oil capacity including oil filter is 4.5 U.S. quarts (4.3 liters) as shown below. Add 0.2 U.S. quarts (0.2 liters) if equipped with an oil cooler.



1985 Mirage

The correct crankcase oil capacity including oil filter is as follows:

1.5L Non-Turbo engine - 3.7 U.S. quarts (3.5 liters)
1.6L Turbo engine - 4.2 U.S. quarts (4.0 liters)

Add 0.2 U.S. quarts (0.2 liters) if equipped with an oil cooler.
