Barometric Pressure Sensor: Locations

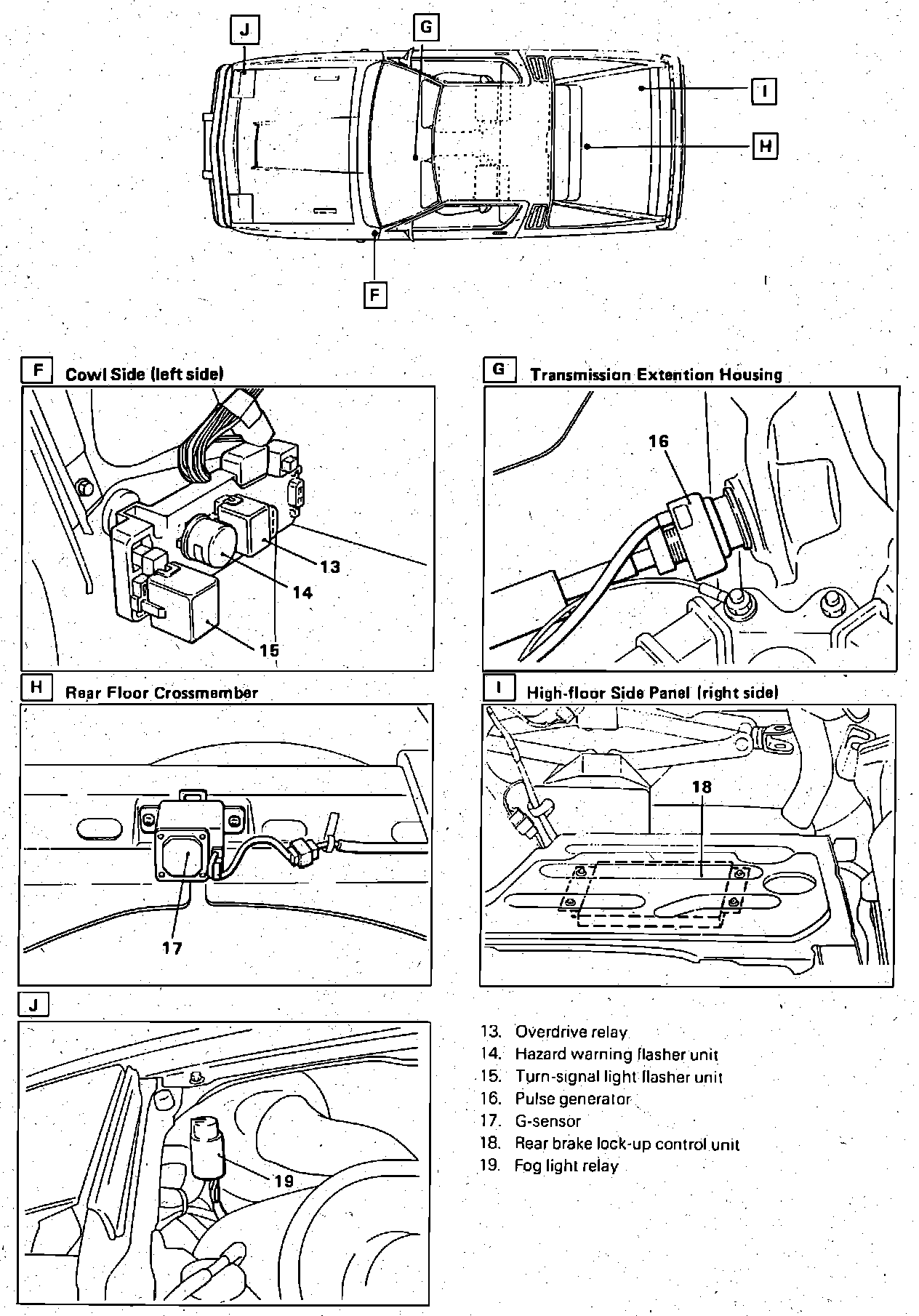

Body Relay Locations (Part 1 of 3).:

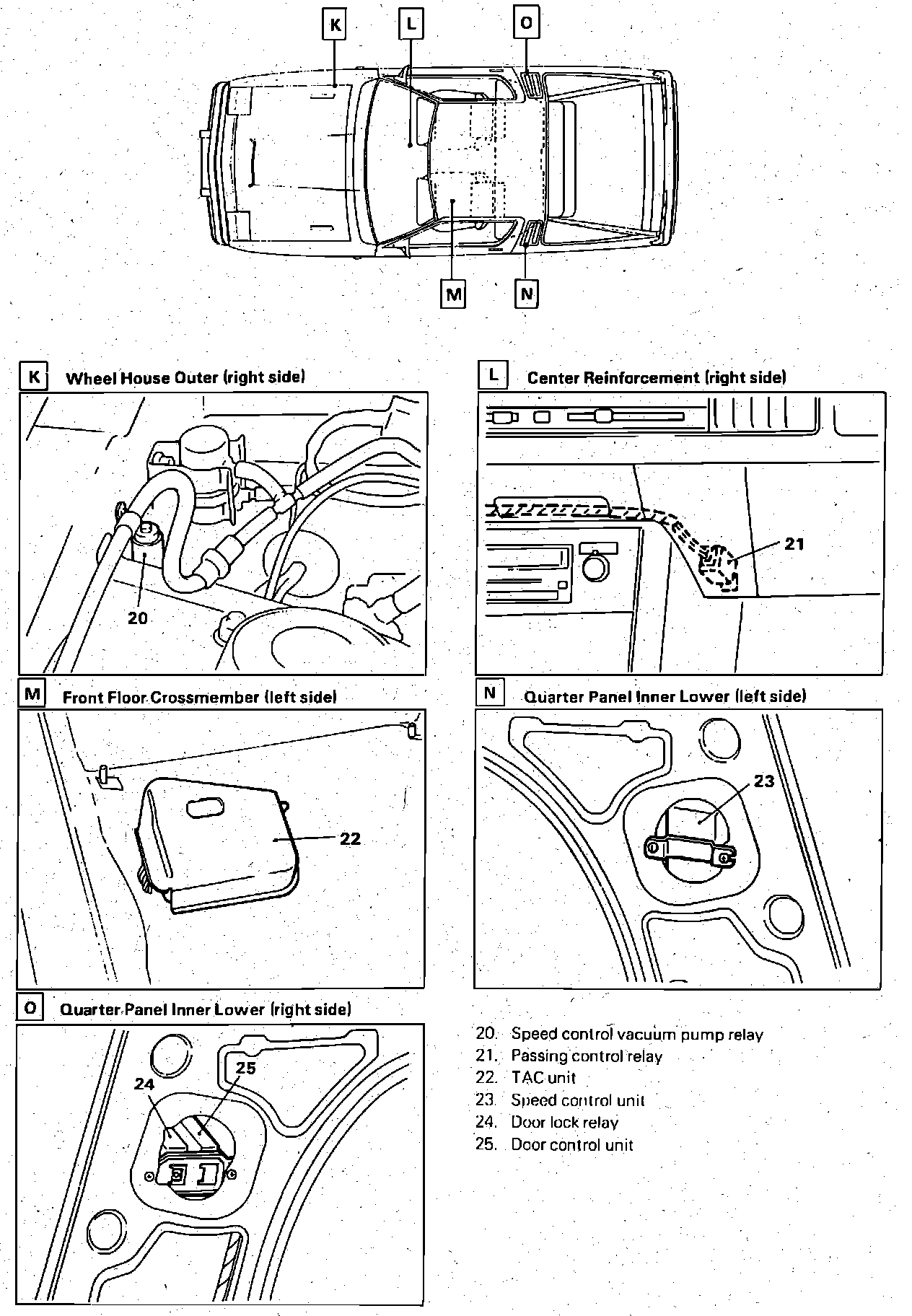

Body Relay Locations (Part 1 of 3).:

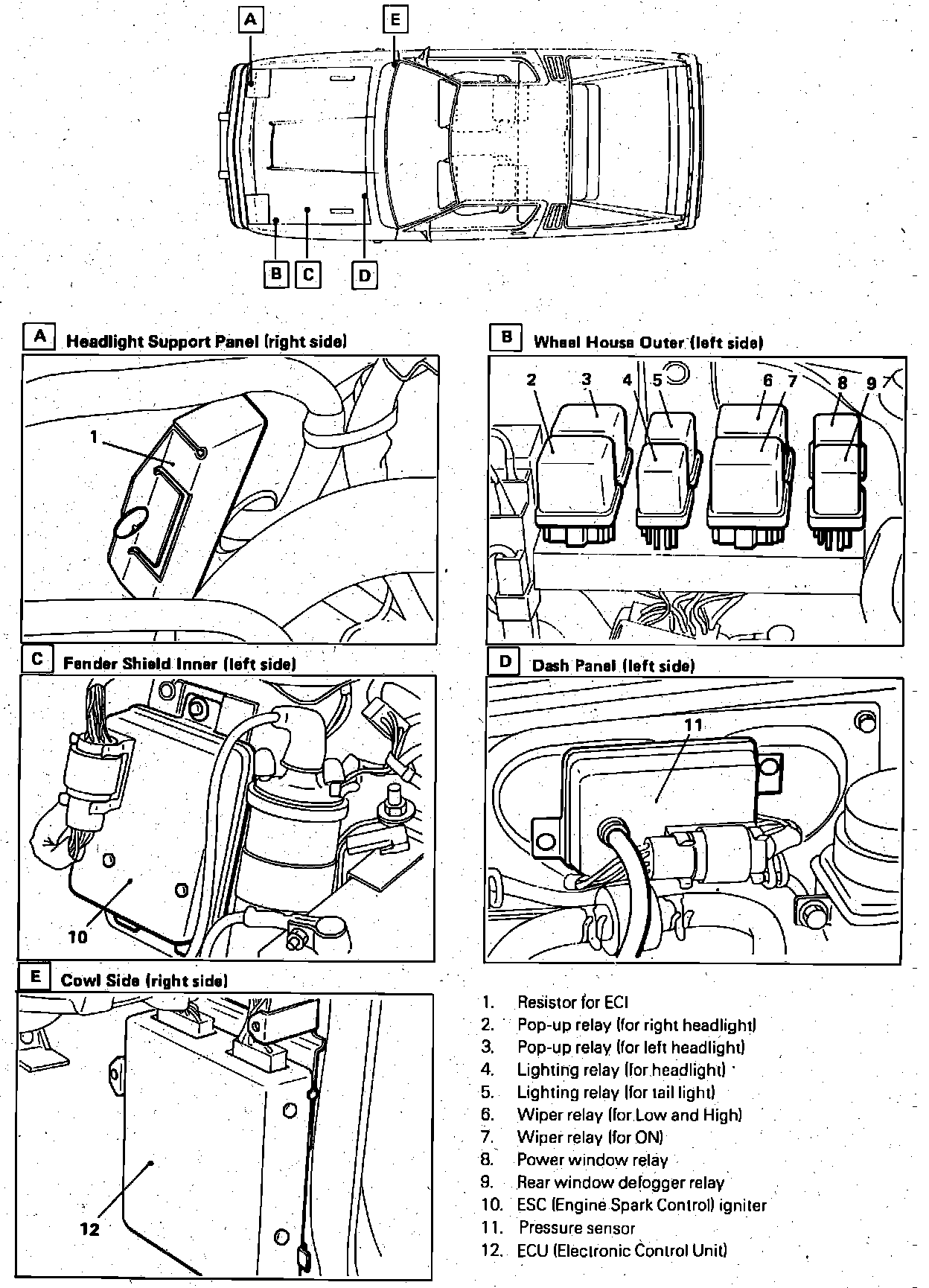

Body Relay Locations (Part 1 of 3).:

LH Rear Of Engine Compartment

Applicable to: 1983-84 Starion
