Engine - Sag or Bucking Condition

85mitsubishi03

SUBJECT:

STARION COLD DRIVEABILITY - NON-INTERCOOLED MODELS

NO. STB-85-14-008

DATE November 1985

MODEL 1984, 1985 Starion

PURPOSE This bulletin describes the field installation of a computer modulator and harness for use in correcting a sag or bucking condition when the car's engine is cold.

VEHICLES AFFECTED This information applies to 1984 and 1985 non-intercooled Starions up to the following VINs:

JA3BC54H*FZ415508
JA3BC54H*FZ504590
JA3BC54H*FZ712655
JA3BC54H*FZ803805

FIGURE 1:

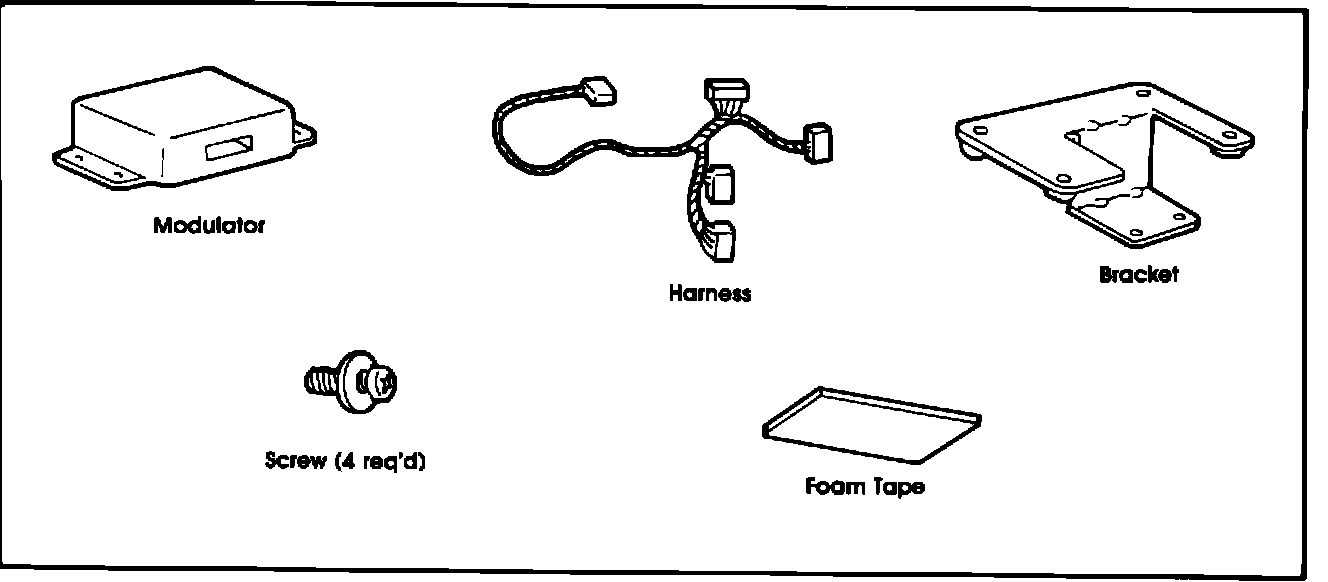

PARTS AVAILABLE A five-piece kit, MD101108, is available. Kit contents are listed below and shown in Fig. 1.

1 - MD099402 Modulator
1 - MD099403 Bracket
4 - MF350790 Screw
1 - MD099789 Harness Ass'y
I - MB031948 Foam Tape 75 x 200 mm

WARRANTY CONSIDERATION
Labor Operation Code: 08 45 72 91
Time allowance: 0.8 hr.

FIGURE 2:

SERVICE PROCEDURE
1. Disconnect the battery.

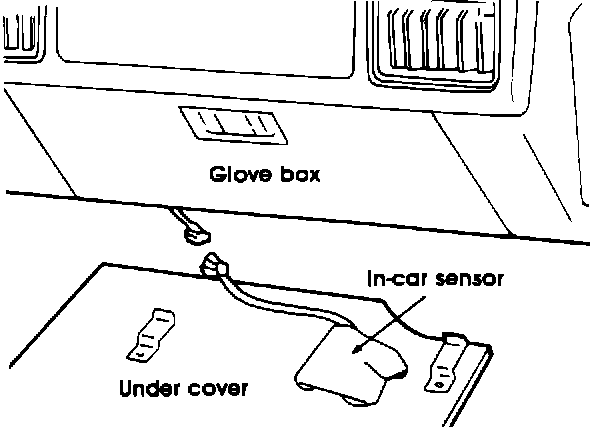

2. Remove the glove box under cover and disconnect the in-car A/C sensor. See Fig. 2.

FIGURE 3:

3. Remove the right side cowl kick panel. Fig. 3.

FIGURE 4:

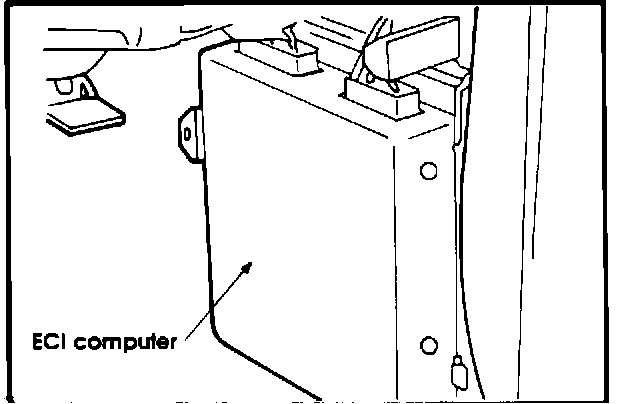

4. Disconnect and remove the ECI computer. Fig. 4.

FIGURE 5:

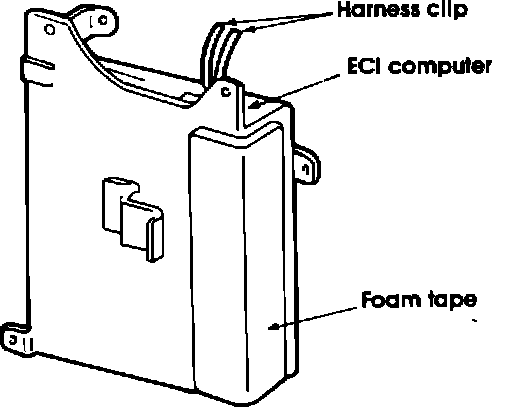

5. Apply the foam tape to the edge of the computer as shown in Fig. 5.

FIGURE 6:

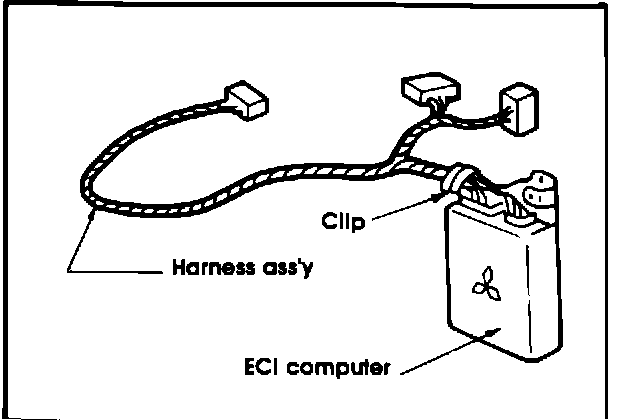

6. Connect the wiring harness assembly from the kit to the computer as shown in Fig. 6.

FIGURE 7:

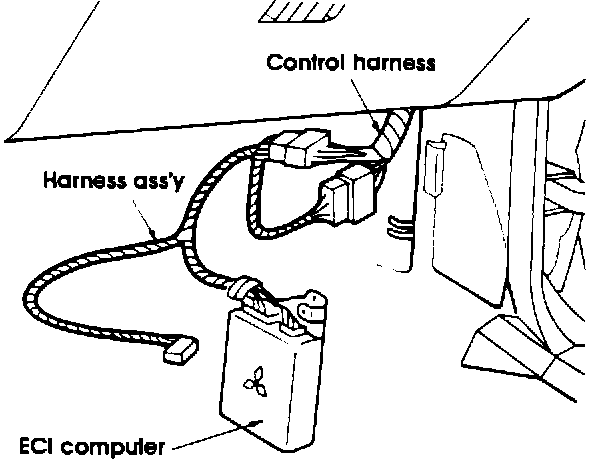

7. Connect the harness ass'y to the control harness as shown in Fig. 7.

FIGURE 8:

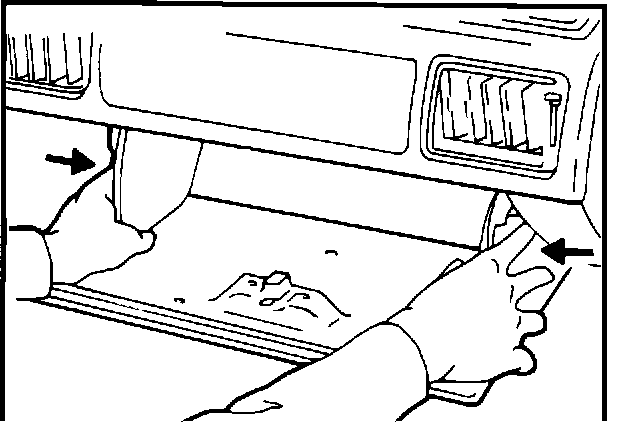

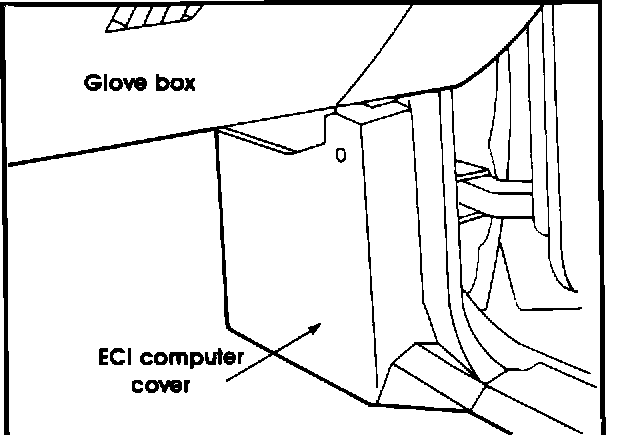

8. Remove the glove box. Fig. 8.

FIGURE 9:

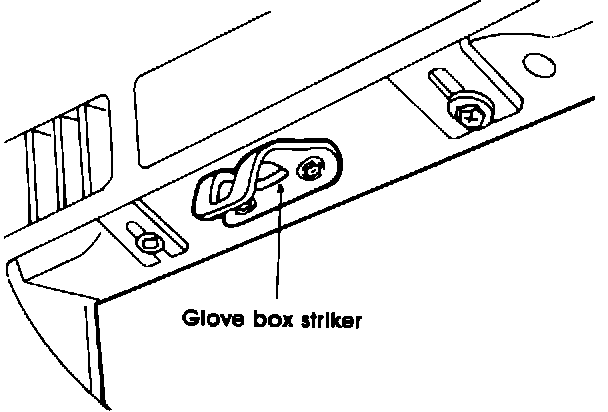

9. Remove the glove box striker, Fig. 9.

Figure 10:

10. Reinstall the computer, and arrange the harness as shown in Fig. 10.

FIGURE 11:

NOTE: When reinstalling the computer, be sure it clears the harness and does not pinch it. See Fig. 11.

Figure 10:

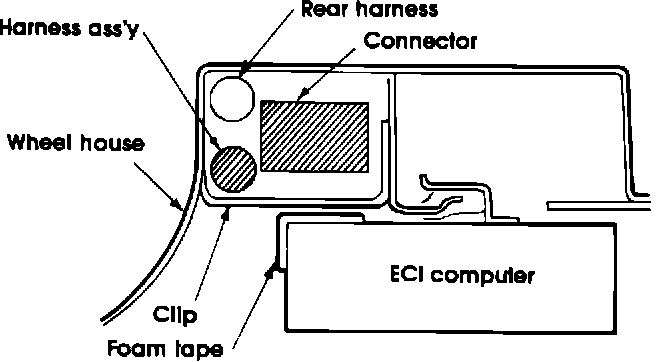

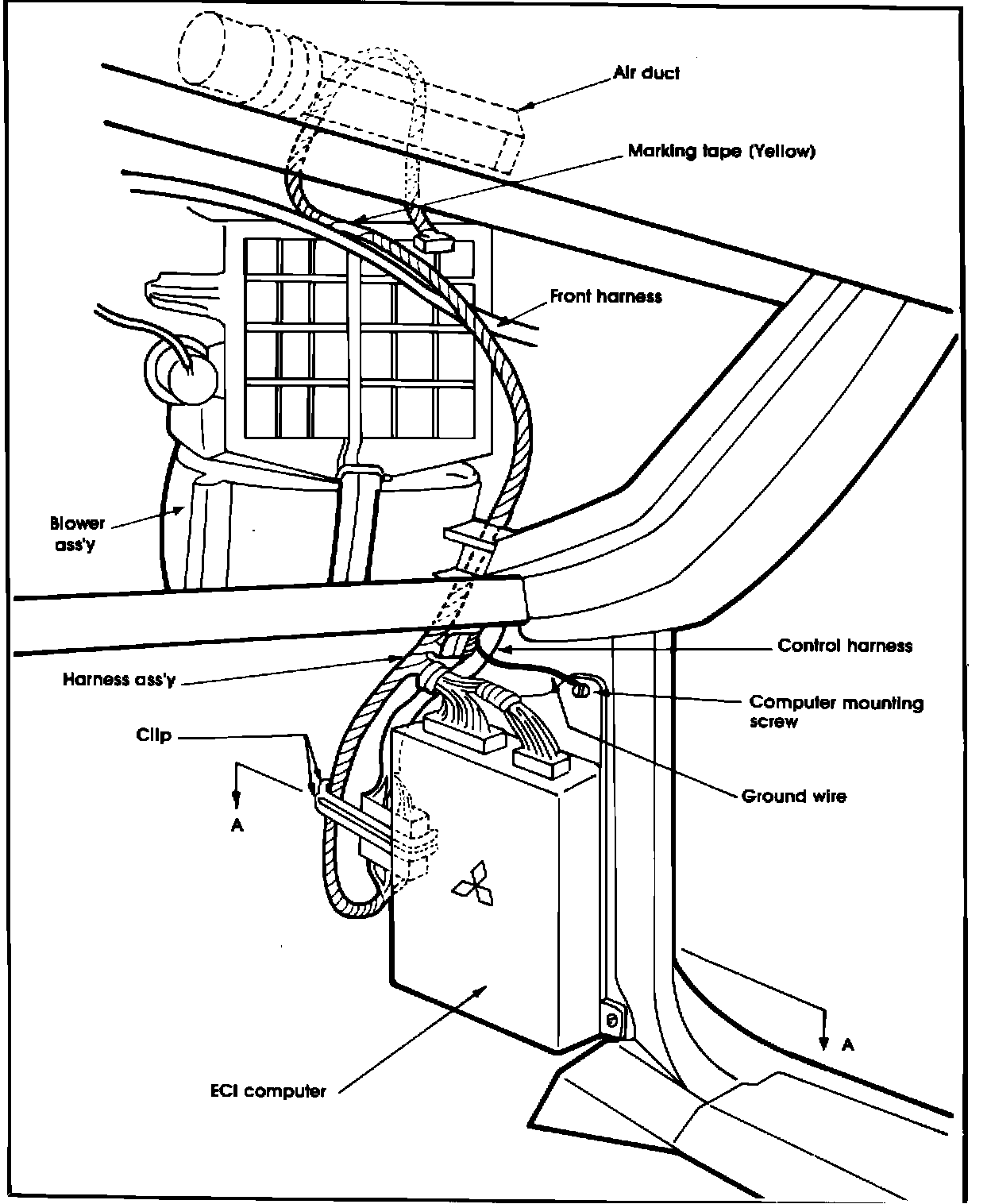

NOTE: Clip the harness to the front harness at the point marked by yellow tape, and route the harness over the air duct to support it as in Fig. 10. Connect the ground wire to the computer mounting screw.

FIGURE 12:

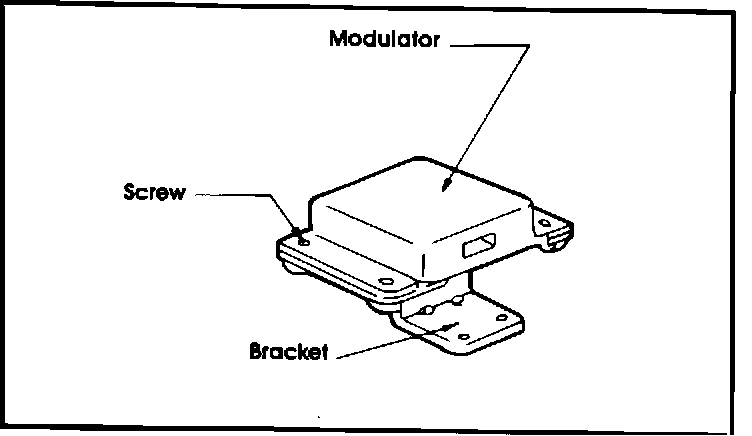

11. Secure the modulator to the bracket with four screws. See Fig. 12.

FIGURE 13:

12. Connect the modulator to the harness as shown in Fig. 13.

FIGURE 14:

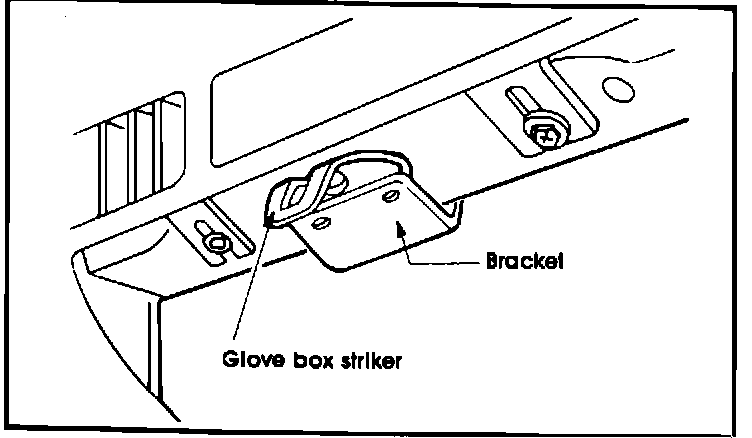

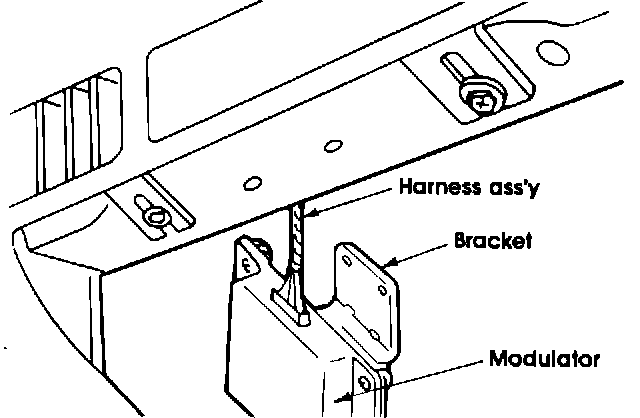

13. Attach the bracket together with the glove box striker as in Fig. 14.
14. Reconnect and reinstall components removed earlier, start the engine and confirm that the condition is corrected.
