Component Tests and General Diagnostics

Fig. 20 Carburetor control unit terminal location.:

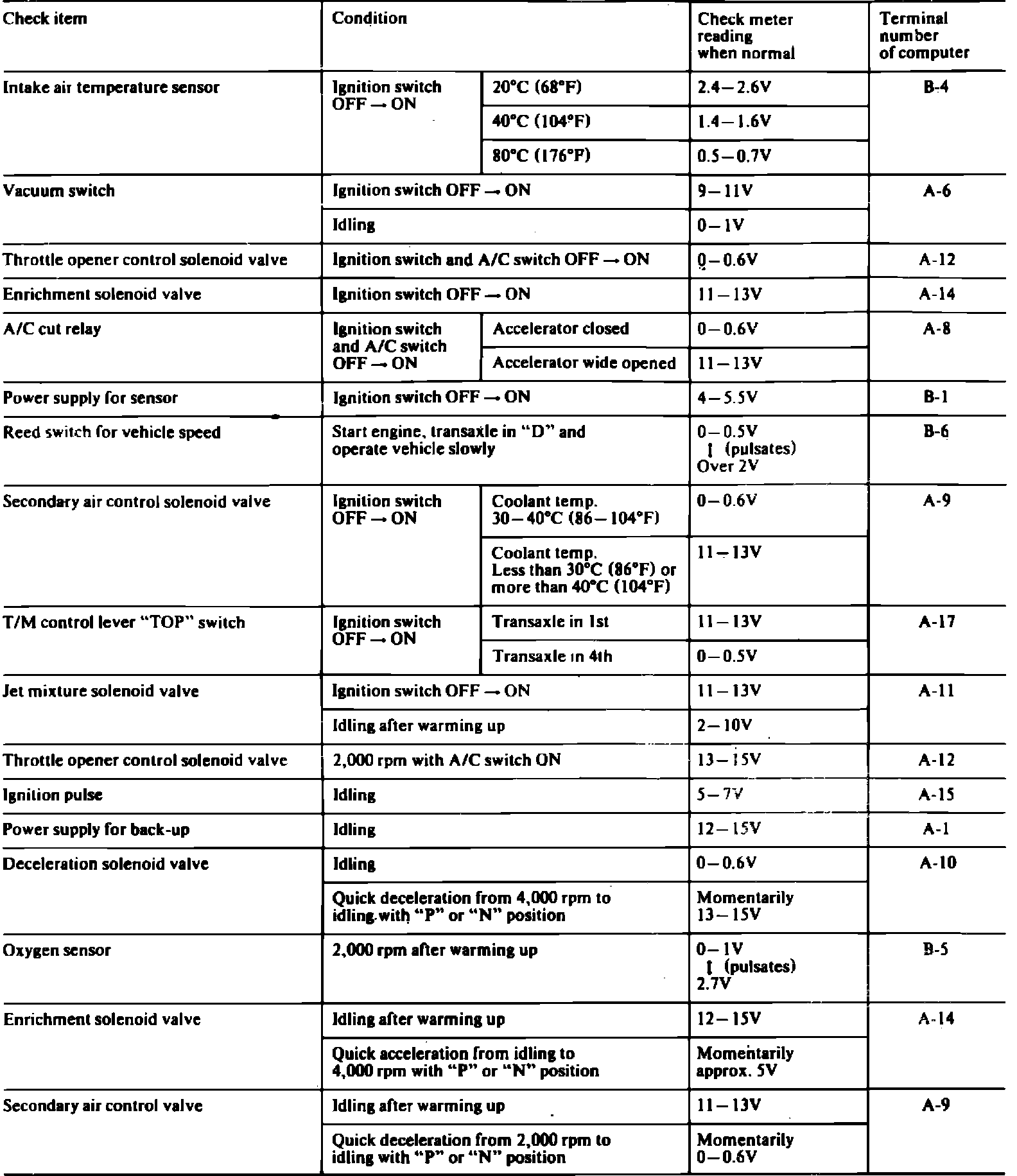

Fig. 29a Electronic feedback carburetor system diagnosis chart .:

Fig. 29b Electronic feedback carburetor system diagnosis chart .:

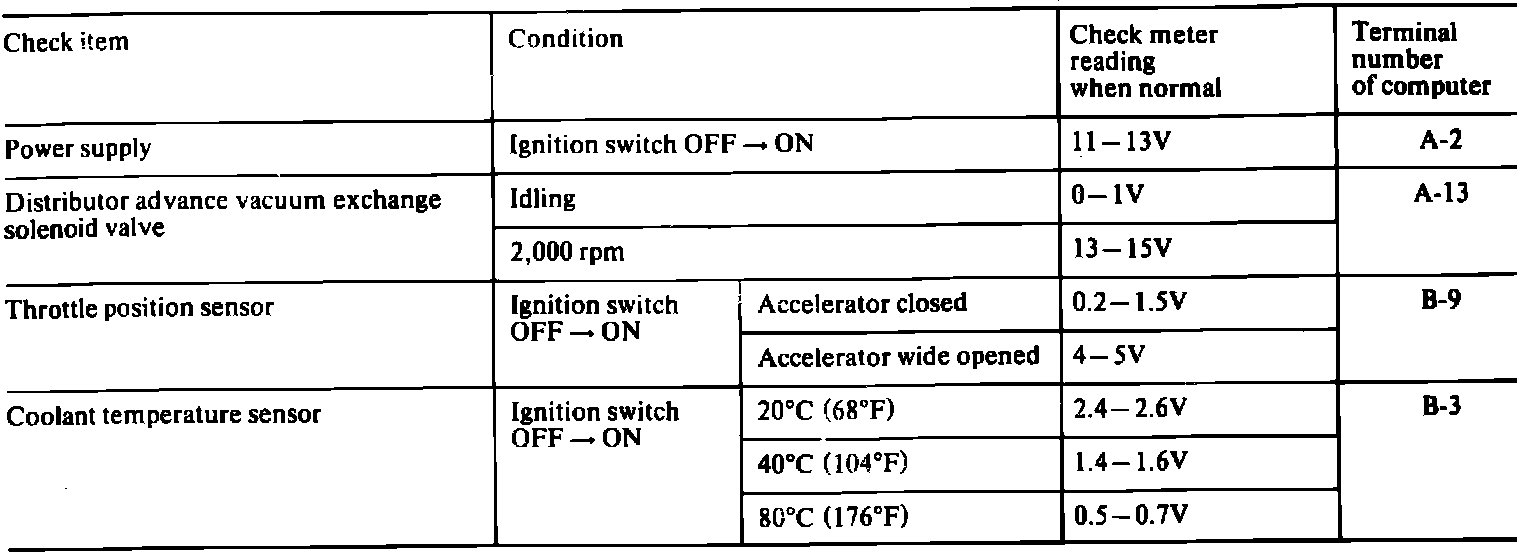

Fig. 30a Electronic feedback carburetor system diagnosis chart .:

Fig. 30b Electronic feedback carburetor system diagnosis chart .:
