Component Tests and General Diagnostics

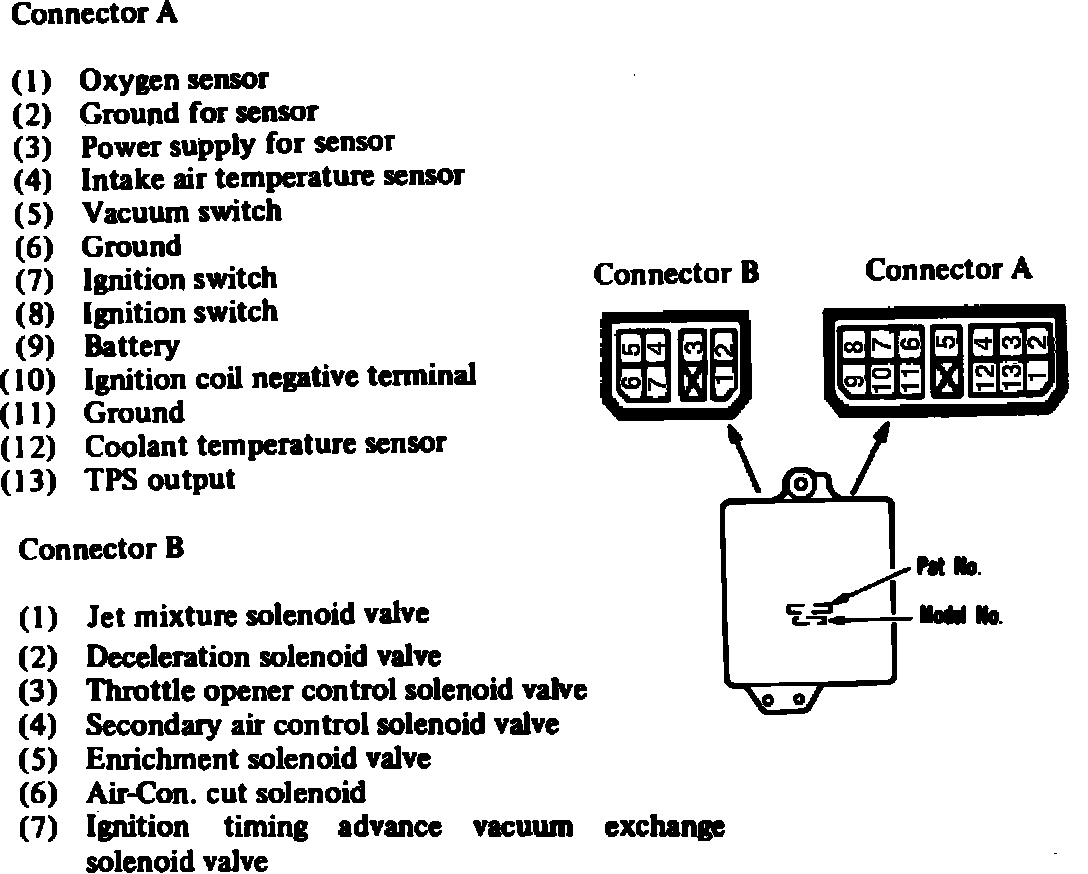

Fig. 23 Carburetor control unit terminal location.:

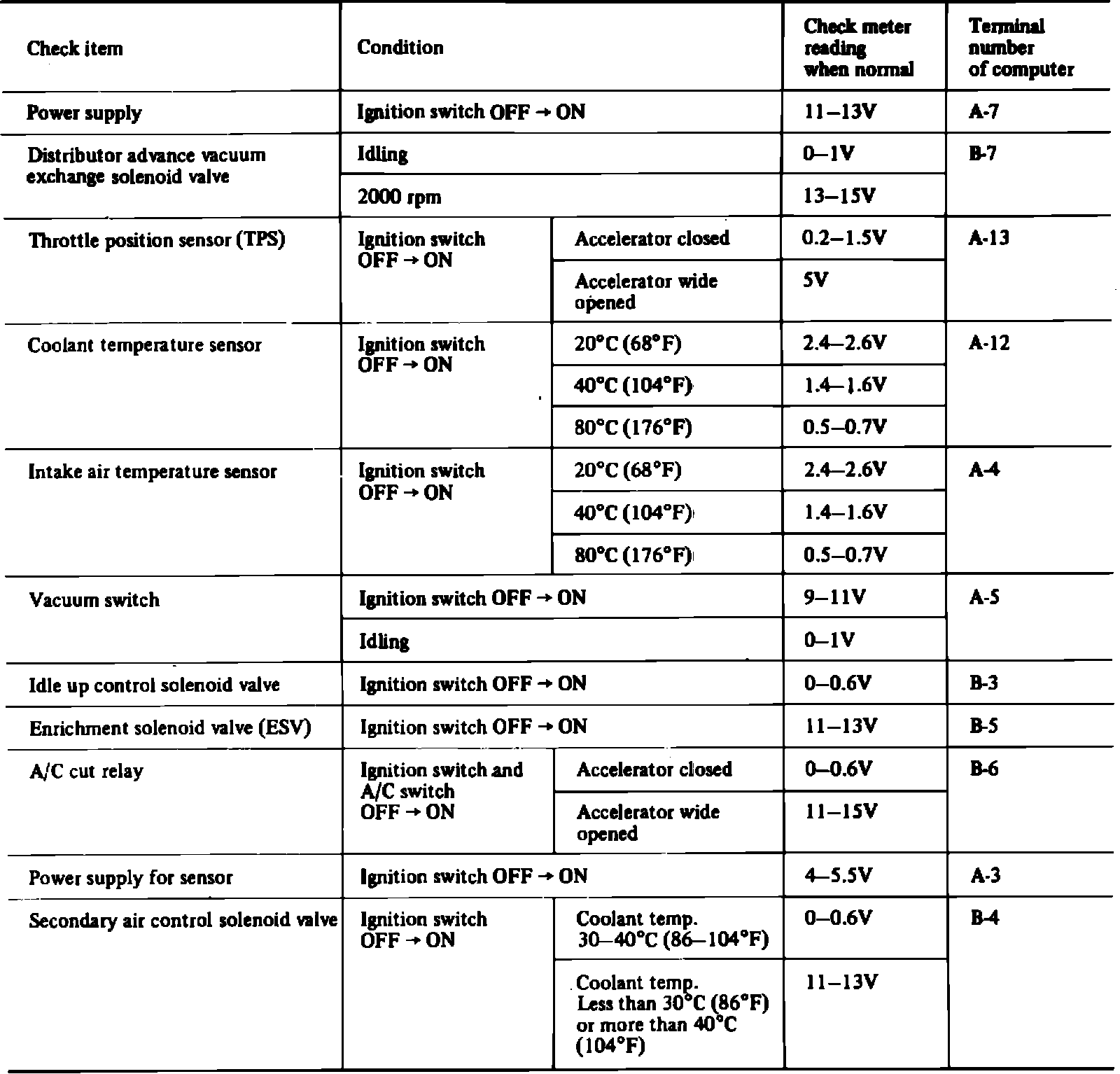

Fig. 32a Electronic feedback carburetor system diagnosis chart .:

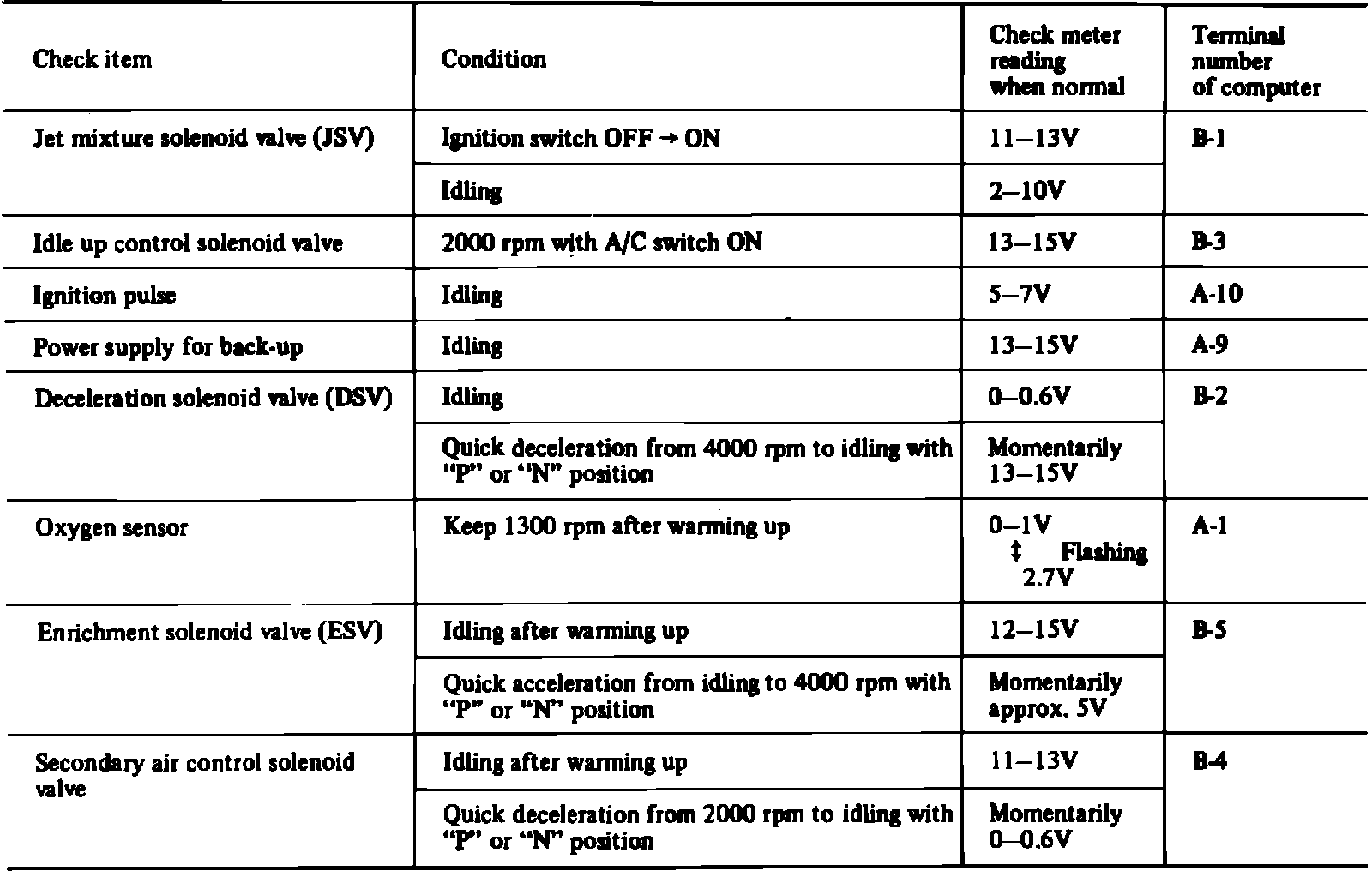

Fig. 32b Electronic feedback carburetor system diagnosis chart .:
