Home >> Mitsubishi >> 1985 >> Pickup 2WD L4-2.0L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Service Specifications

Service Specifications

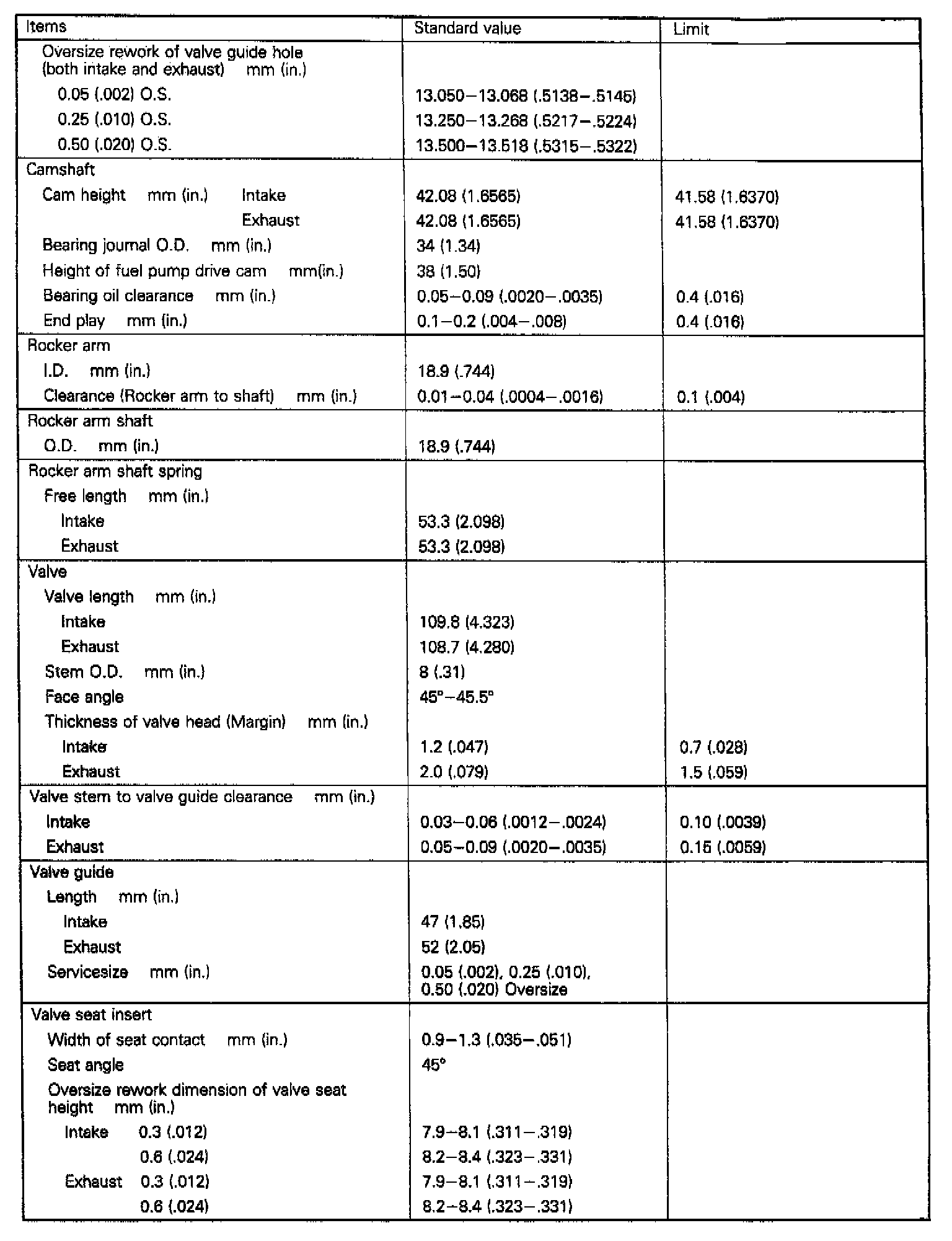

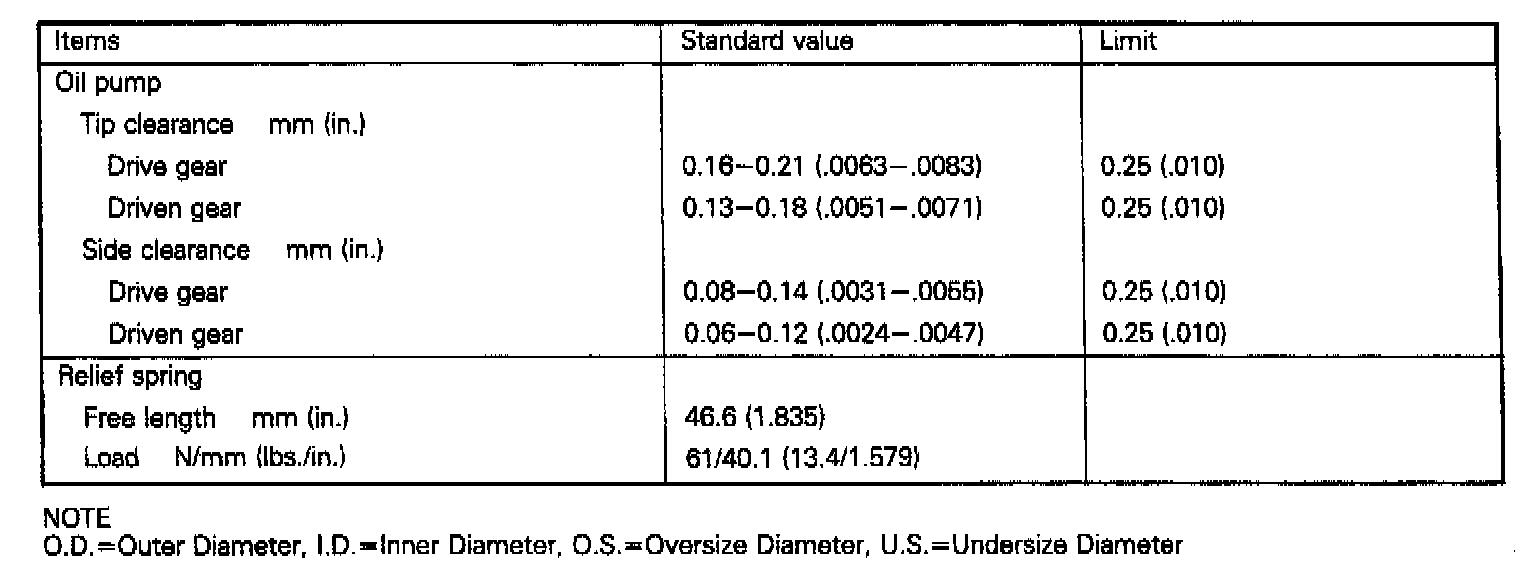

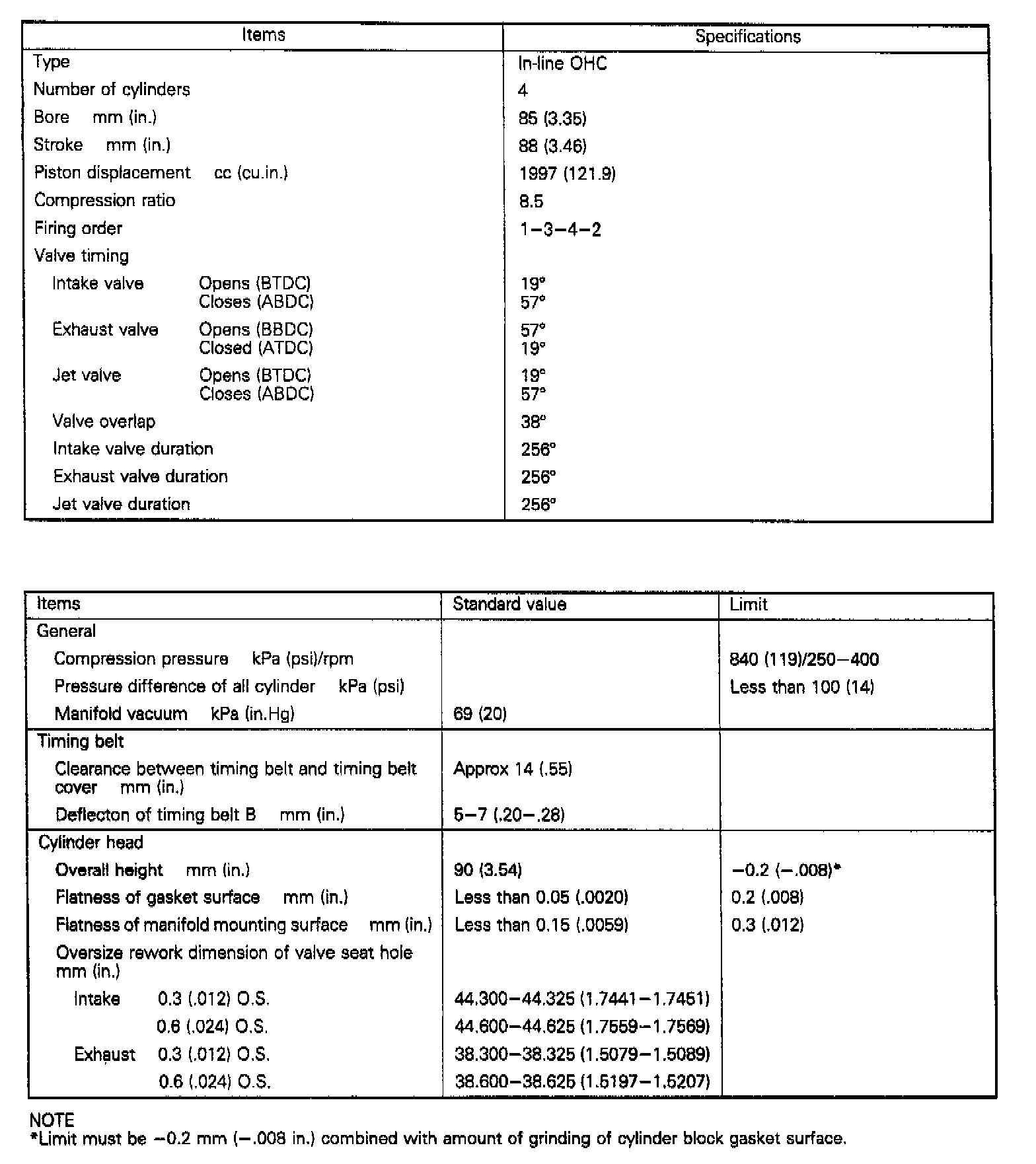

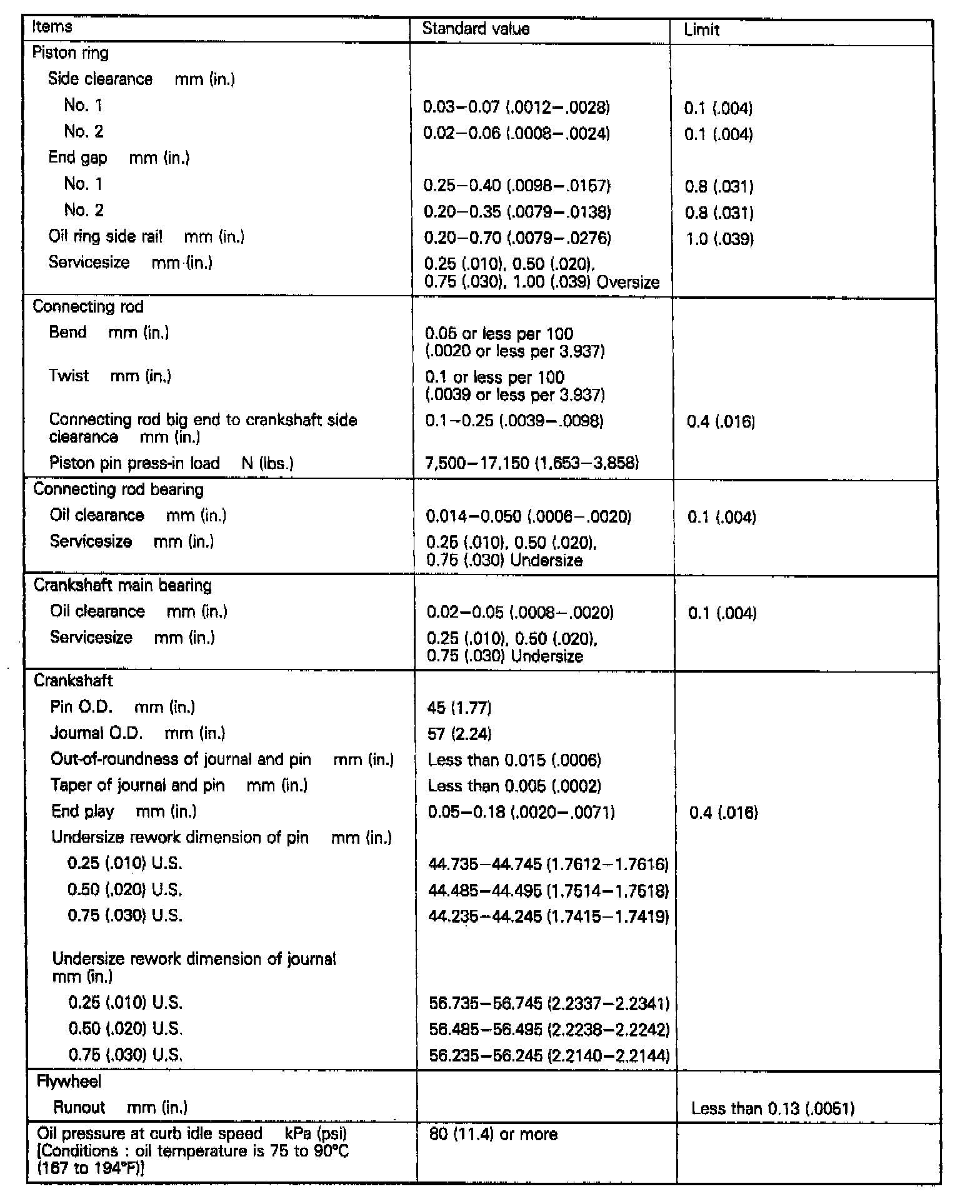

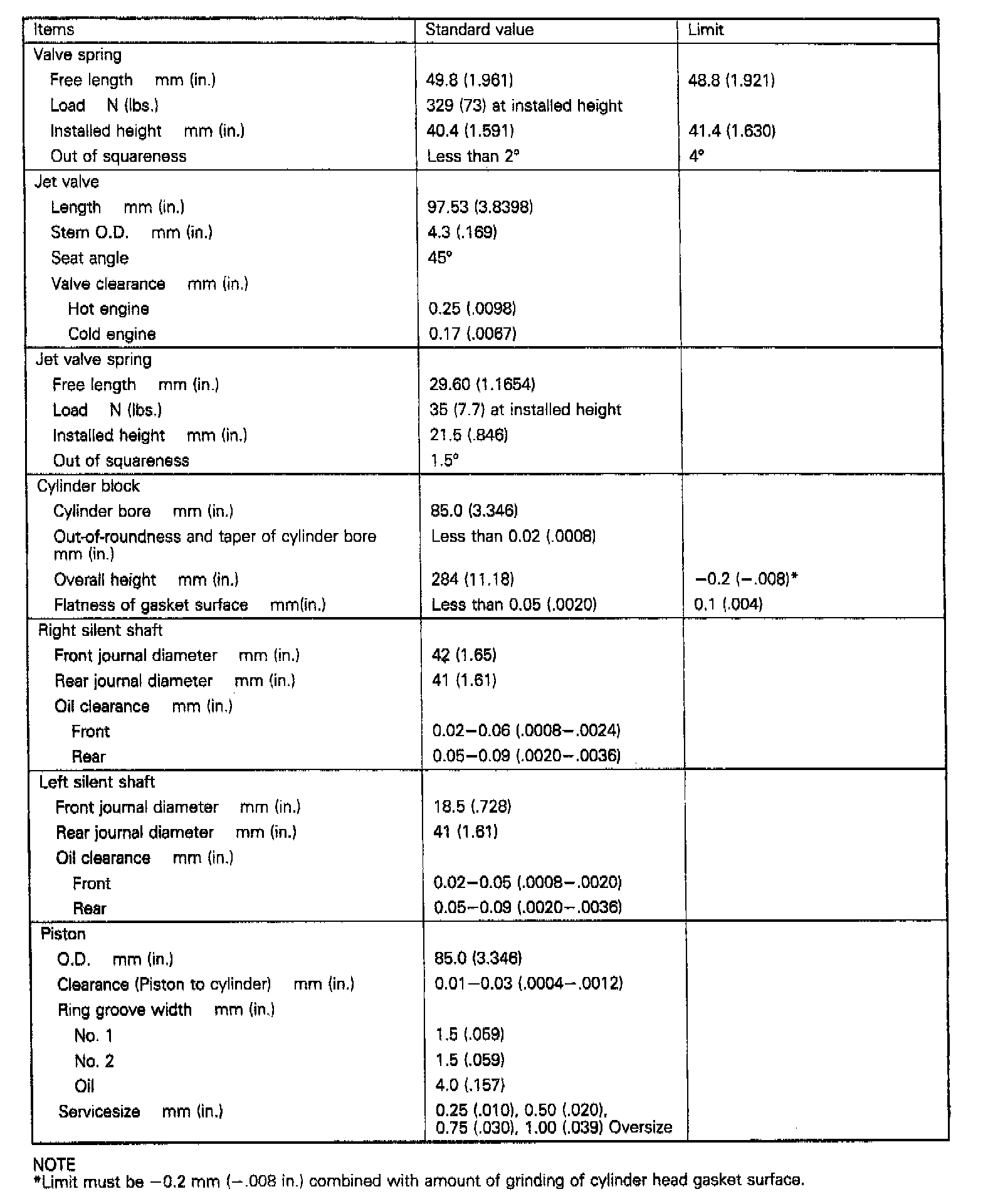

ENGINE SPECIFICATIONS

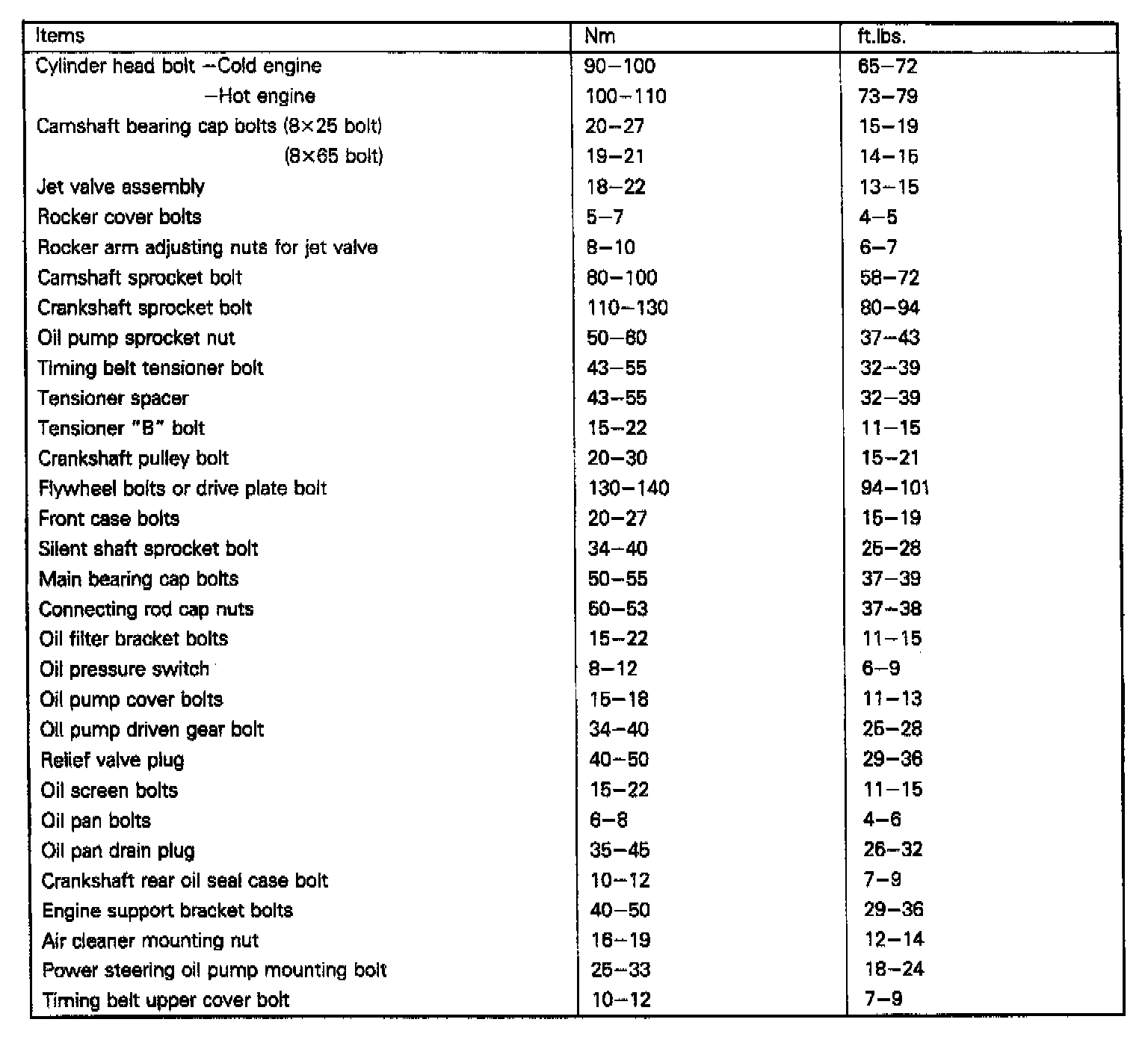

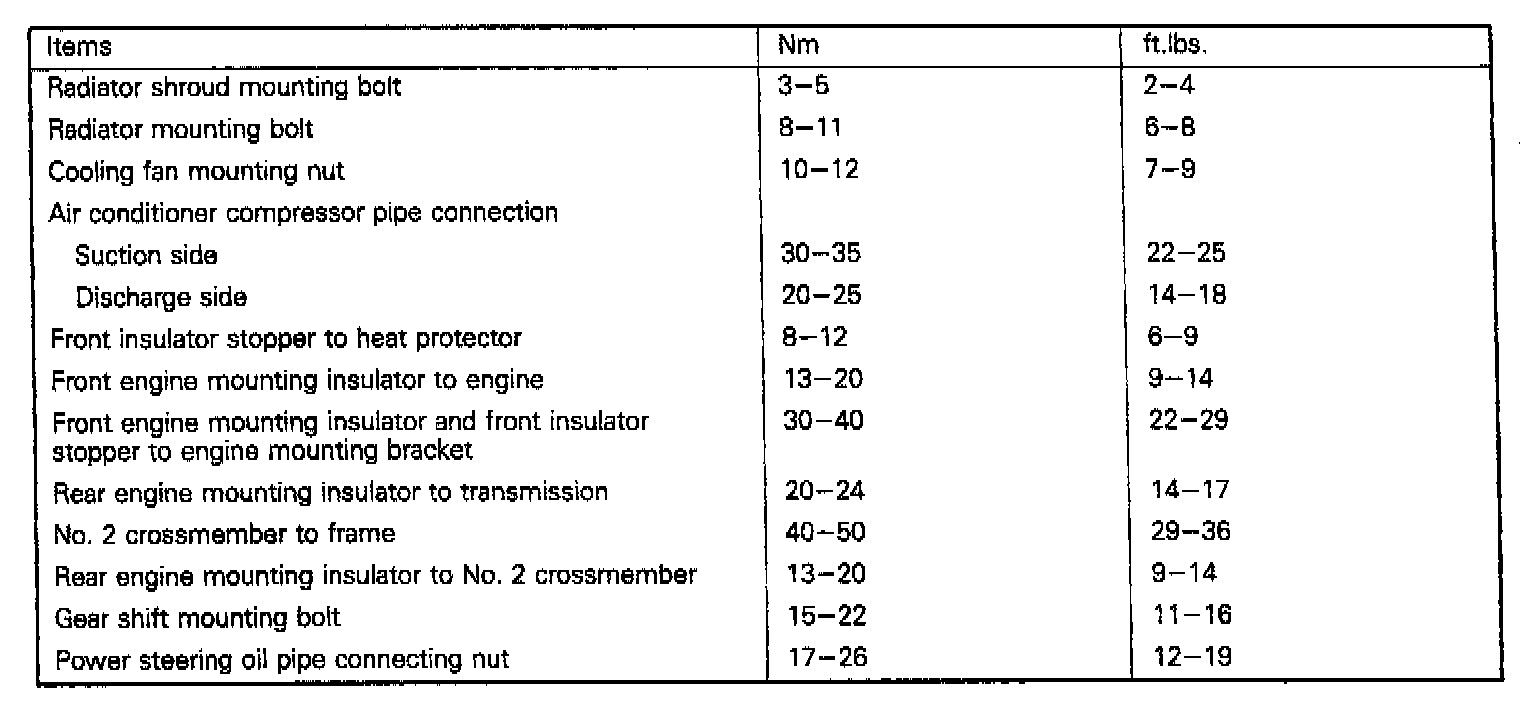

TIGHTENING SPECIFICATIONS

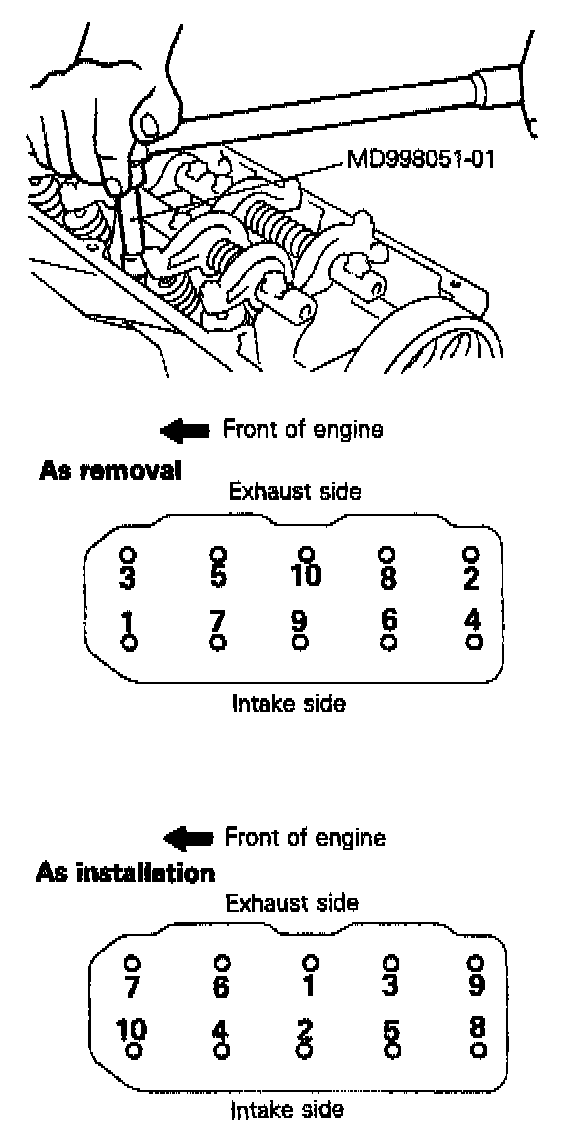

CYLINDER HEAD TIGHTENING SEQUENCE
