Caster

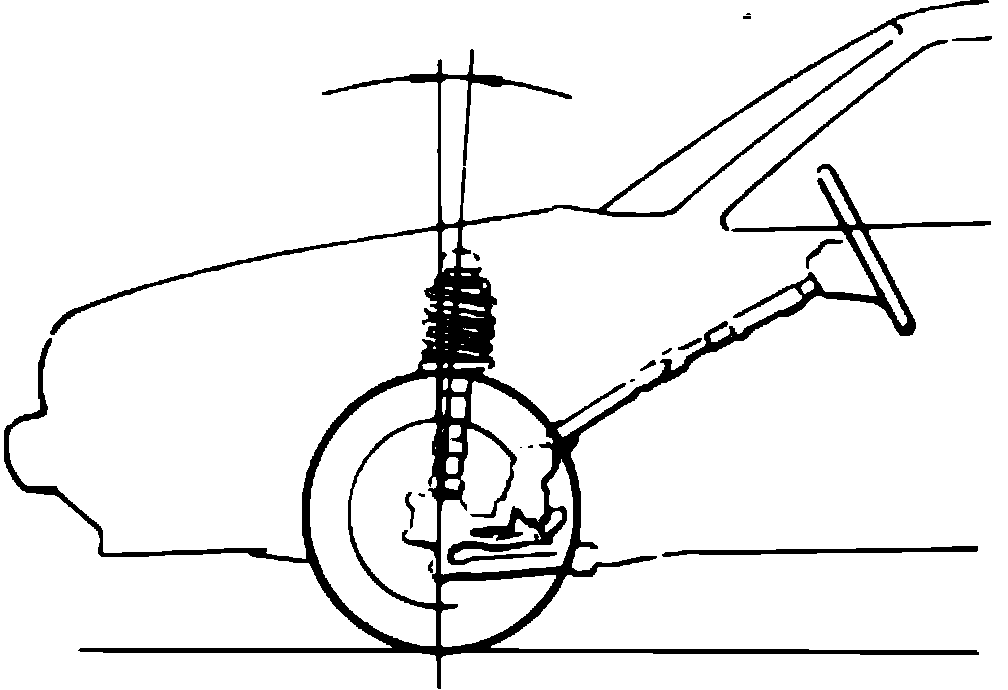

Fig. 3 Caster setting:

DESCRIPTION

Caster angle refers to the angle at which the wheel center deviates from vertical when viewed from the side, Fig. 3.




ADJUSTMENT




Adjustment of caster on these vehicles is made by turning the eccentrics on upper arm shaft. A half turn of upper arm shaft will cause .049 in. fore or aft movement of upper arm shaft, resulting in approximately 16 minutes adjustment of caster.
