Intermediate Harness Installation Check

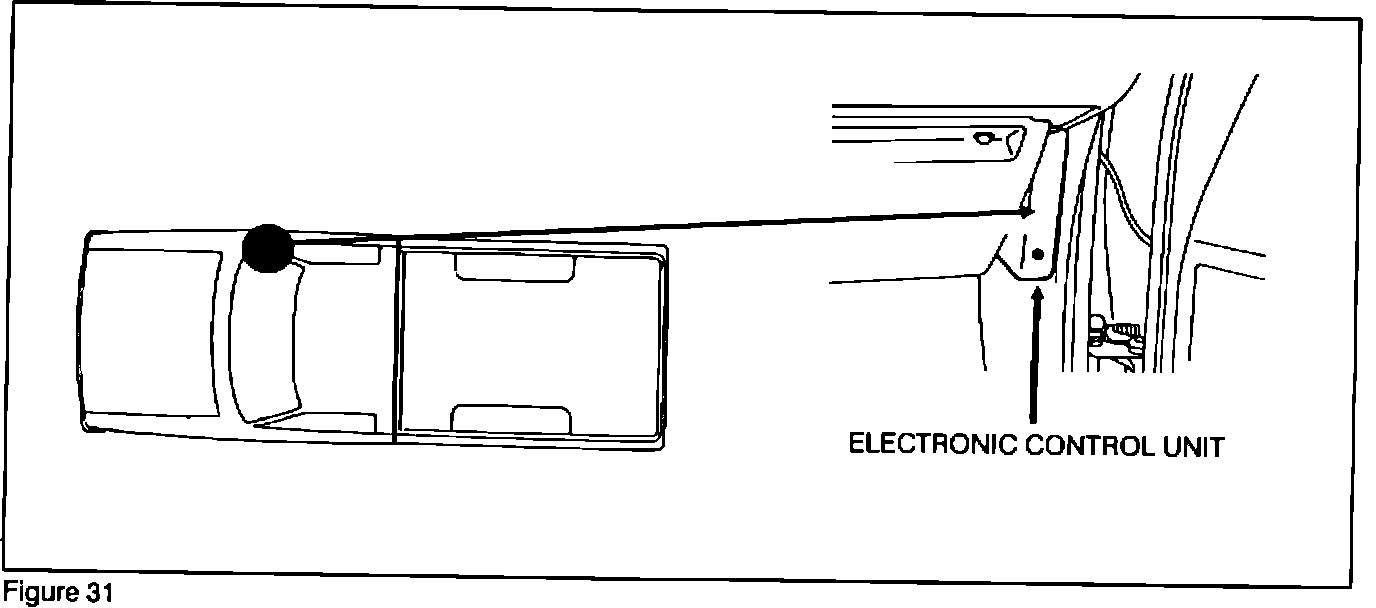

1. Locate the Electronic Control Unit (Figure 31). Remove the passenger side under dash cover and the glove box.

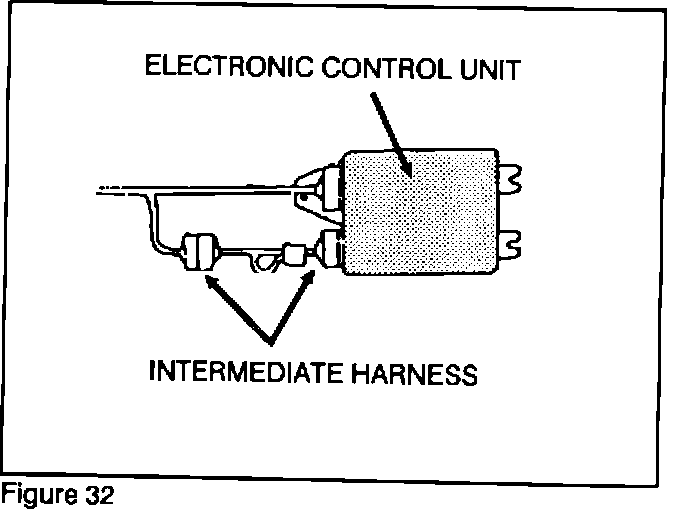

2. Check the installation of an intermediate harness at the Electronic Control Unit. Figure 32.

3. If no harness is found, install the intermediate harness contained in the EMR-90-003 emission kit.
