Intermediate Harness Installation

1. Turn on the radio and write down the radio station presets.

2. Disconnect the negative battery cable at the battery.

3. Disconnect the smaller of the two connectors at the Electronic Control Unit.

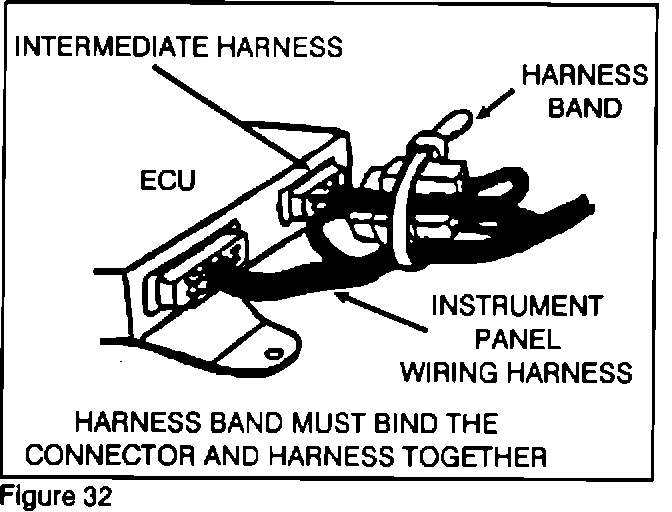

4. Install the Intermediate harness to Electronic Control Unit (Figure 32).





5. Bind the connector and harness together (Figure 32).

Note:
The harness band must bind the connector and harness together.

6. Reconnect the negative battery cable.

7. Reset the radio station presets and clock.
