Previous Recall Completion Check

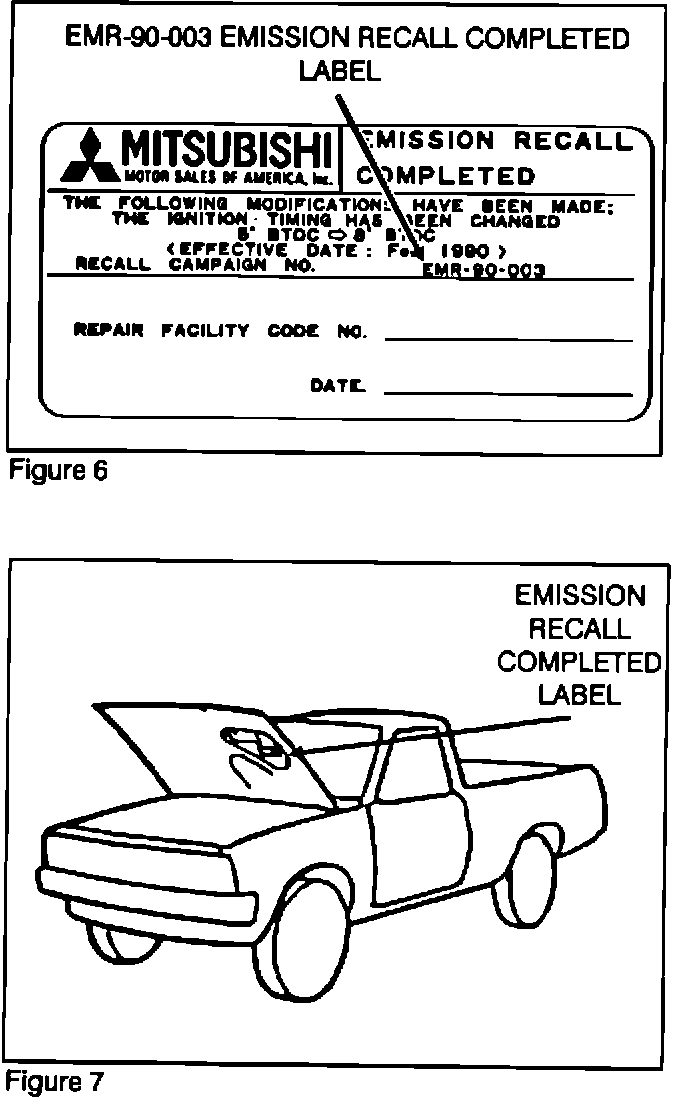

1. Open the hood. Look for the previous Emission Recall Completed label

- EMR-90-003 - (Figure 6) on the hood as shown in Figure 7.

2. If the EMR-90-003 Emission Recall Completed label IS found, proceed to the next page.

3. If the EMR-90-003 Emission Recall Completed Label IS NOT found, the previous recall was not performed. You MUST perform the EMR-90-003 repair procedures with the following changes:

a. When the exhaust manifold is inspected, install the front catalytic converter which is contained in the EMR-92-007 emission kit. The procedure is shown on Page 8 of this bulletin.

b. Replace the Jet Mixture Solenoid Valve (contained in the EMR-92-007 emission kit). The procedure is shown on Page 15 of this bulletin.

CAUTION:
Do not over-tighten the Jet Mixture Solenoid Valve.

c. Disregard the Carburetor Feedback Testing steps.

d. After adjusting the basic engine timing, verify the CO level at the tailpipe. The procedure is shown on Page 19 of this bulletin.

e. Proceed to the EMR-92-007 Emission Recall Completed Label instruction.


f. Complete and sign EMR-92-007 emission checklist.
