Materials and Special Tools Required

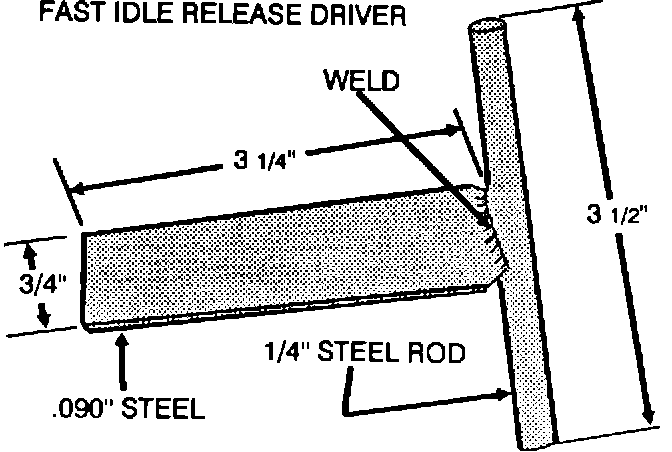

Figure 1:

* Fast Idle Release Driver (Special tool was included with bulletin EMR-89-001. In the event that the tool was misplaced, see Figure 1 for make up specifications.)

* Digital Volt Ohm Meter.

* Exhaust Emission Analyzer.

* Timing light.

* Tachometer.

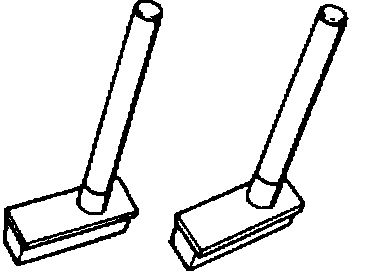

Figure 2:

* MIT209769 - Carburetor aligning pins (Figure 2).

* Anti-seize compound.

* Carburetor spray cleaner.
