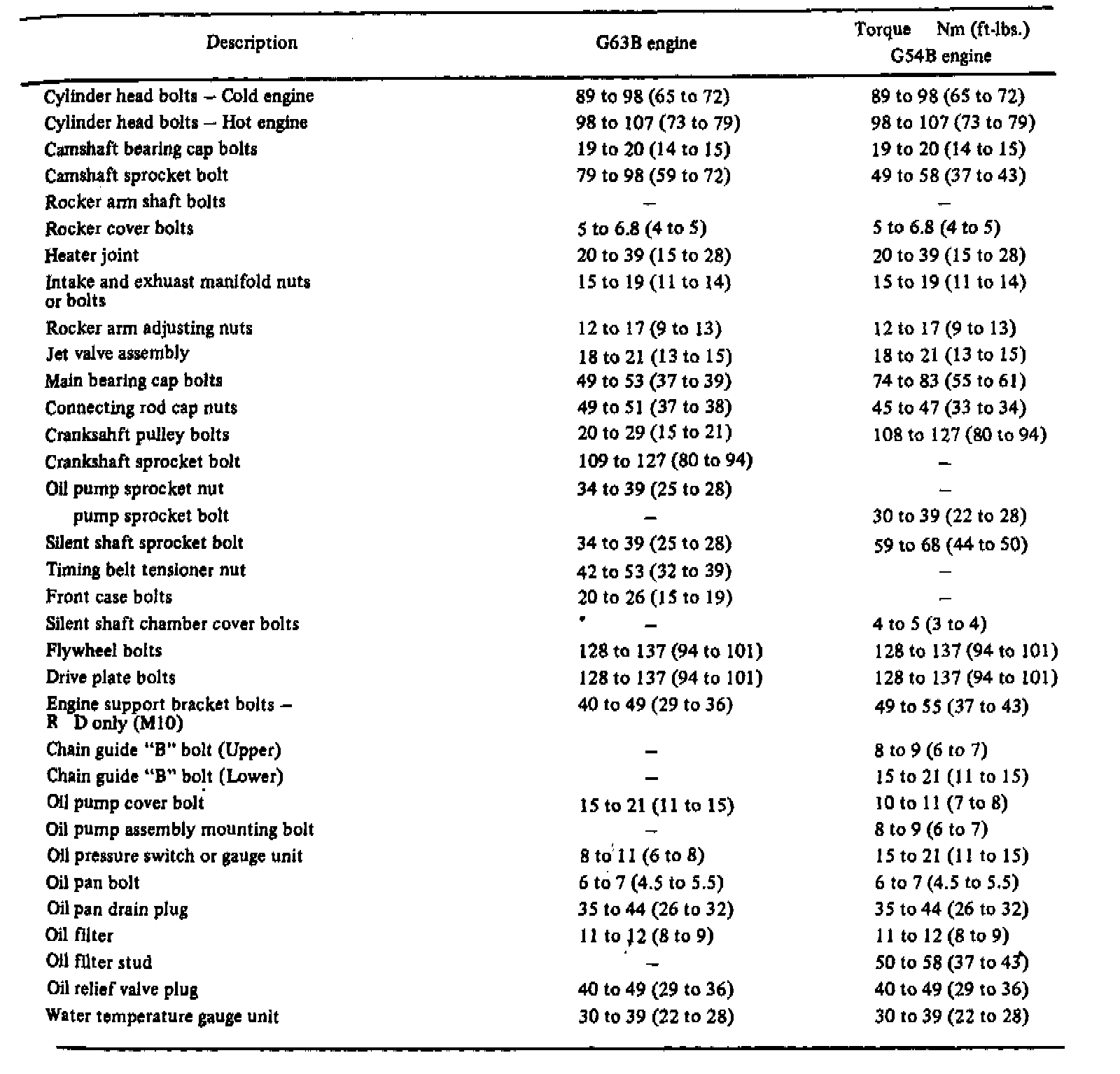

Torque Specifications






Cylinder Head Bolt Removal Sequence - 2.0 (G63B) Engine:




Cylinder Head Bolt Torque Sequence - 2.0 (G63B) Engine:




Cylinder Head Bolt Removal Sequence - 2.6 (G54B) Engine:




Cylinder Head Bolt Torque Sequence - 2.6 (G54B) Engine:
