Engine Speed Sensor: Locations

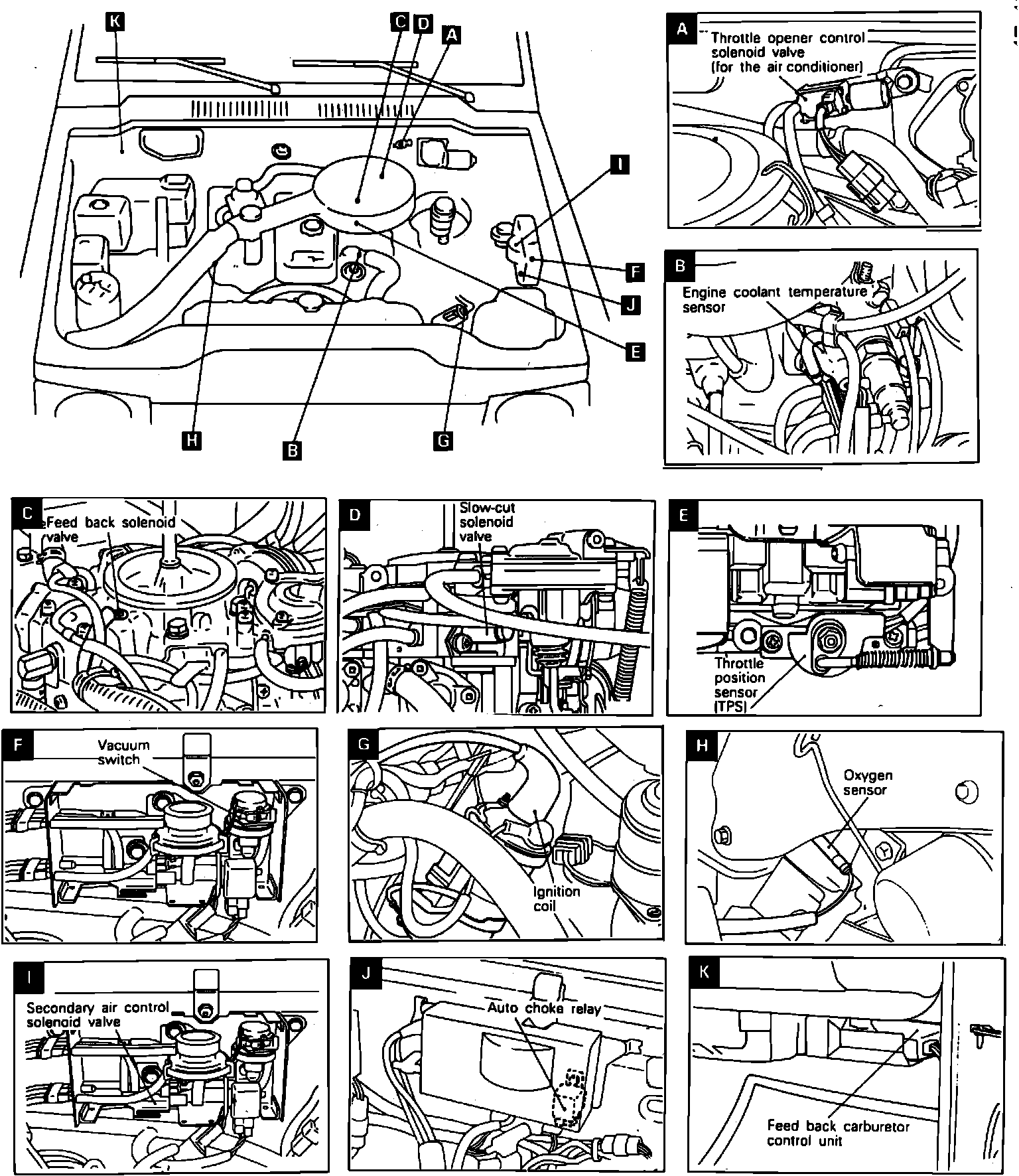

FBC Component Location (Part 1 Of 2).:





LH Side Of Engine

Applicable to: Montero
