FBC System - Description Correction

87mitsubishi01

SUBJECT:
FBC SYSTEM DESCRIPTION CORRECTIONSERVICE MANUAL UPDATE

NO. STB-87-14-014
DATE September, 1987


MODEL 1987 Truck & Montero




STB Revision STB-87-14-014

PURPOSE

The 1987 Truck and Montero Service Manuals contain an incorrect diagram of the Throttle Opener System For Air Conditioning in the FBC System Section. The diagram incorrectly shows the Throttle Opener System For Electrical Load instead of the Throttle Opener System For Air Conditioning. Shown below is the correct diagram of the Throttle Opener System For Air Conditioning, As reference to this bulletin, write the STB number in the revision box and cross out the incorrect diagram on the following pages:

SERVICE MANUAL PAGE NUMBER
1987 Truck, Vol. 1 . . . . . . . . . . . . . . . .14-11
1987 Montero, Vol. 1 . . . . . . . . . . . . . . .14-14

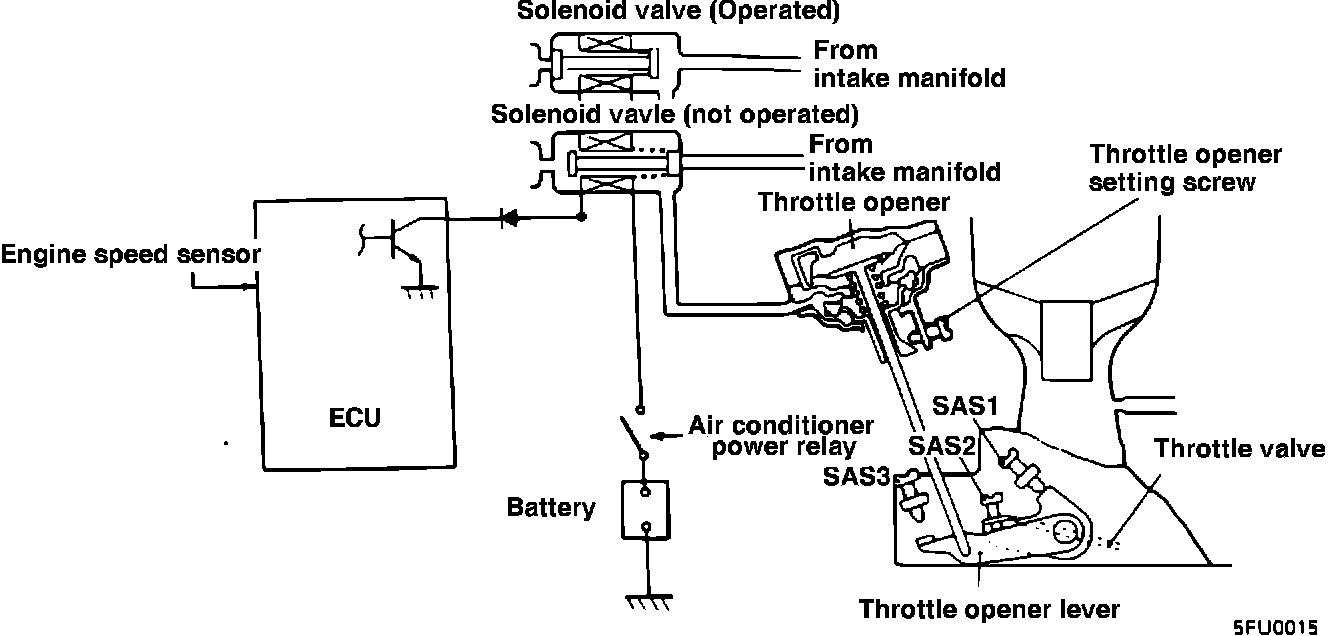

THROTTLE OPENER SYSTEM FOR AIR CONDITIONING
