Component Tests and General Diagnostics

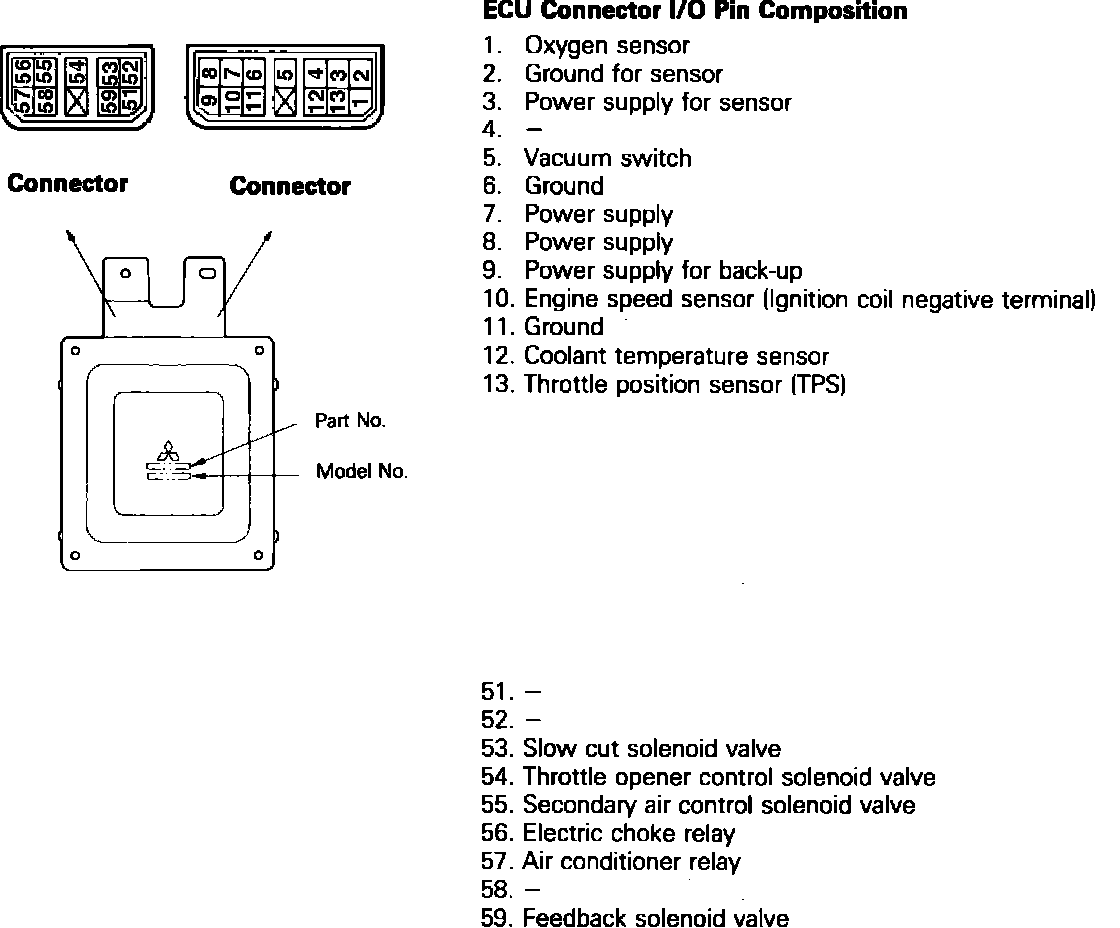

Fig. 28 Carburetor control unit terminal location.:

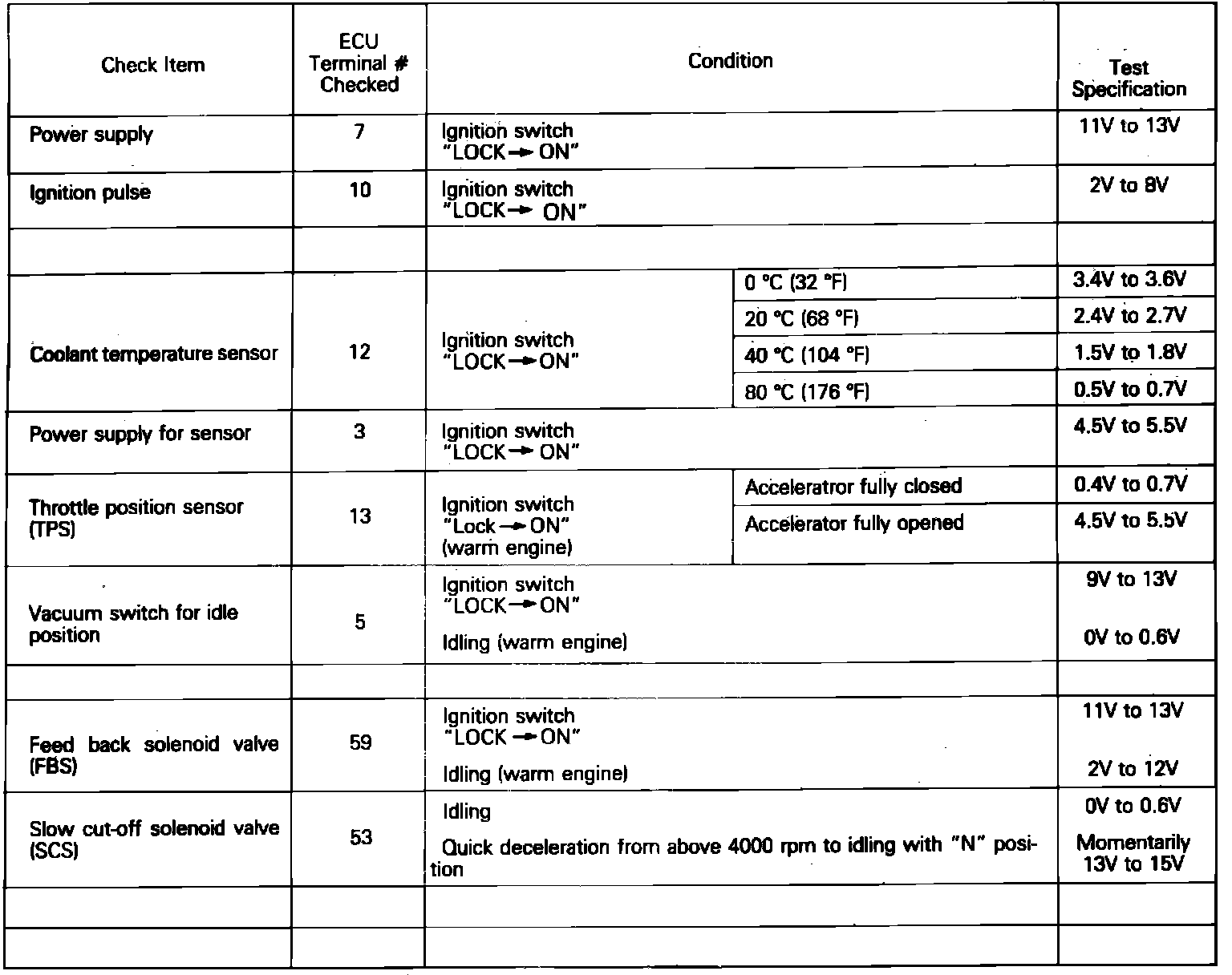

Fig. 40a Electronic feedback carburetor system diagnosis chart .:

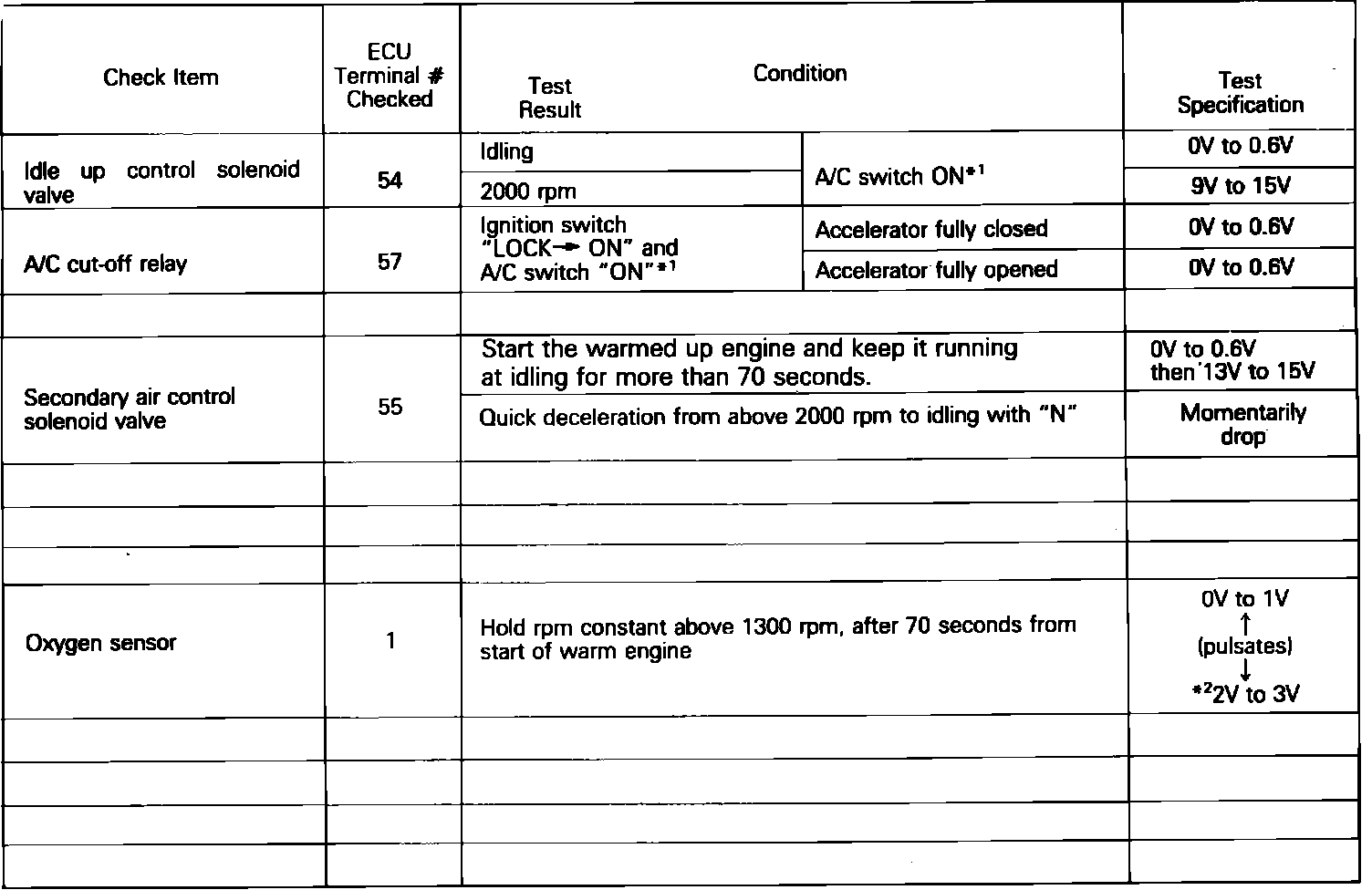

Fig. 40b Electronic feedback carburetor system diagnosis chart .:
