Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1987
>>
Tredia L4-2.0L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
Ignition System: Diagrams

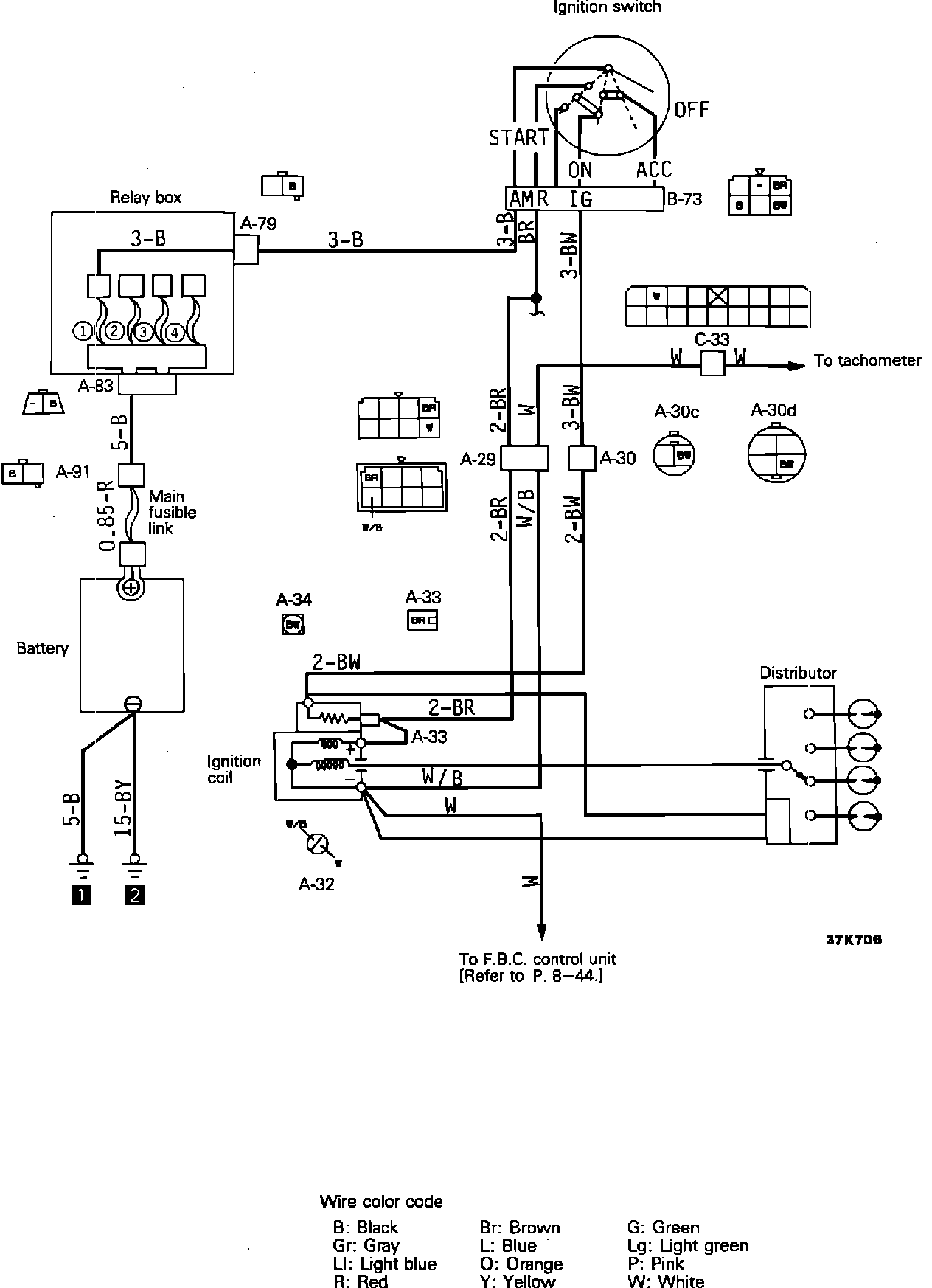

Circuit Diagram:
