Service Specifications

SPECIFICATIONS AND SERVICE DATA

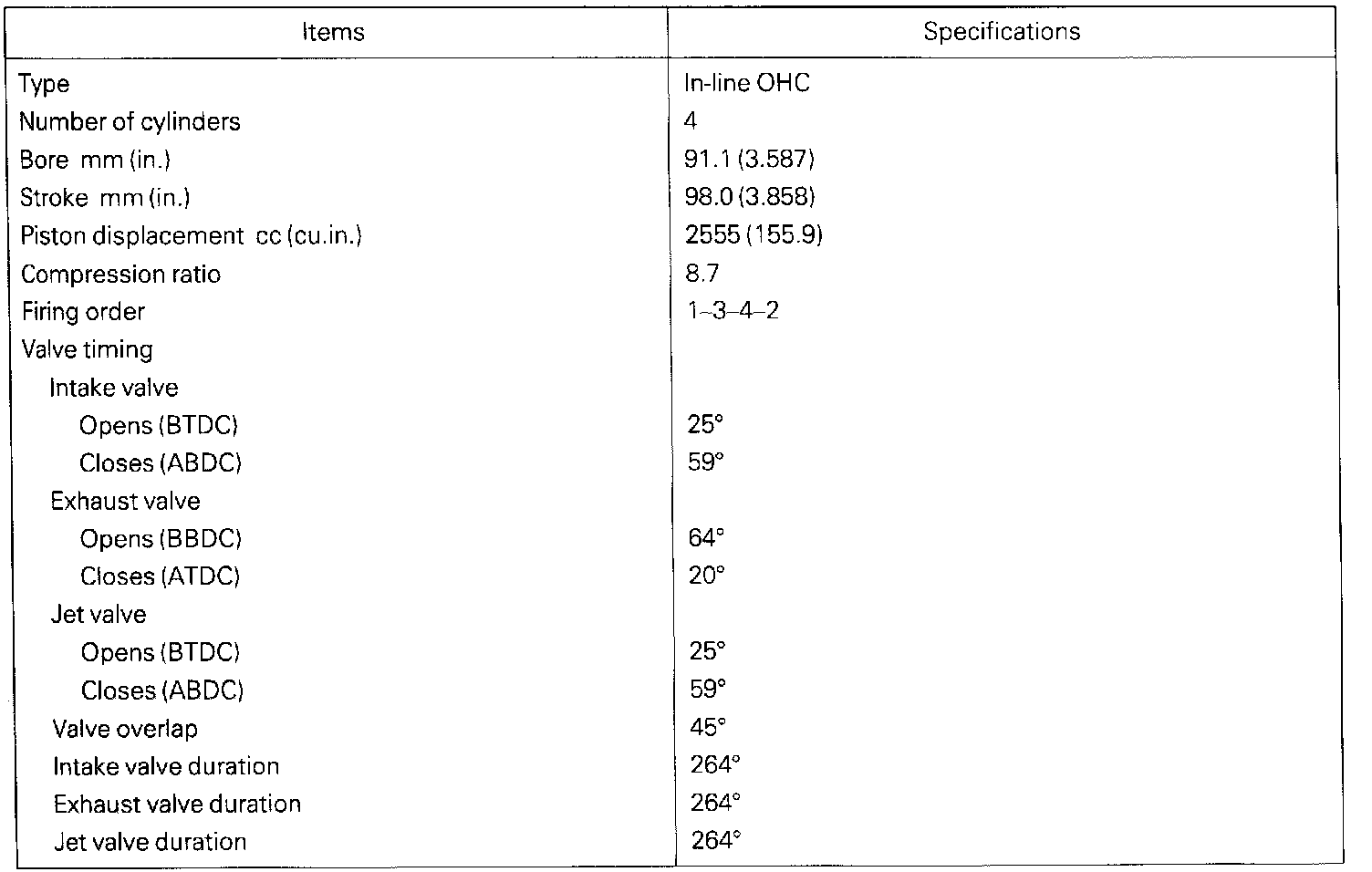

Engine Specifications

1 Of 5:

2 Of 5:

3 Of 5:

4 Of 5:

5 Of 5:

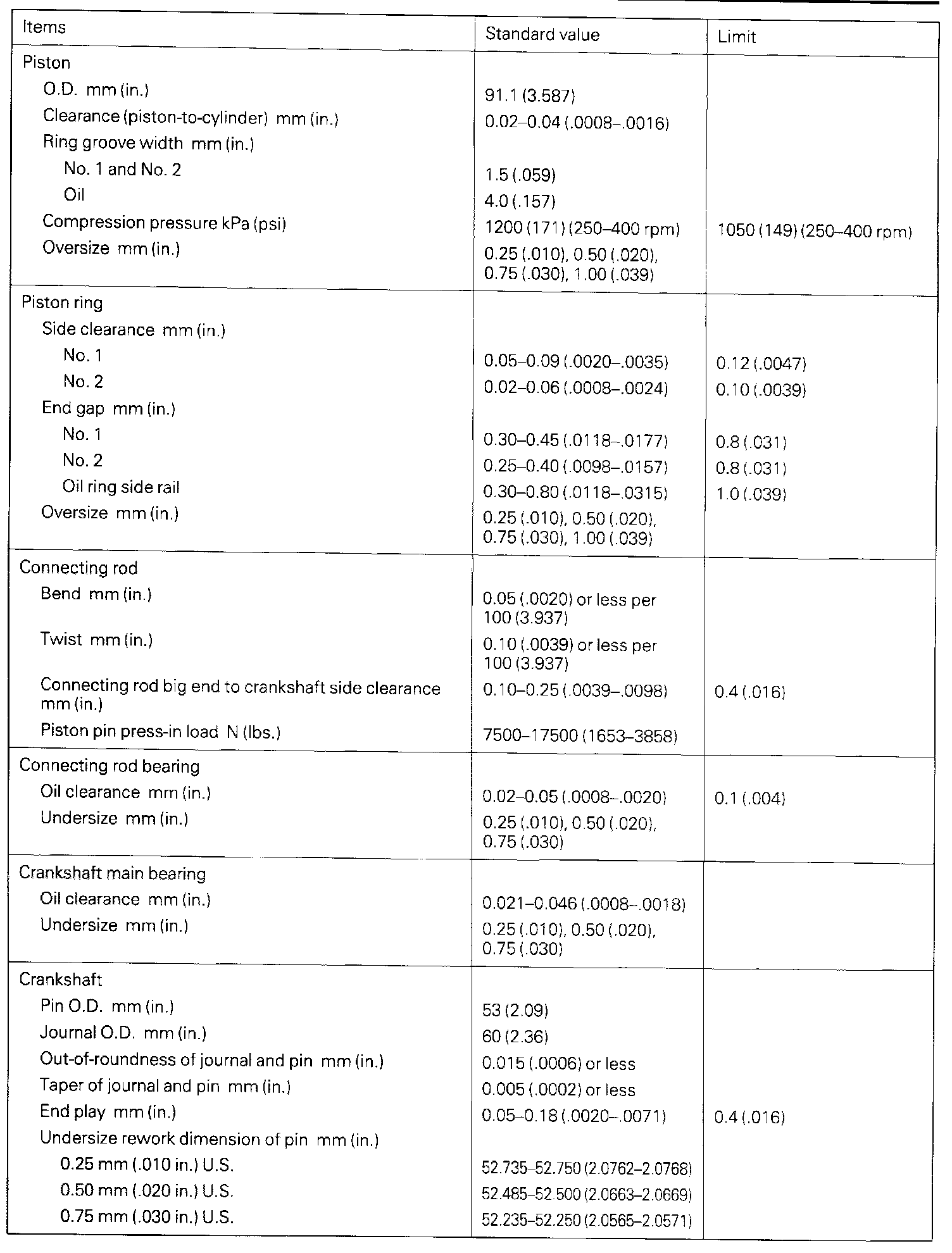

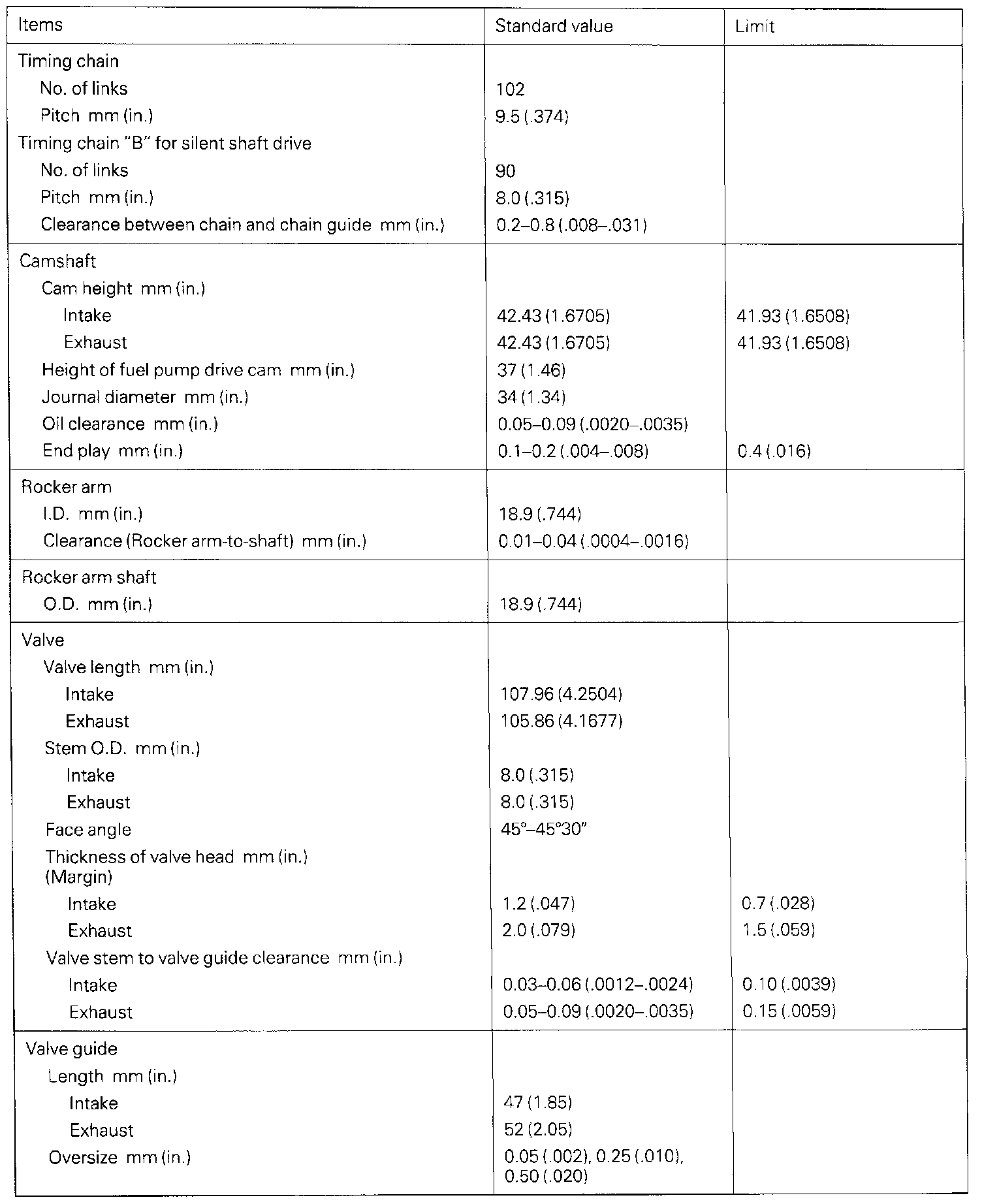

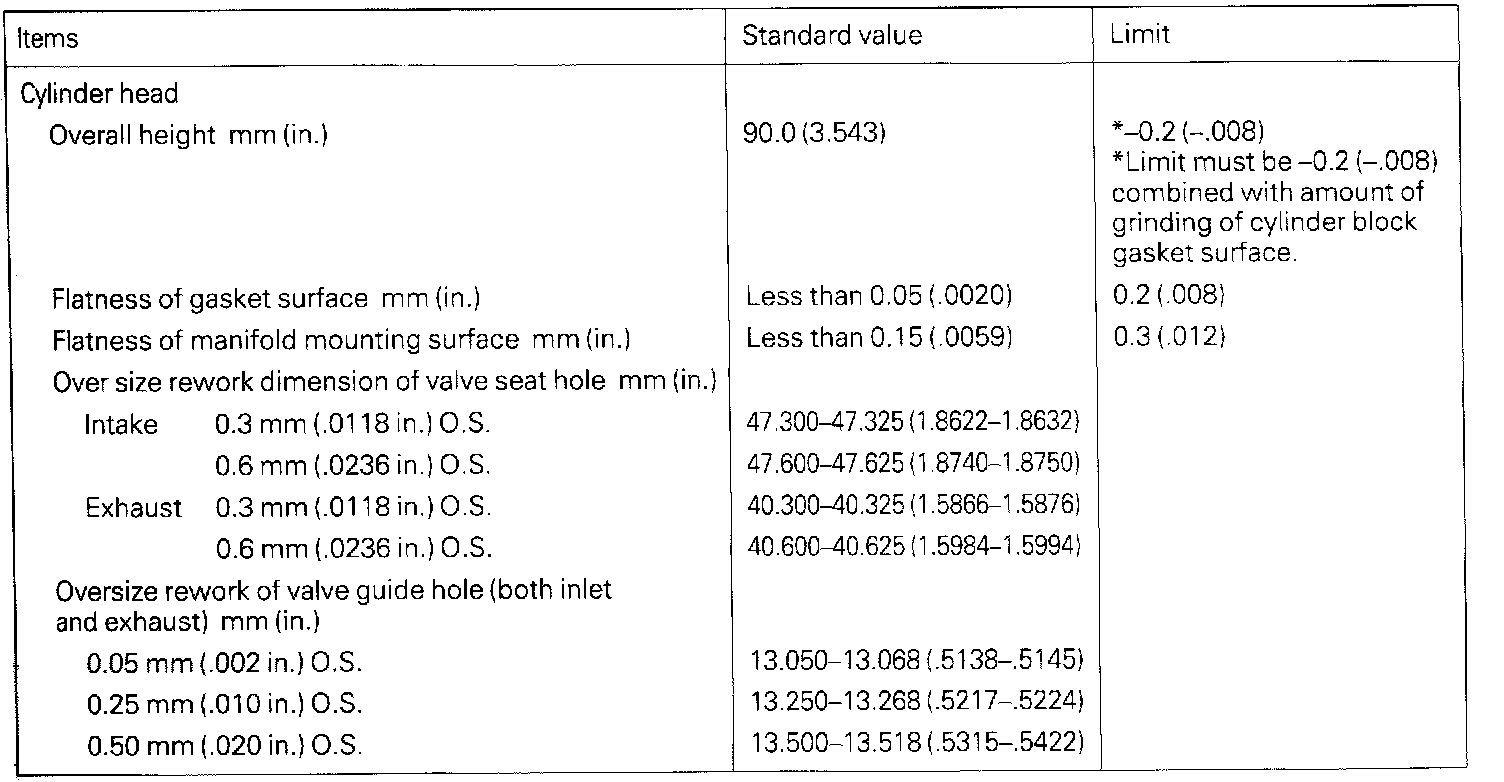

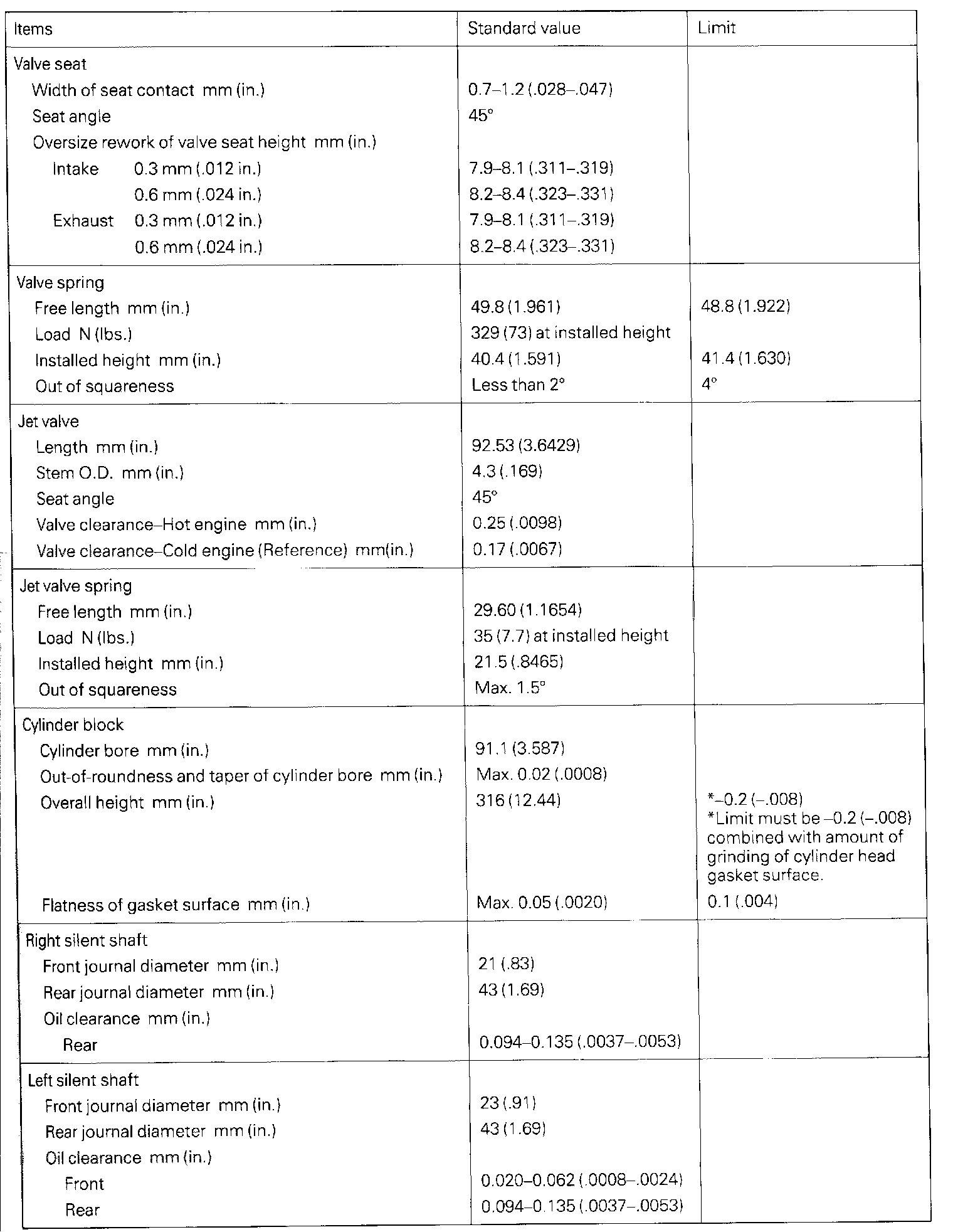

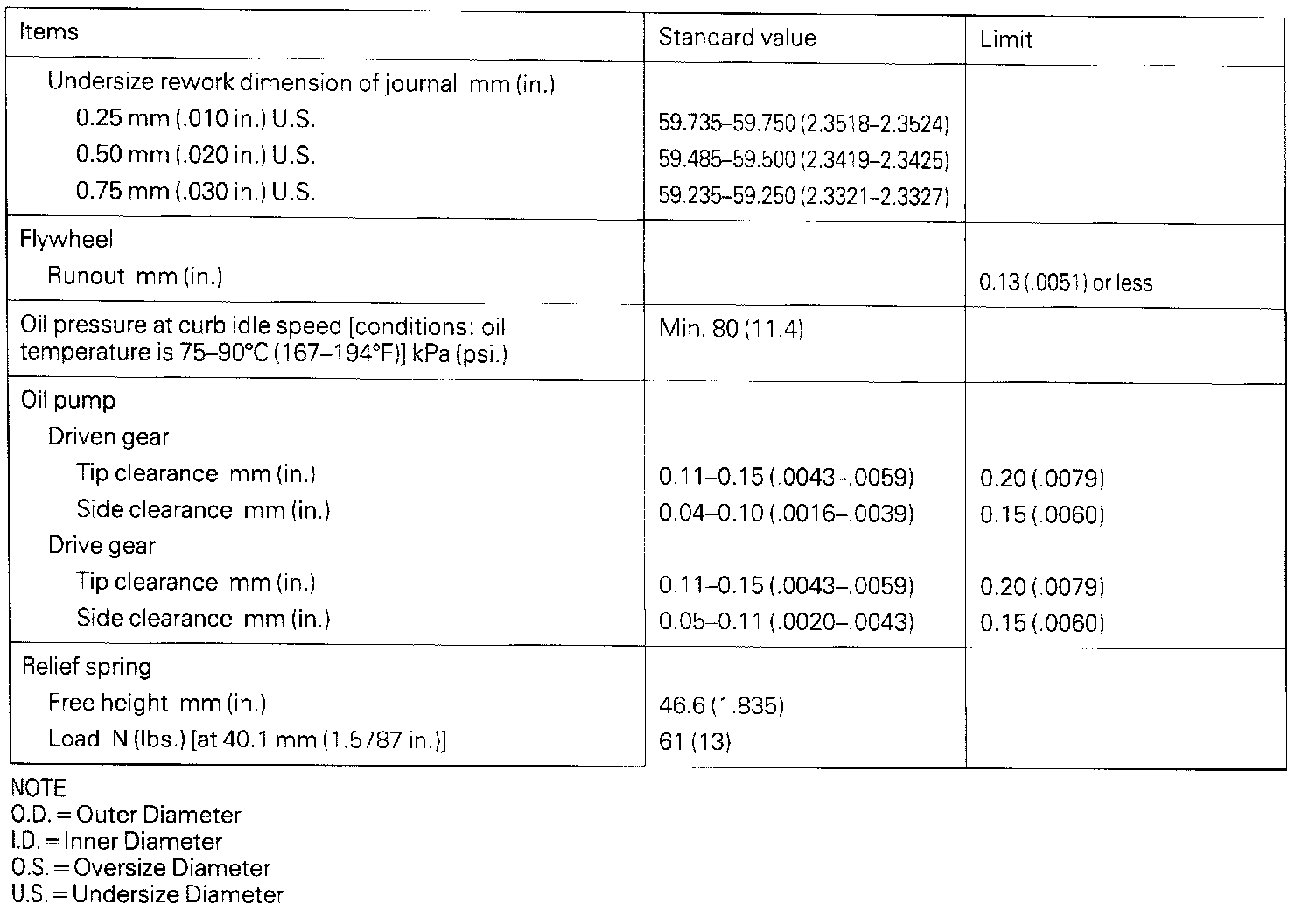

Engine Service Data

1 Of 2:

2 Of 2:

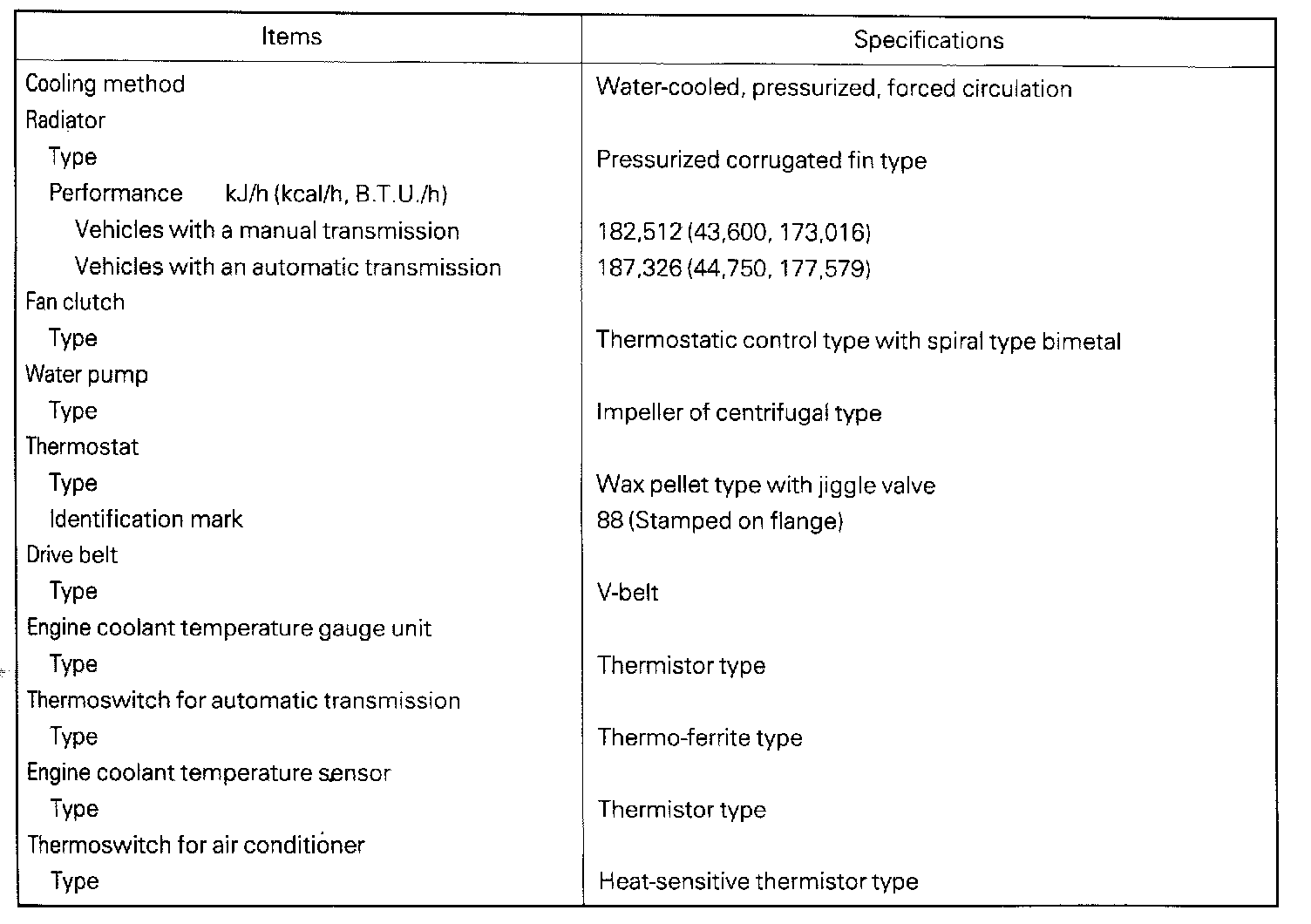

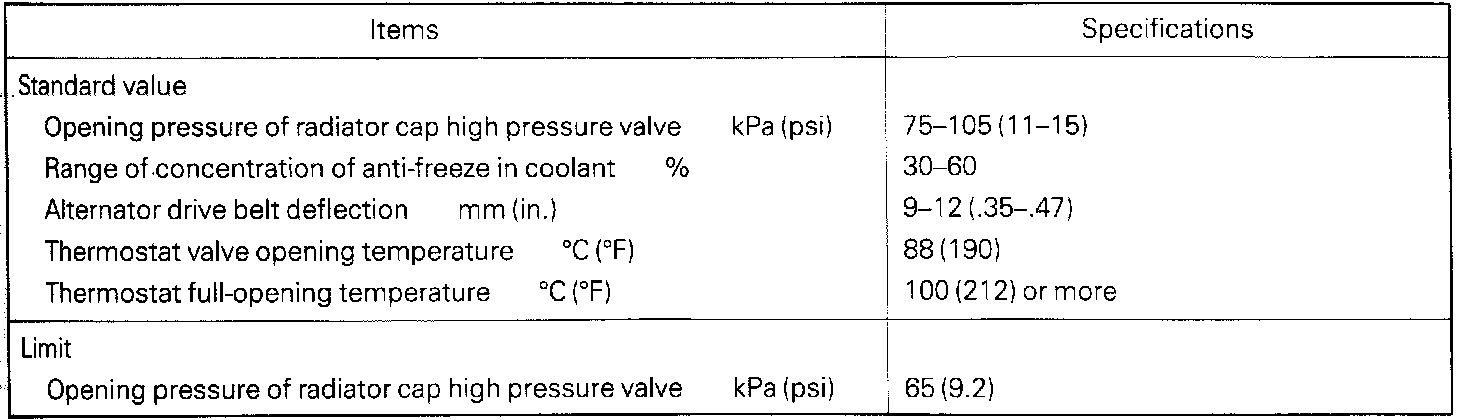

Cooling System

1 Of 2:

2 Of 2:

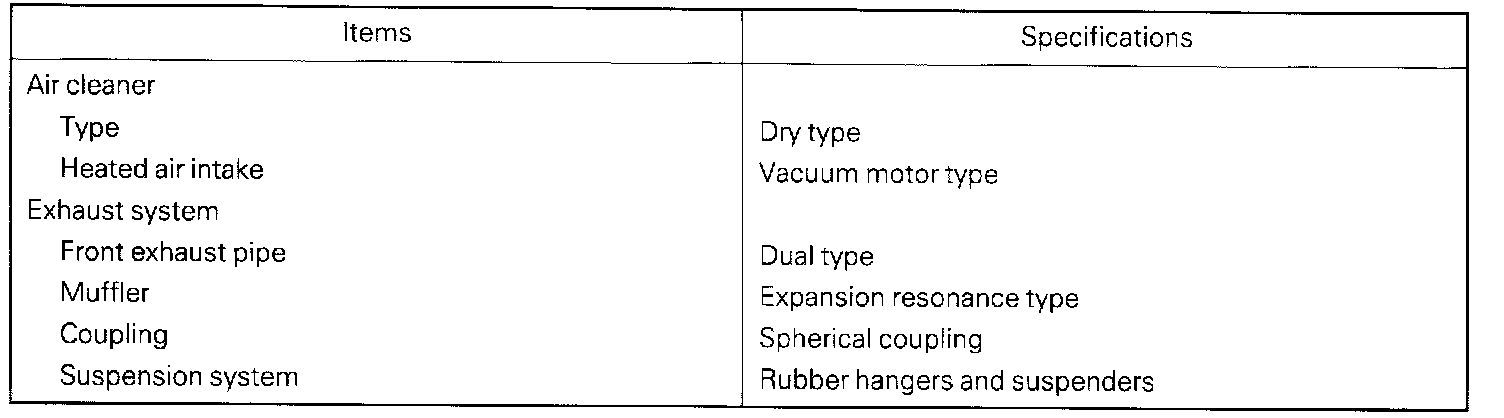

Intake and Exhaust Manifolds
