Torque Specifications

TORQUE SPECIFICATIONS

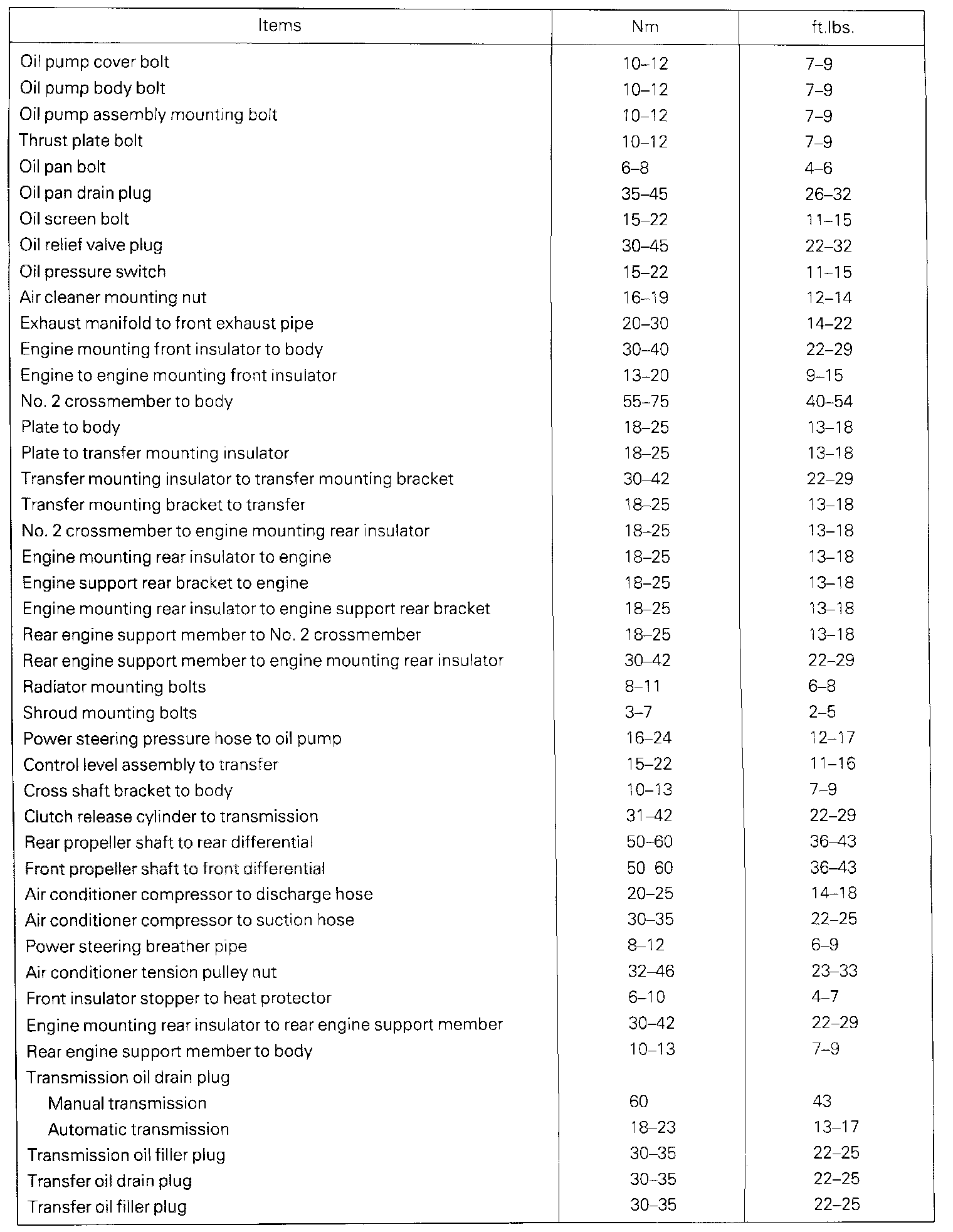

1 Of 2:




2 Of 2:

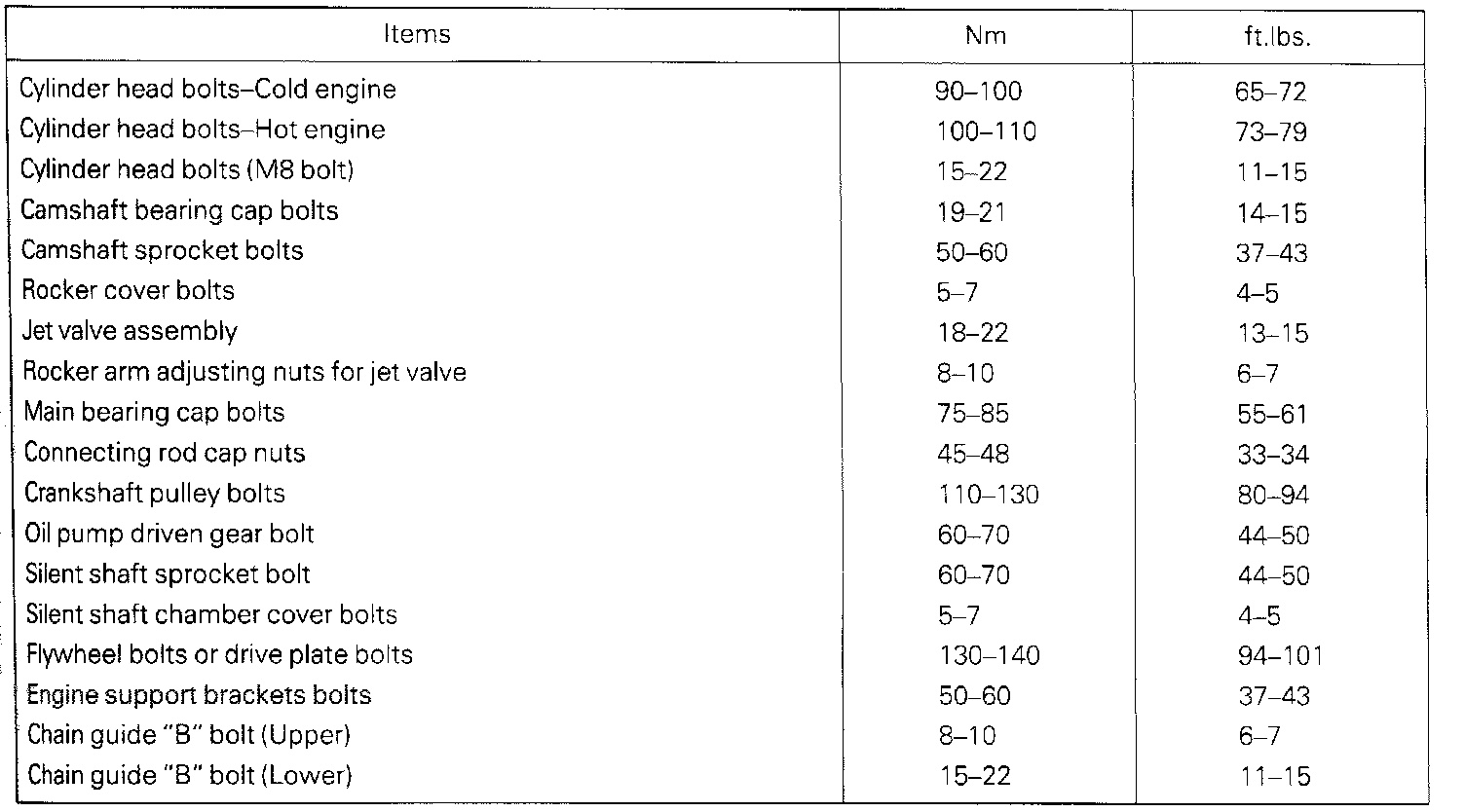

Engine





Cylinder Head Bolt Removal Sequence

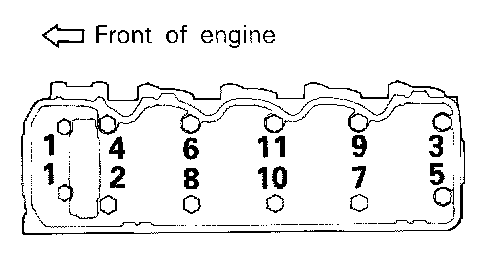

Cylinder Head Torque Sequence

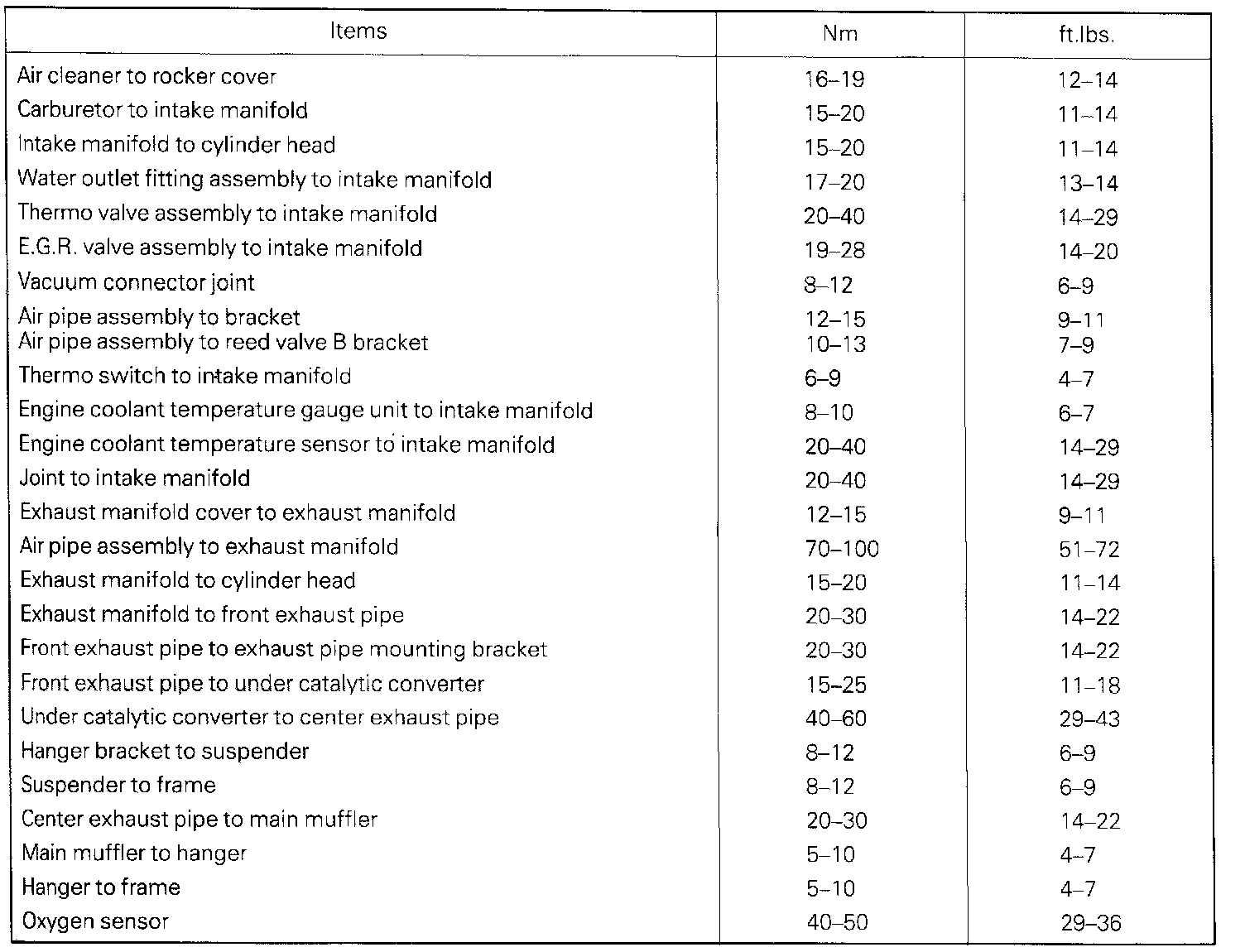

Intake and Exhaust Manifolds

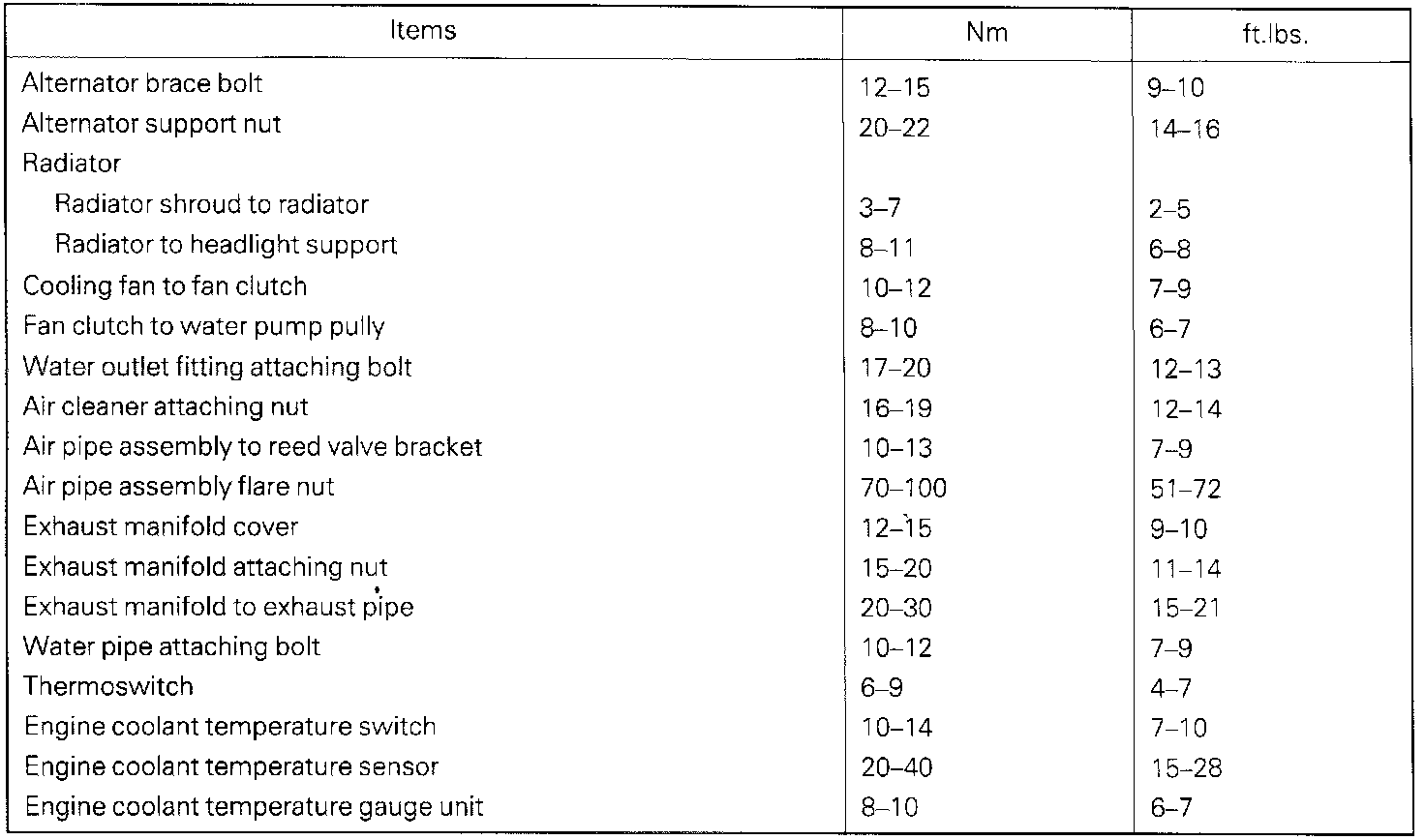

Cooling System
