Specifications
>>
Mechanical Specifications
>>
Differential Assembly
Differential Assembly

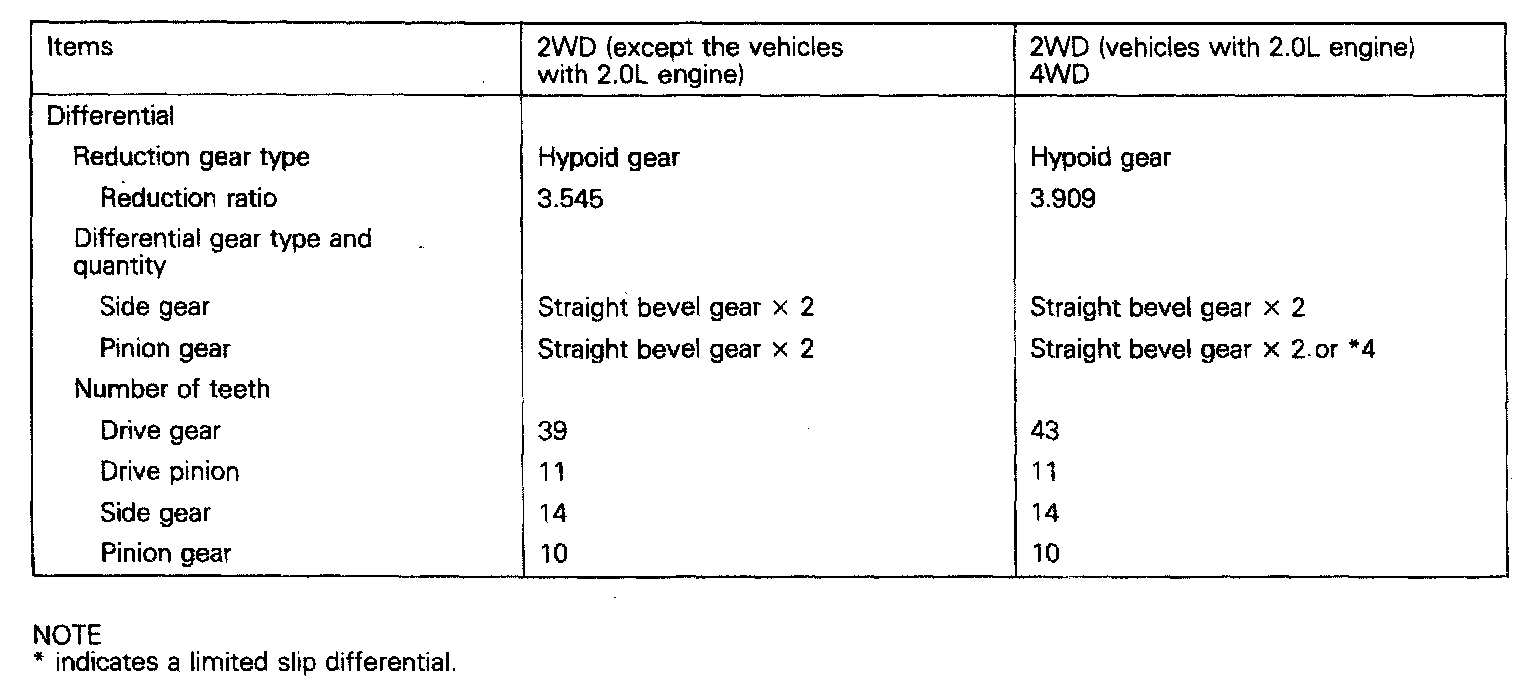

2WD/4WD Rear Axle Differential, Dimensions:
2WD/4WD Rear Axle Differential Standard Values:

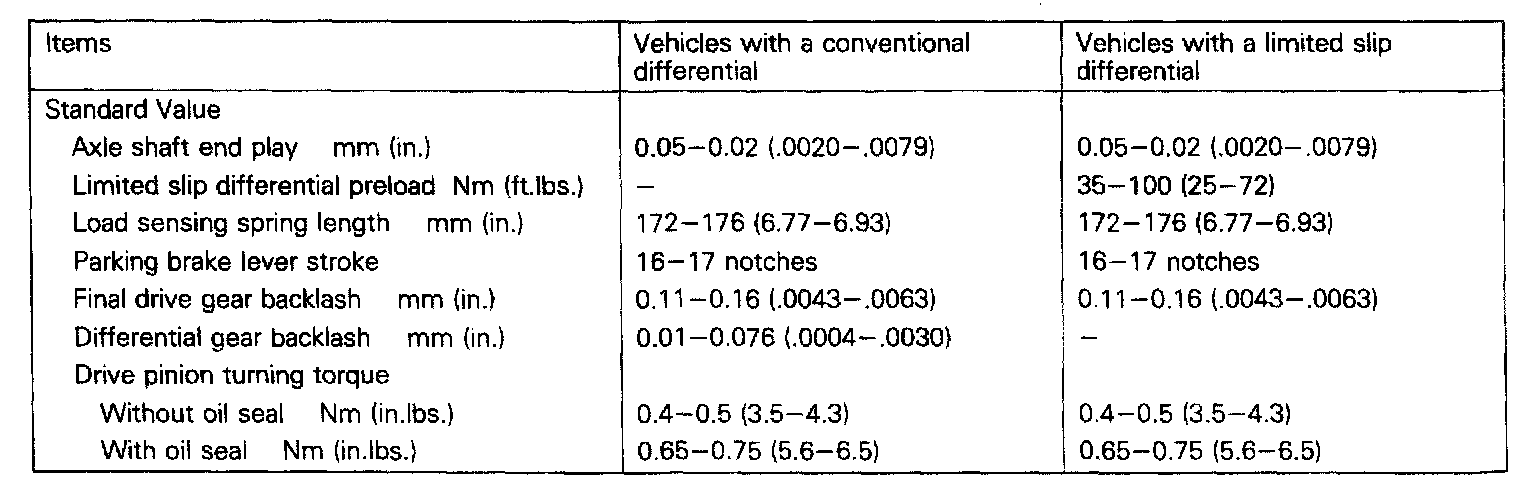

2WD/4WD Rear Axle Differential, Standard Values & Limits:
