Home
>>
Mitsubishi
>>
1988
>>
Precis L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Diagrams
>>
California Vehicles
California Vehicles

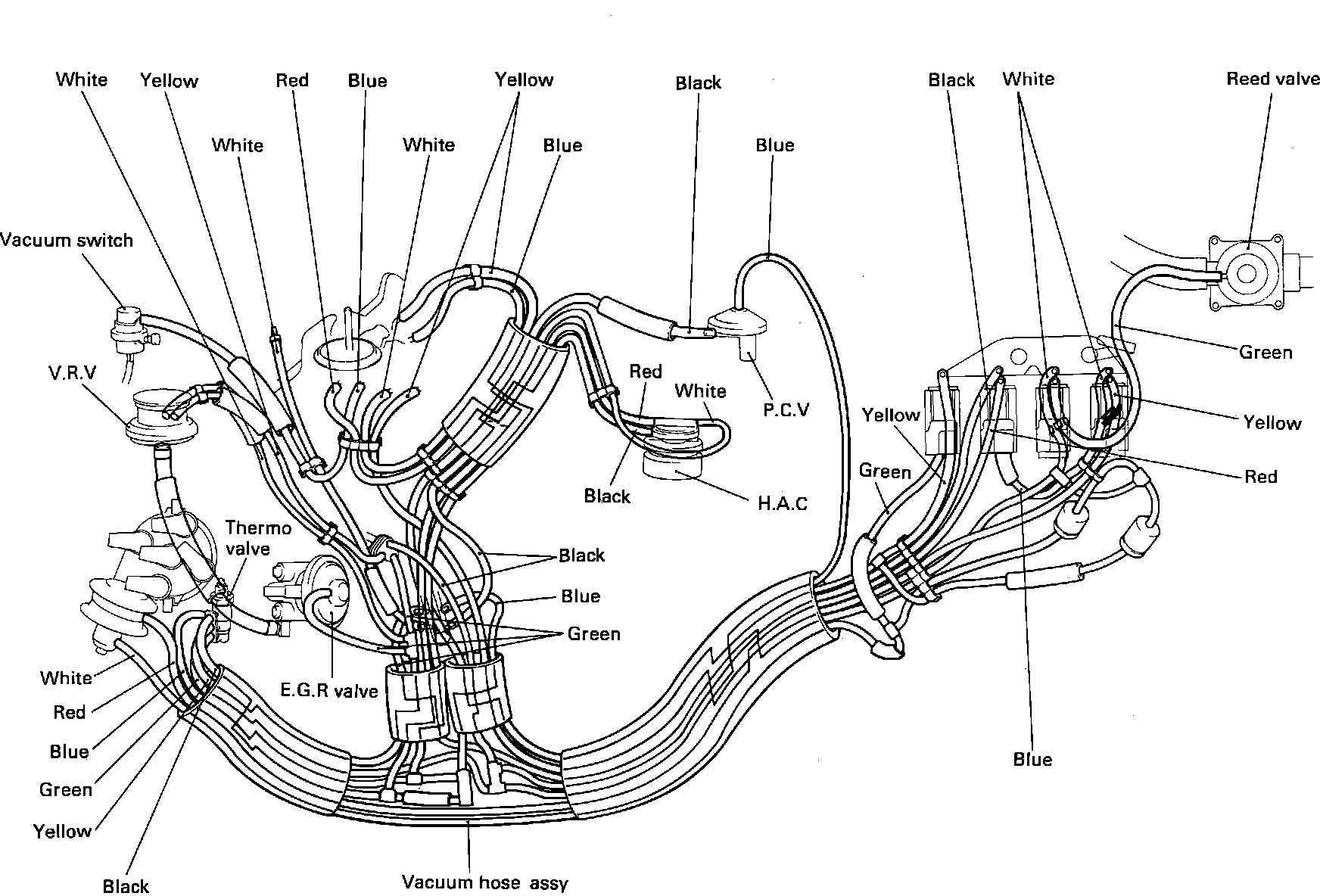

Fig. 25 Vacuum hose routing diagram (California):
