EGR Temperature Sensor: Locations

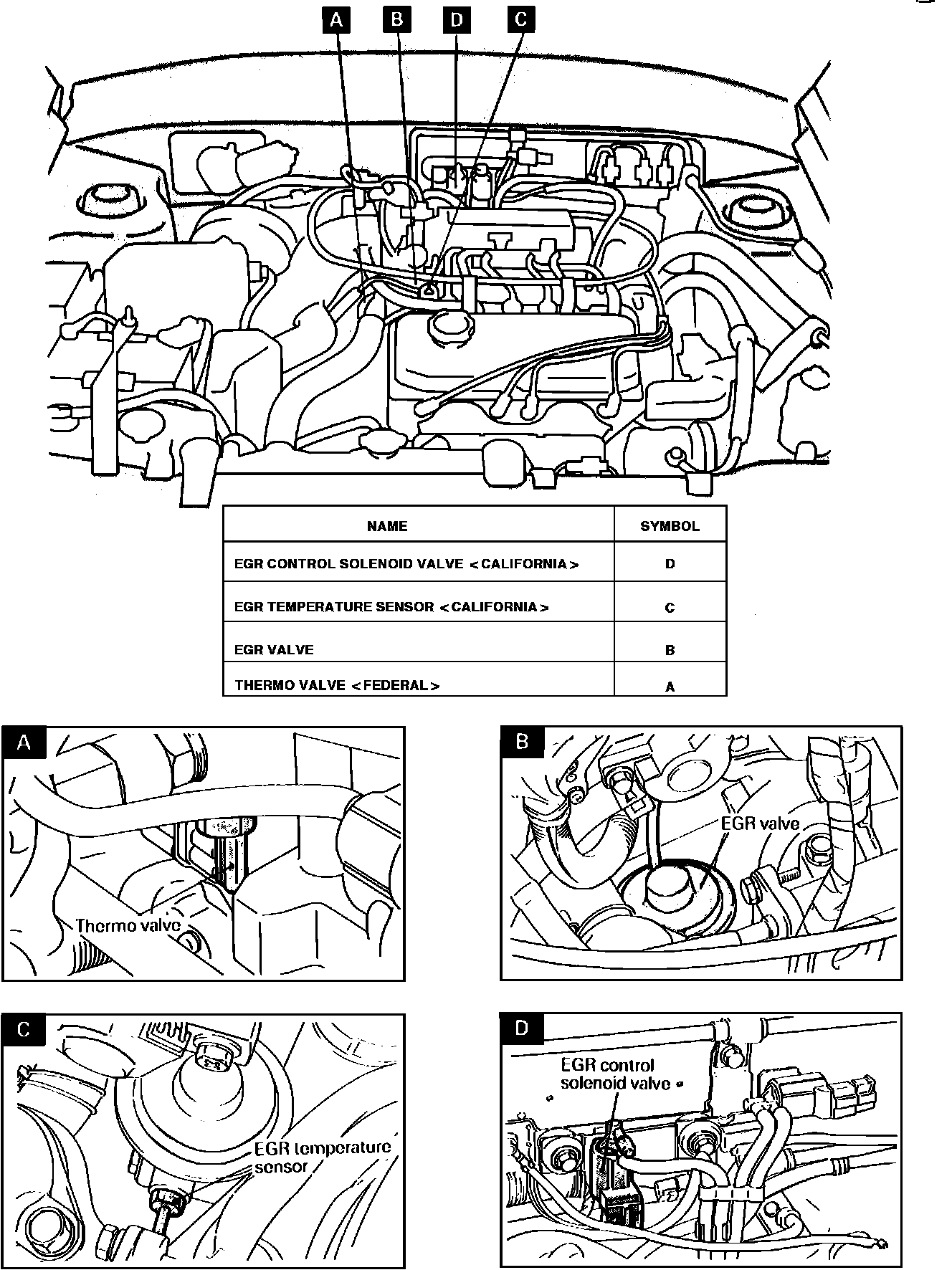

Fig. 21 Component Locations (EGR System):

EGR Control Solenoid Valve (Ca.): Center, rear of engine compartment
EGR Temperature Sensor (Ca.): Top, rear of engine
EGR Thermo Valve (Fed.): Rear, LH side of engine
EGR Valve: Rear, LH side of engine
