Air Flow Meter/Sensor: Locations

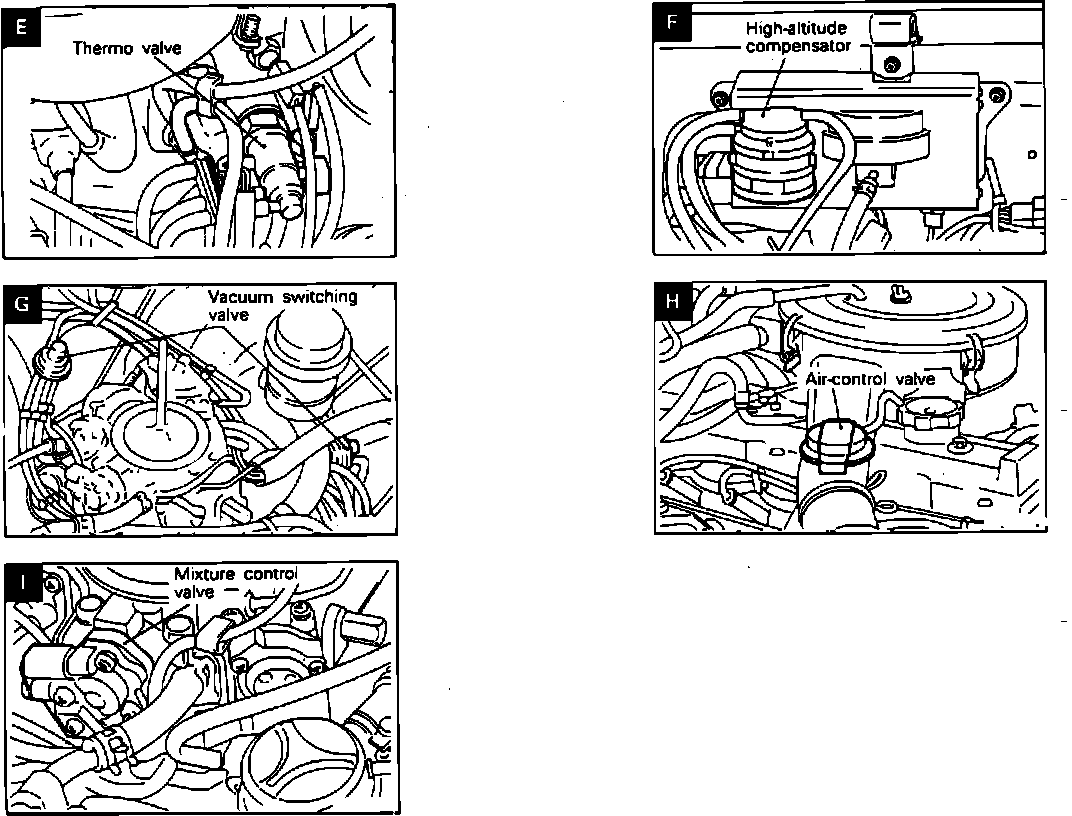

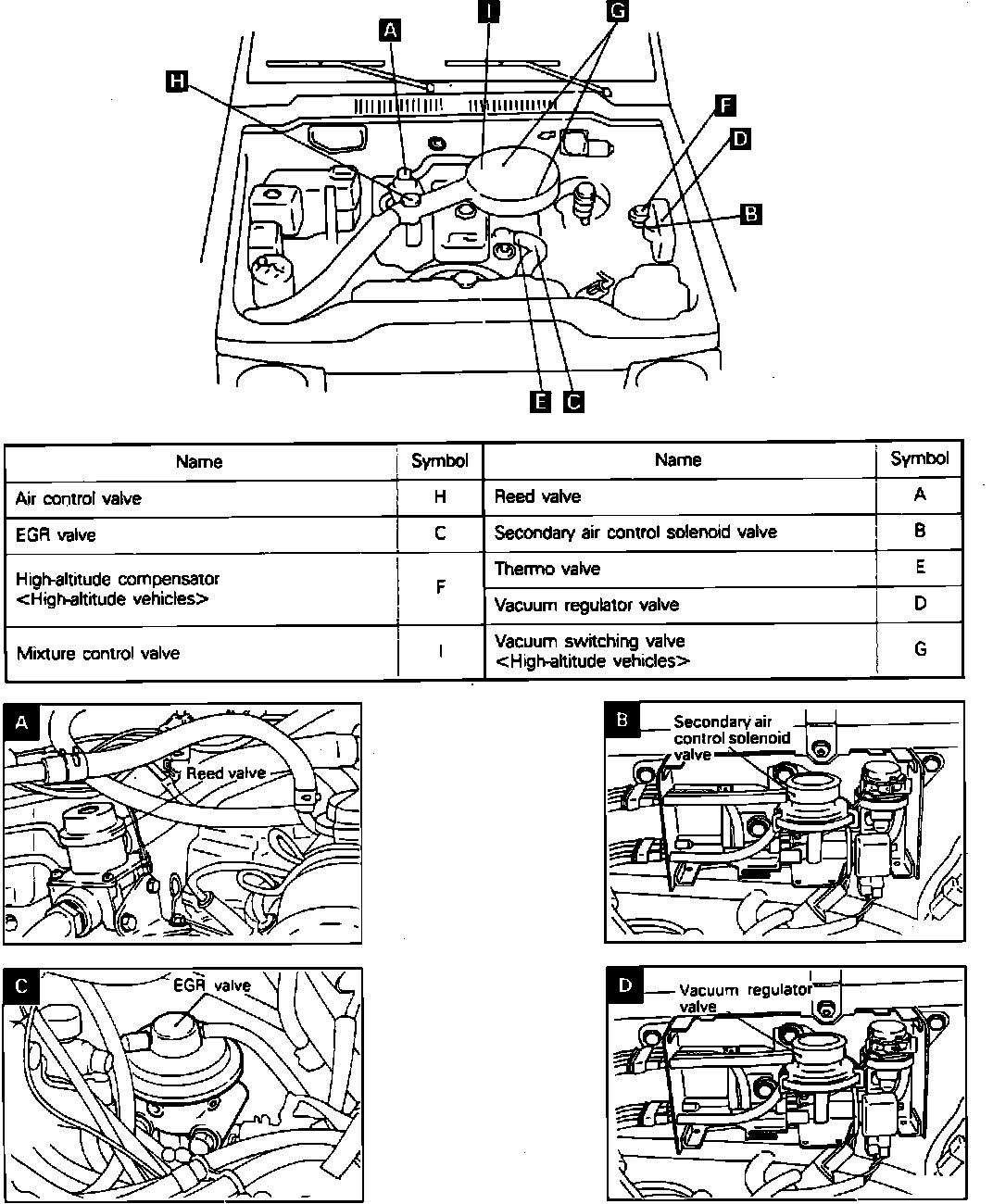

Exhaust Emission Component Locations (Part 1 Of 2).:

Exhaust Emission Component Locations (Part 1 Of 2).:

RH Front Of Engine Compartment

Applicable to: Models w/2.6L/4-156 Engine
