Crankshaft Position Sensor: Locations

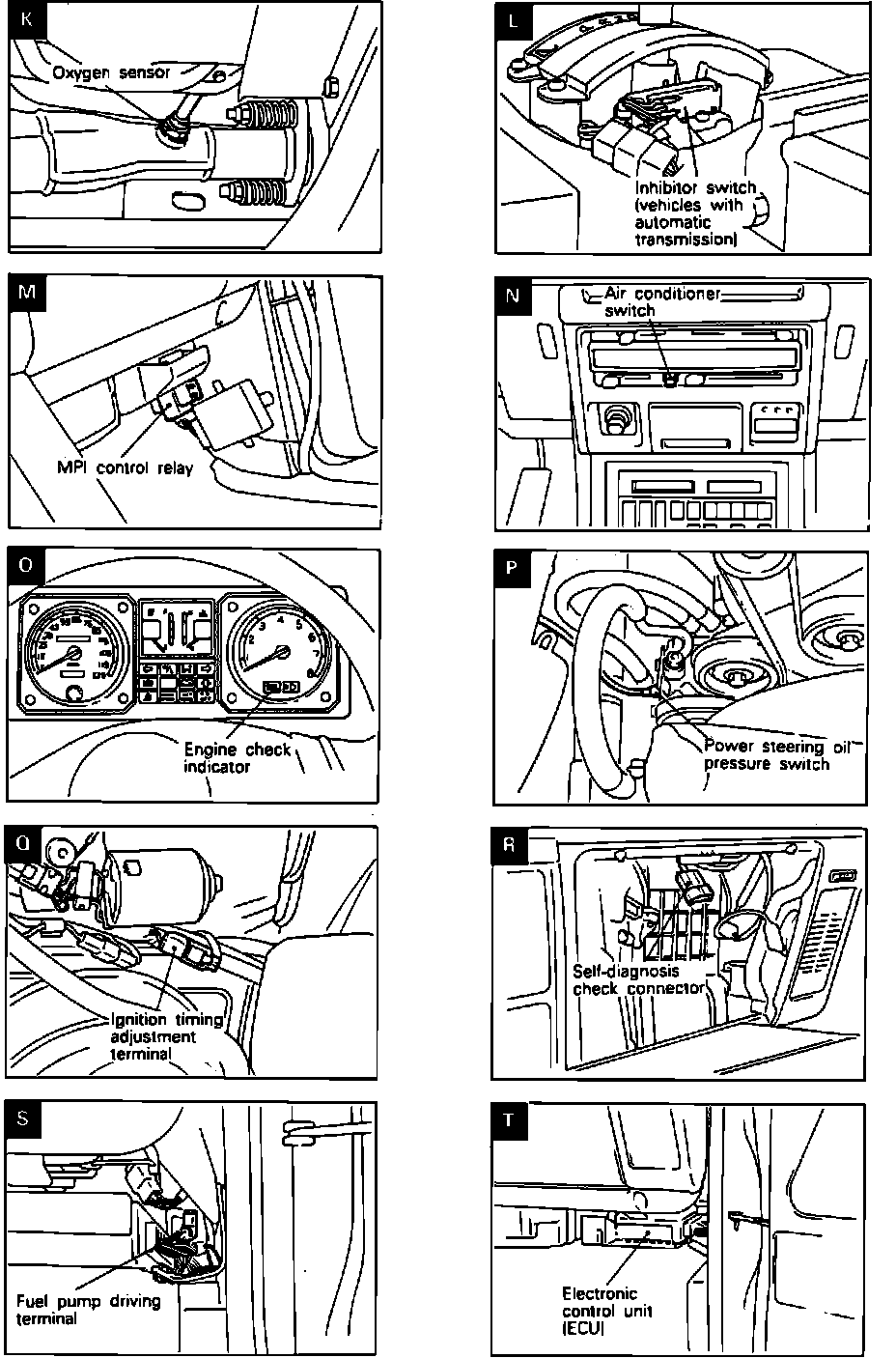

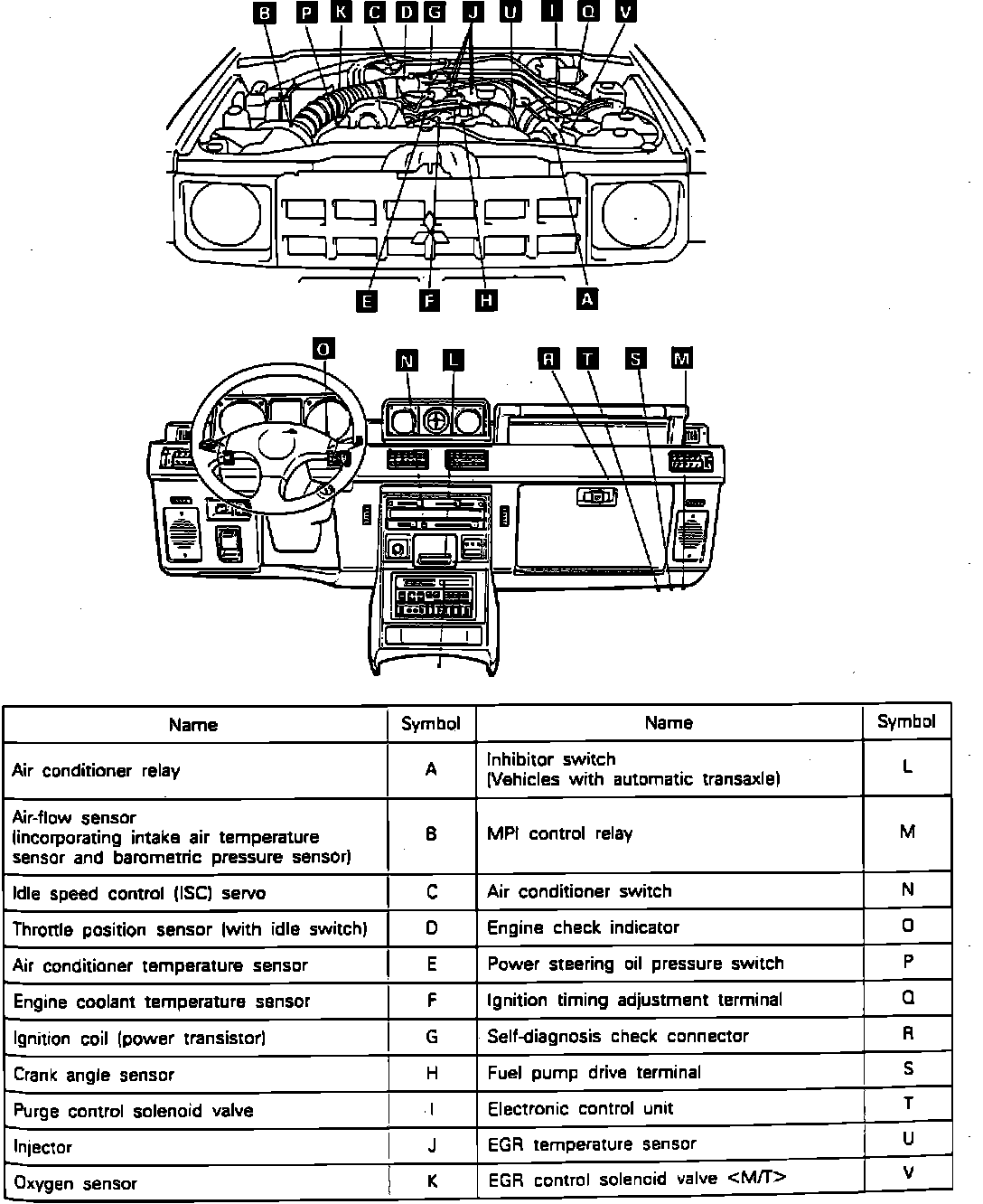

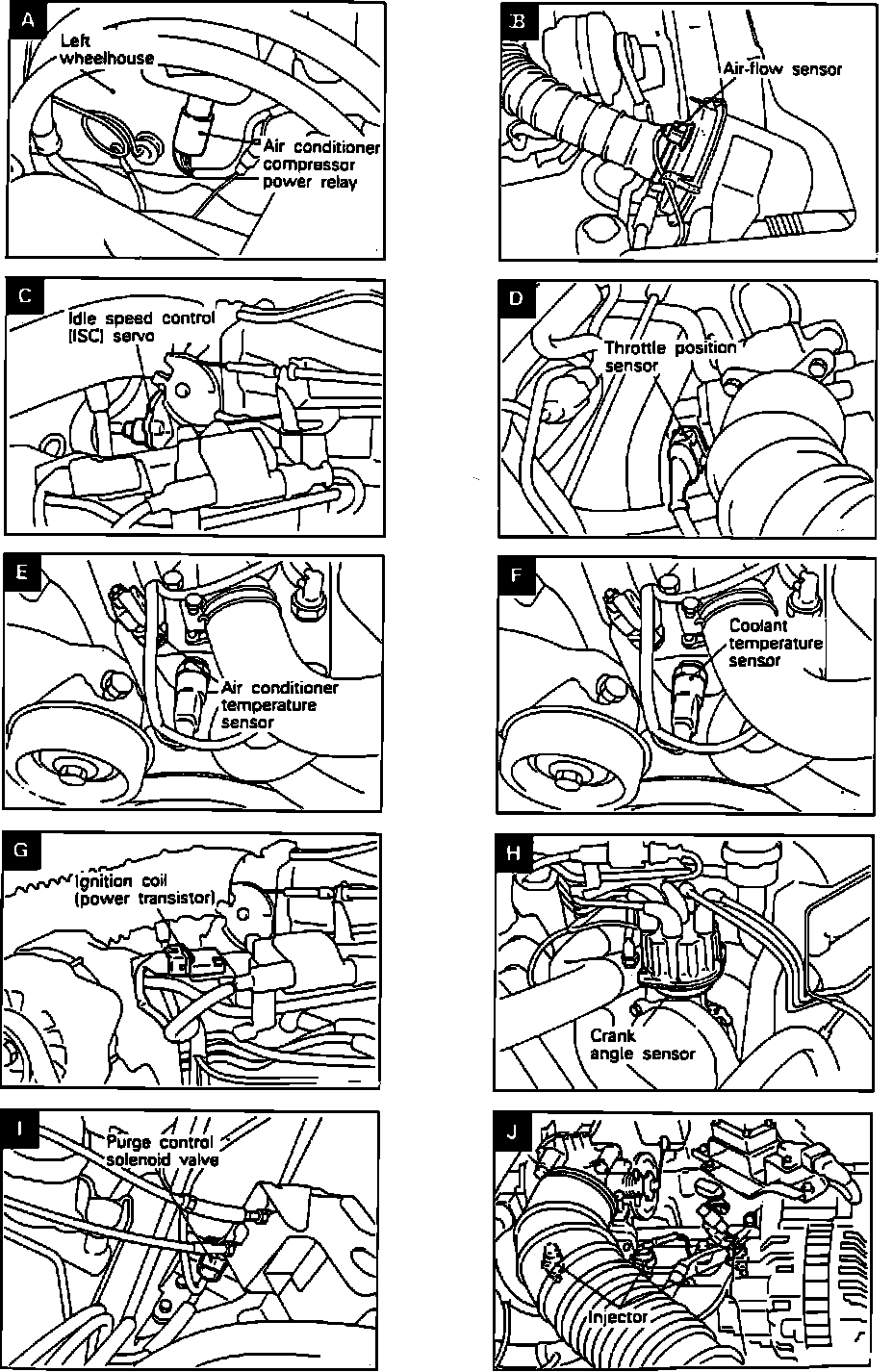

MPI Component Locations (Part 1 Of 3).:

MPI Component Locations (Part 1 Of 3).:

MPI Component Locations (Part 1 Of 3).:

On Distributor

Applicable to: Models w/3.0L/V6-181 Engine
