Feedback Control Solenoid: Locations

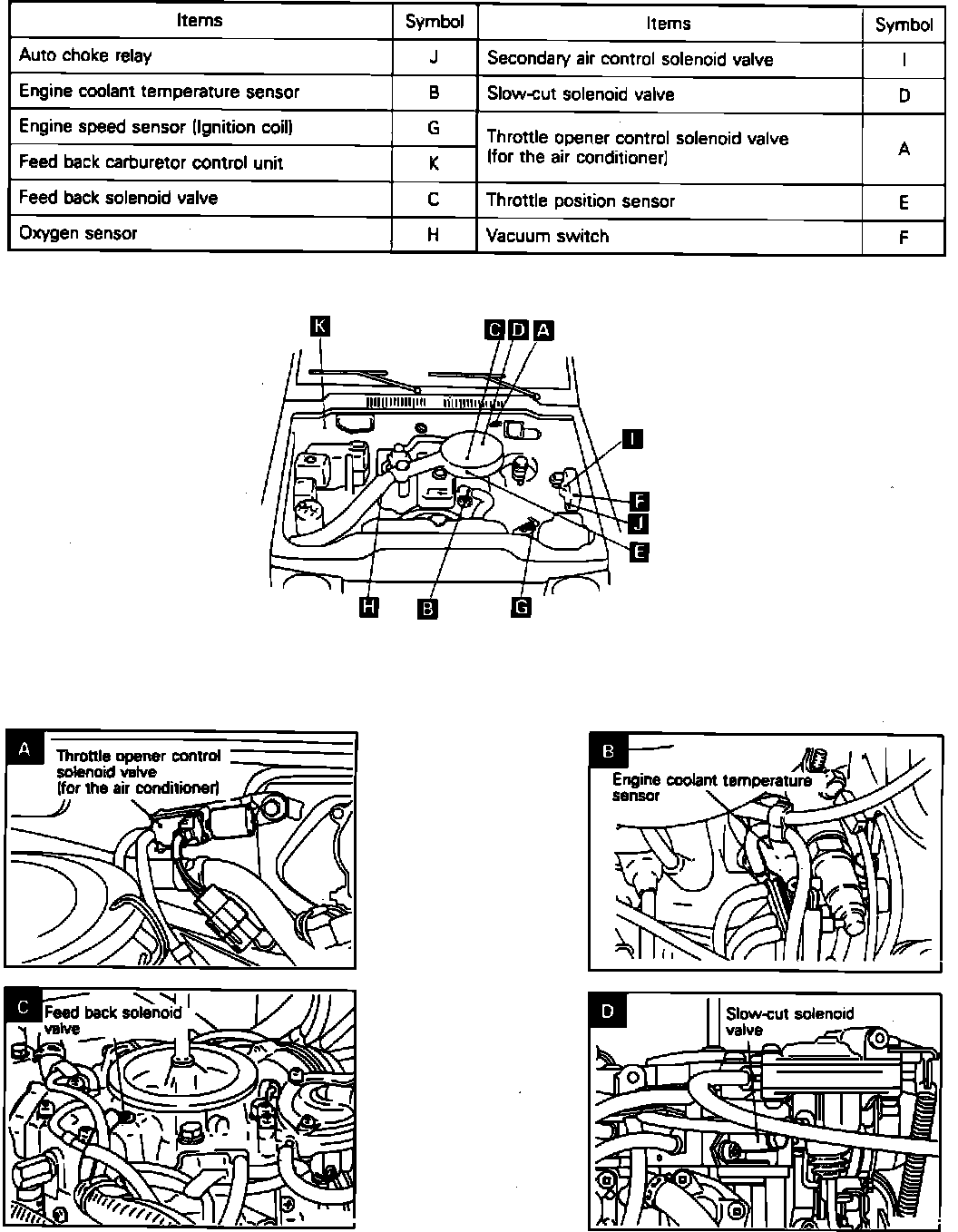

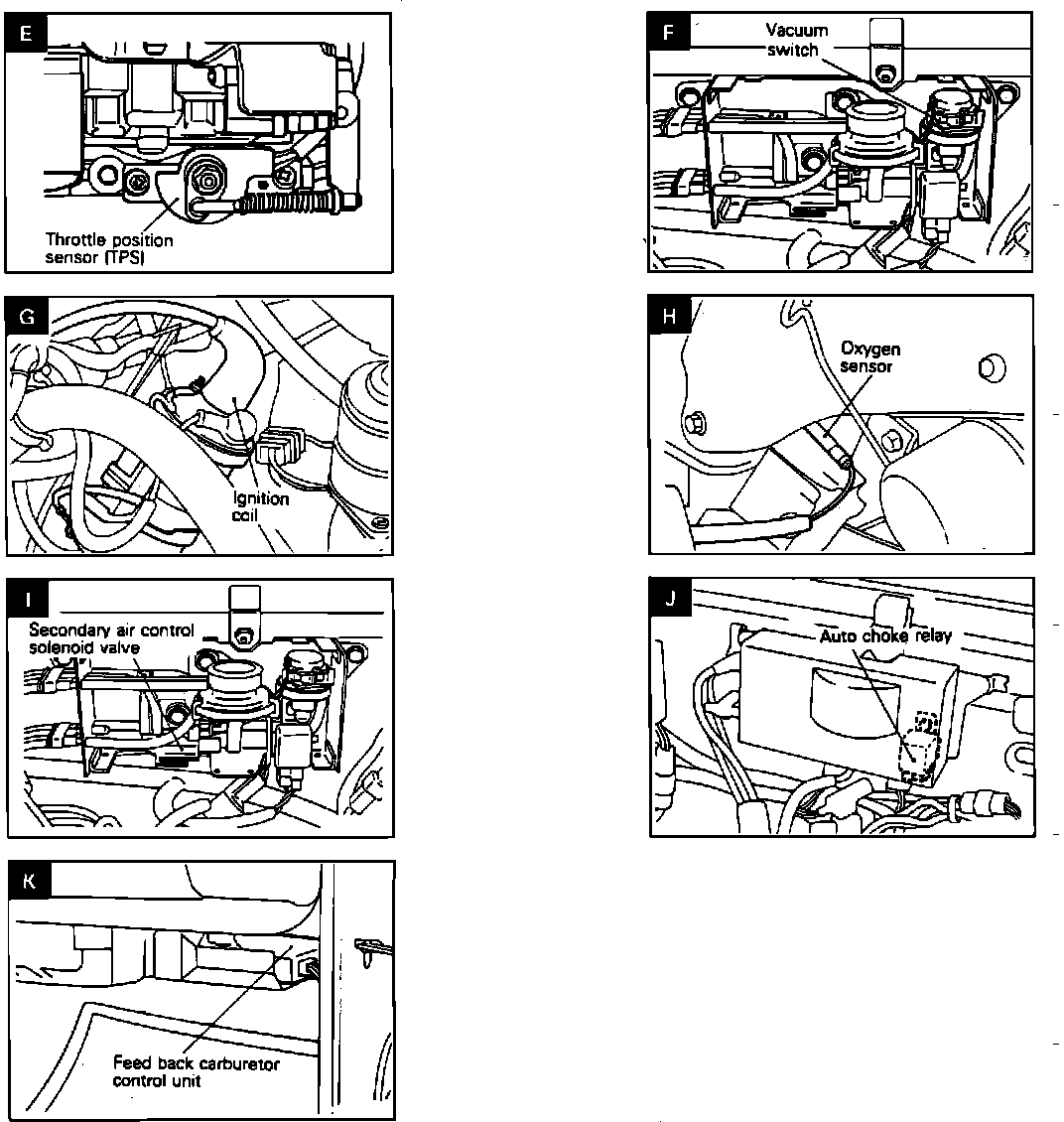

Feedback Carburetor Component Locations (Part 1 Of 2).:

Feedback Carburetor Component Locations (Part 1 Of 2).:

At Carburetor

Applicable to: Models w/2.6L/4-156 Engine
