Vehicle Speed Sensor: Locations

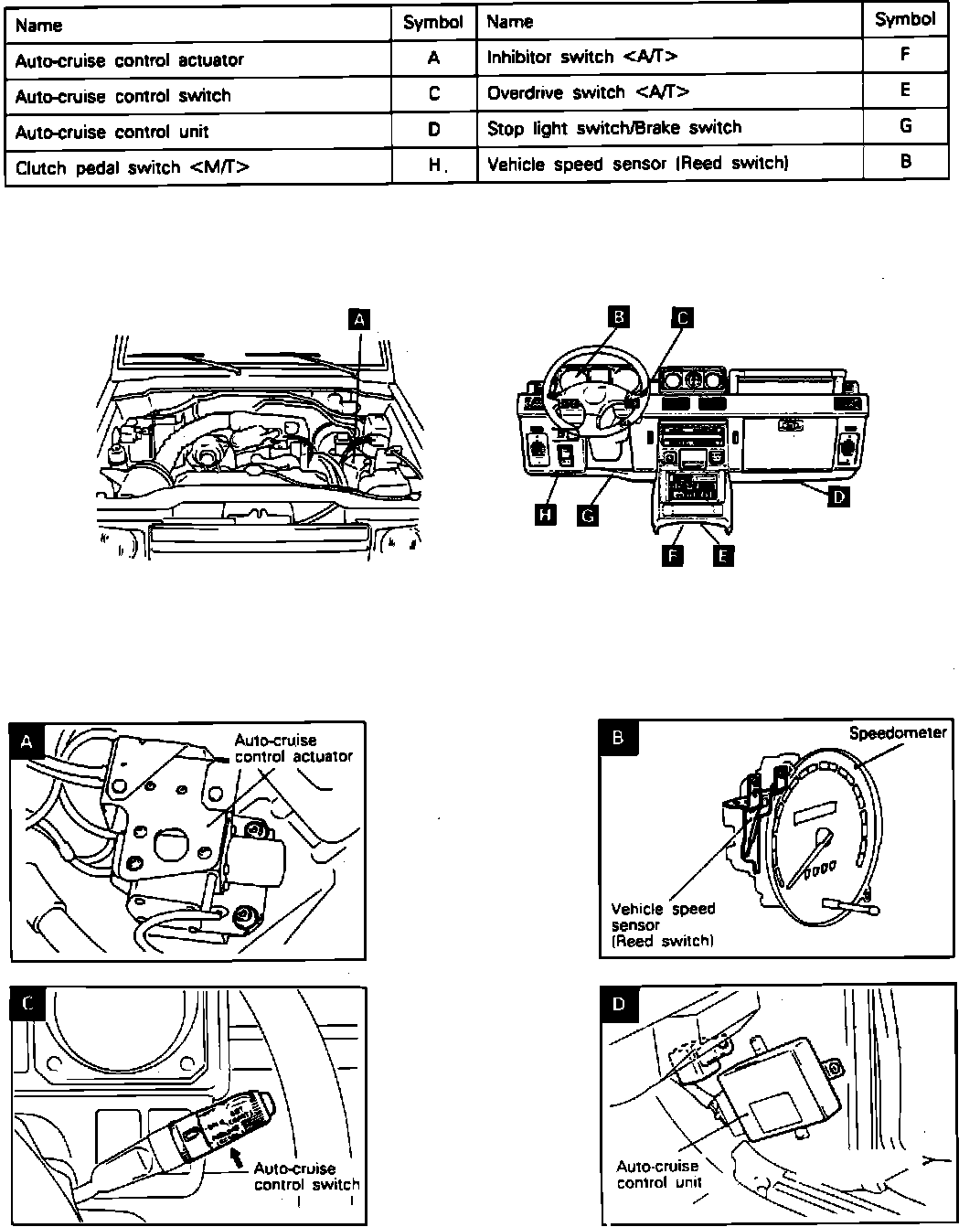

Cruise Control Component Locations (Part 1 Of 2):

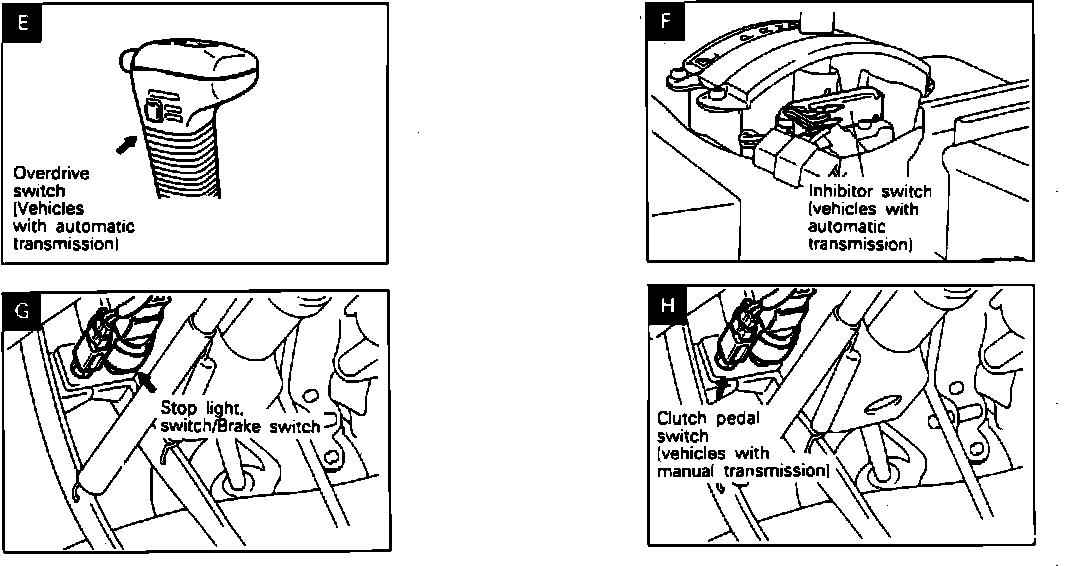

Cruise Control Component Locations (Part 1 Of 2):




At Rear Of Speedometer
