Feedback Control Solenoid: Locations

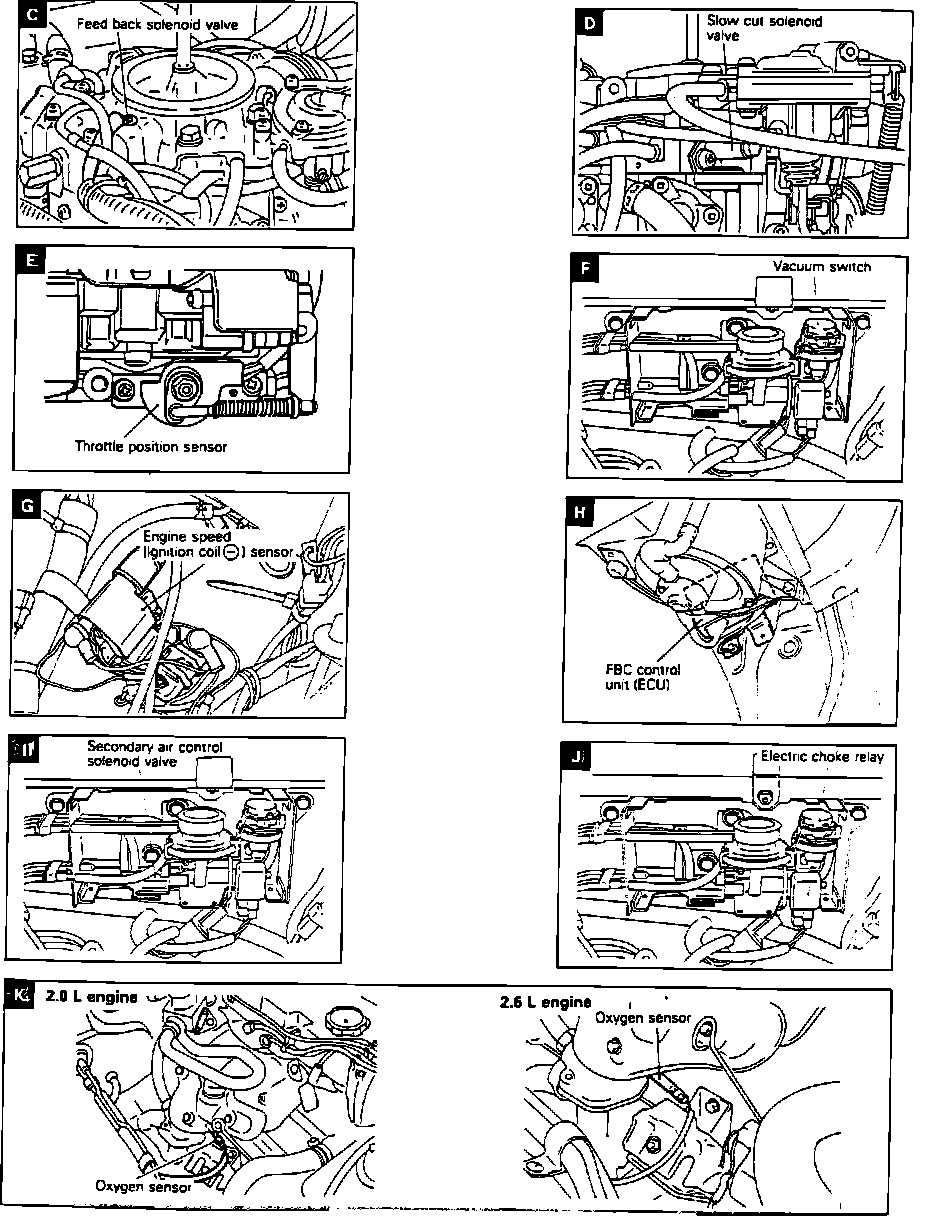

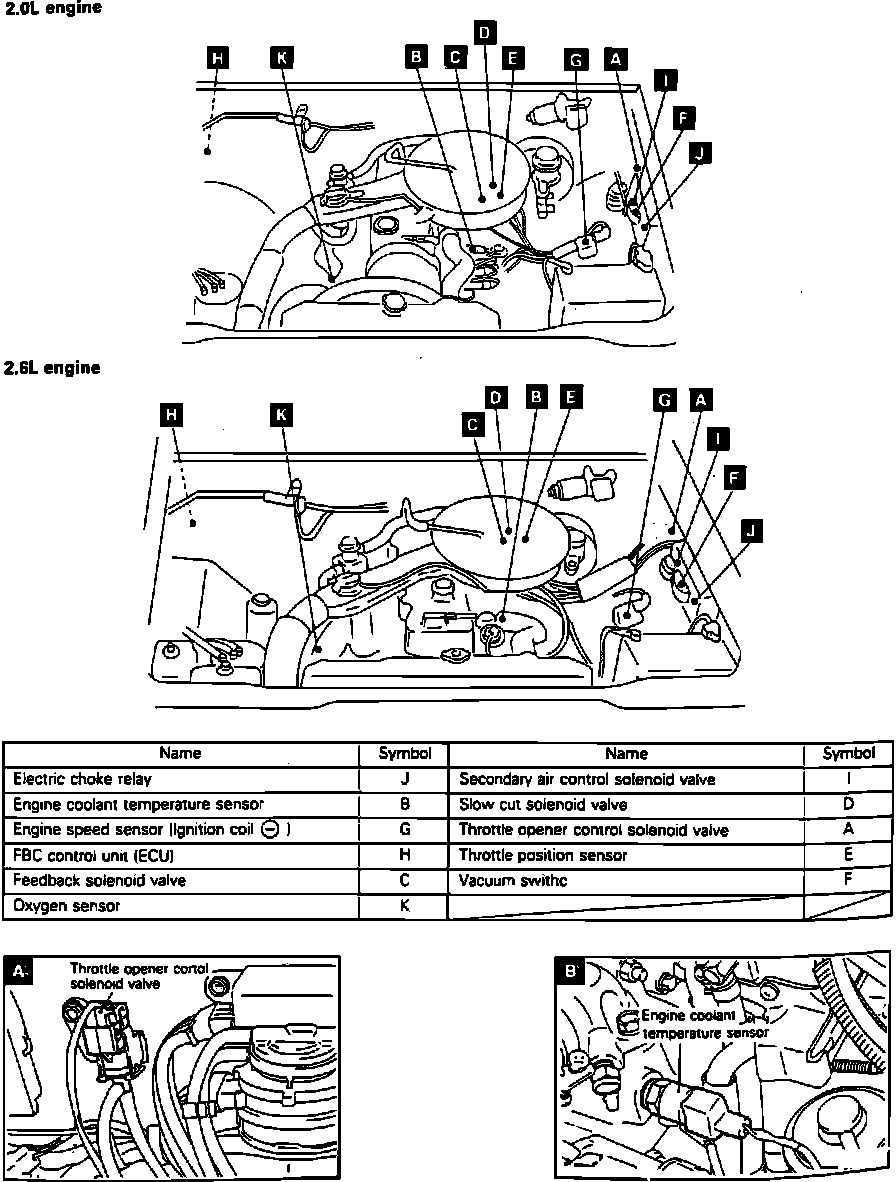

Engine Compartment Component Locations (Part 1 Of 2).:




Engine Compartment Component Locations (Part 1 Of 2).:




At Carburetor

Applicable to: 1989 Models w/FBC System
