Service Specifications

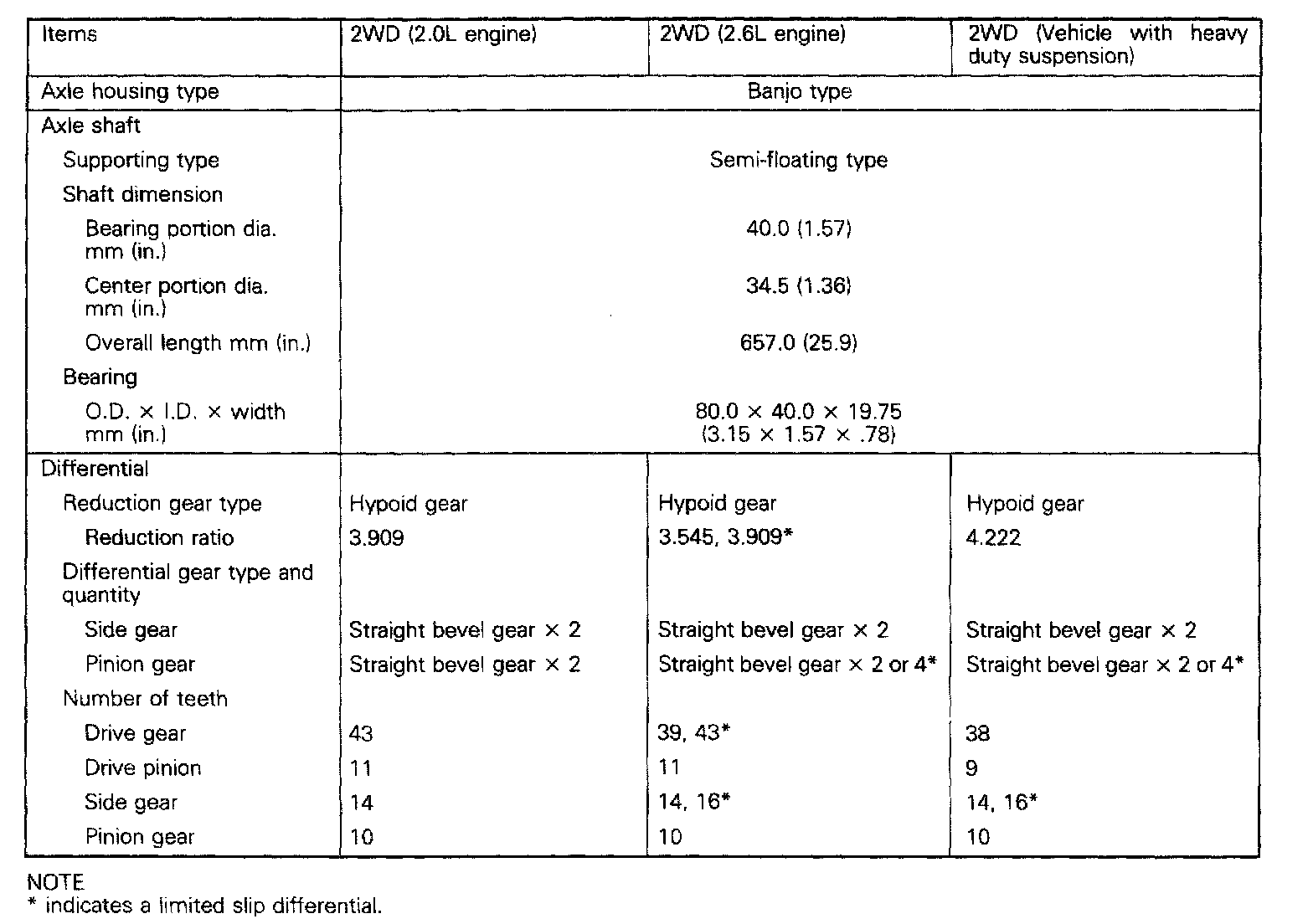

KM132/AW372, 2WD Rear Differential Dimensions:

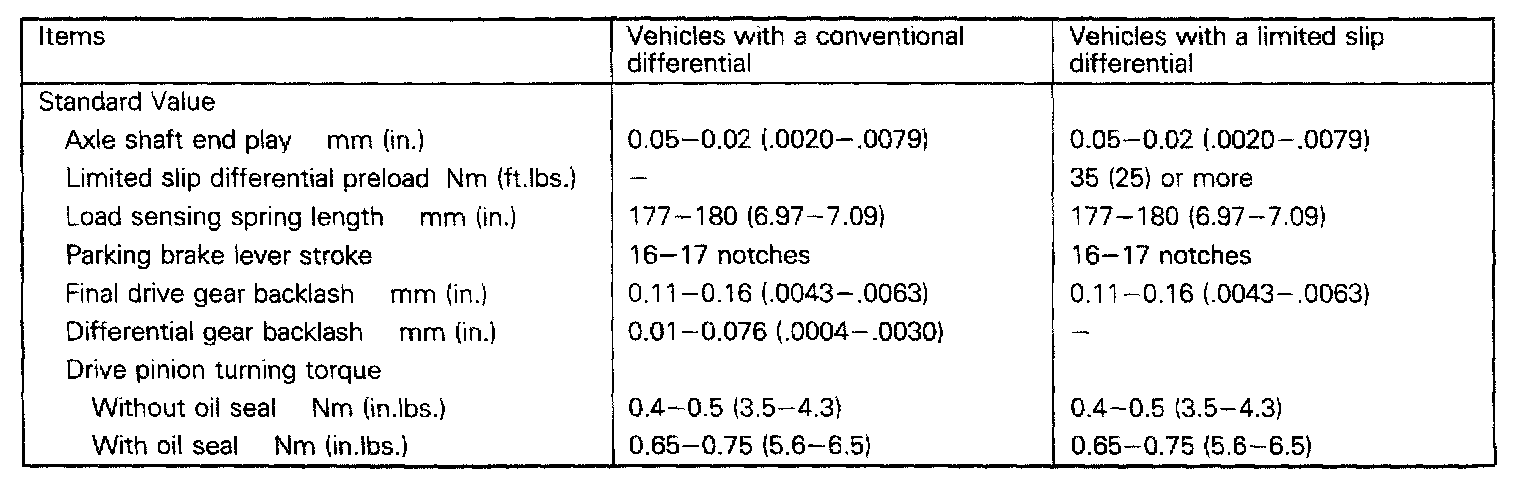

KM132/AW372, 2WD Rear Differential Standard Values:

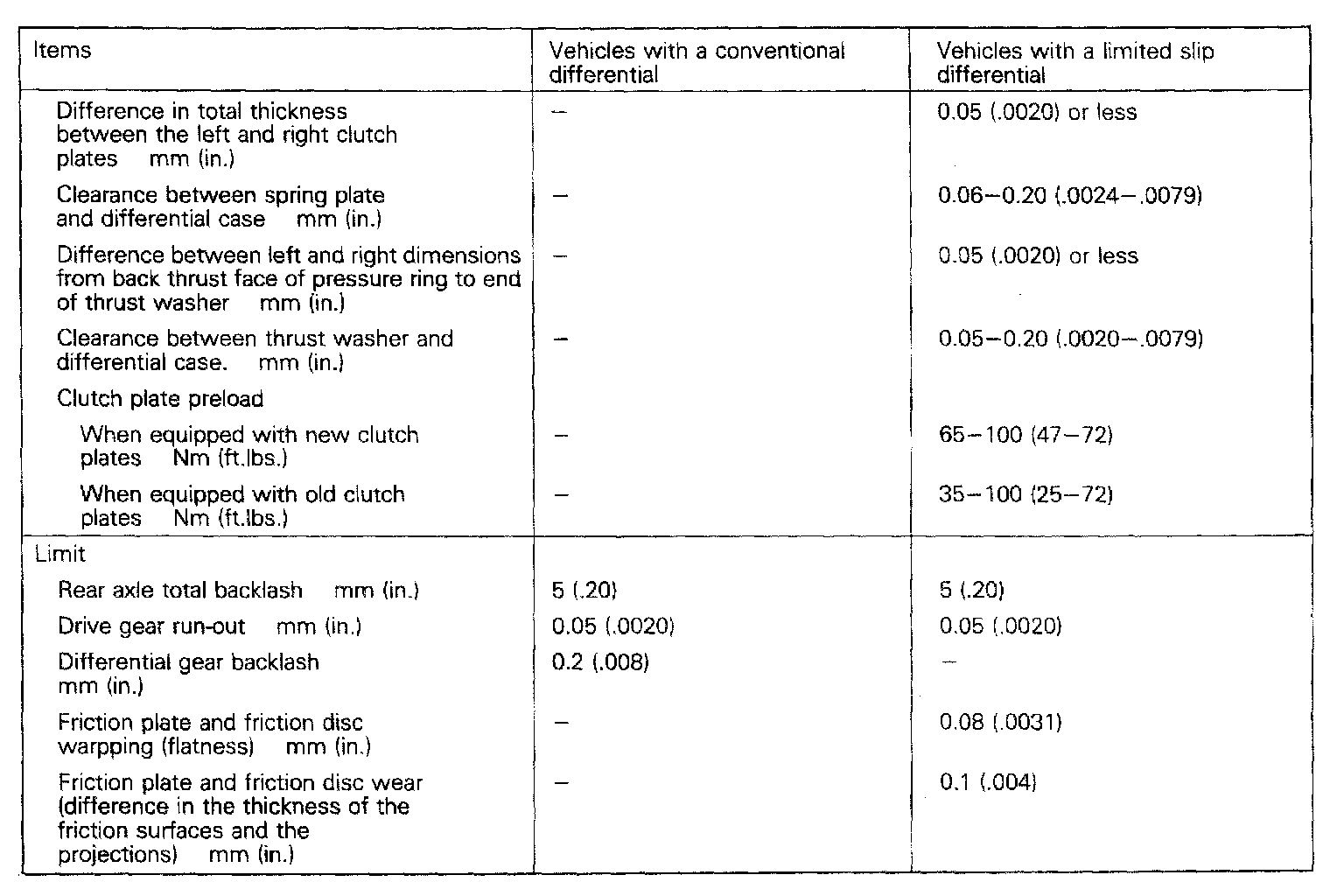

KM132/AW372, 2WD Rear Differential Standard Values & Limits:
