EGR Valve: Locations

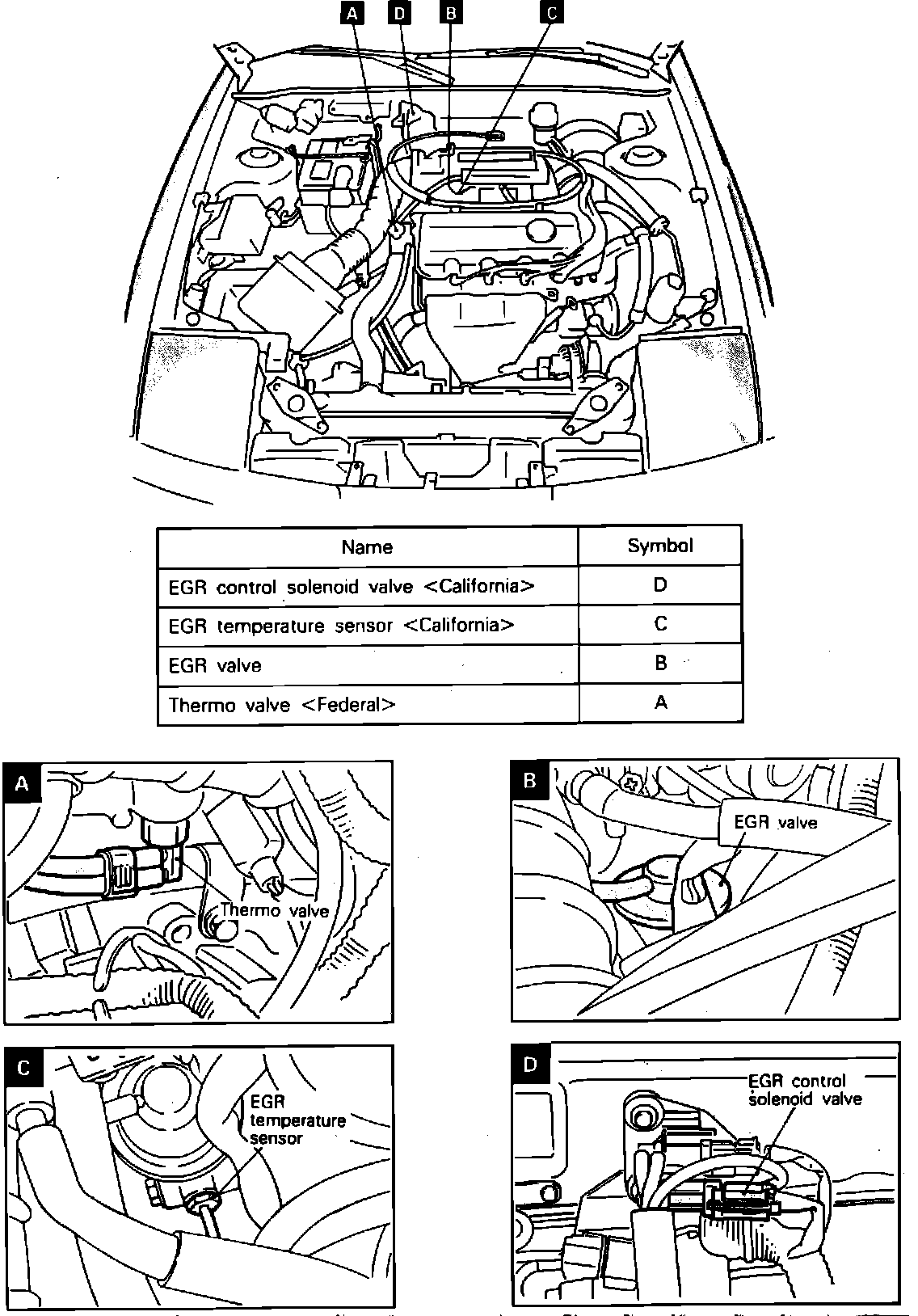

Fig. 3 EGR System:
EGR Valve: Rear, RH side of engine.
EGR Control Solenoid Valve (Ca.): Rear, RH side of engine compartment.
EGR Temperature Sensor (Ca.): Rear, RH side of engine.
EGR Thermo Valve (Fed.): Below water inlet, RH side of engine.
