Ignition Timing Connector: Description and Operation

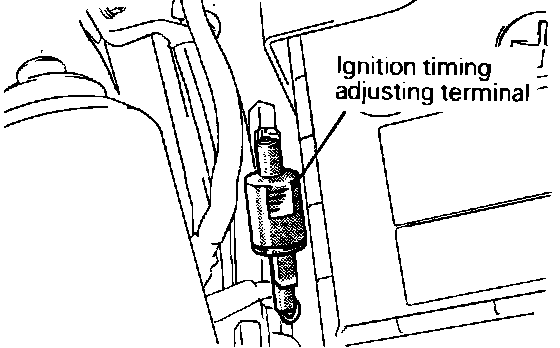

Ignition Timing Adjustment Terminal Location:
PURPOSE The
ignition timing adjustment connector returns timing to the initial setting (Base Timing) to allow for accurate adjustment.
LOCATION On the firewall behind the battery next to the fuel pump test connector
