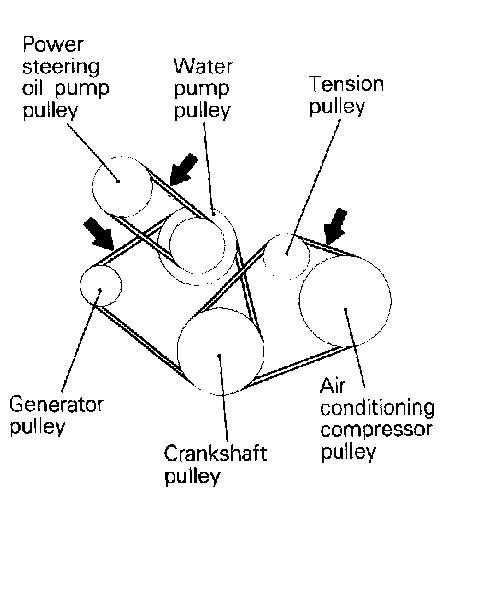

Drive Belt: Specifications

A/C BELT
Deflection At 22 Lbs.:
New, Inches 0.197-0.217
Used, Inches 0.236-0.276

ALTERNATOR BELT
Deflection At 22 Lbs.:
New, Inches 0.295-0.354
Used, Inches 0.394

POWER STEERING BELT
Deflection At 22 Lbs.:
New, Inches 0.236-0.354
Used, Inches 0.236-0.354
