Starter Relay: Testing and Inspection

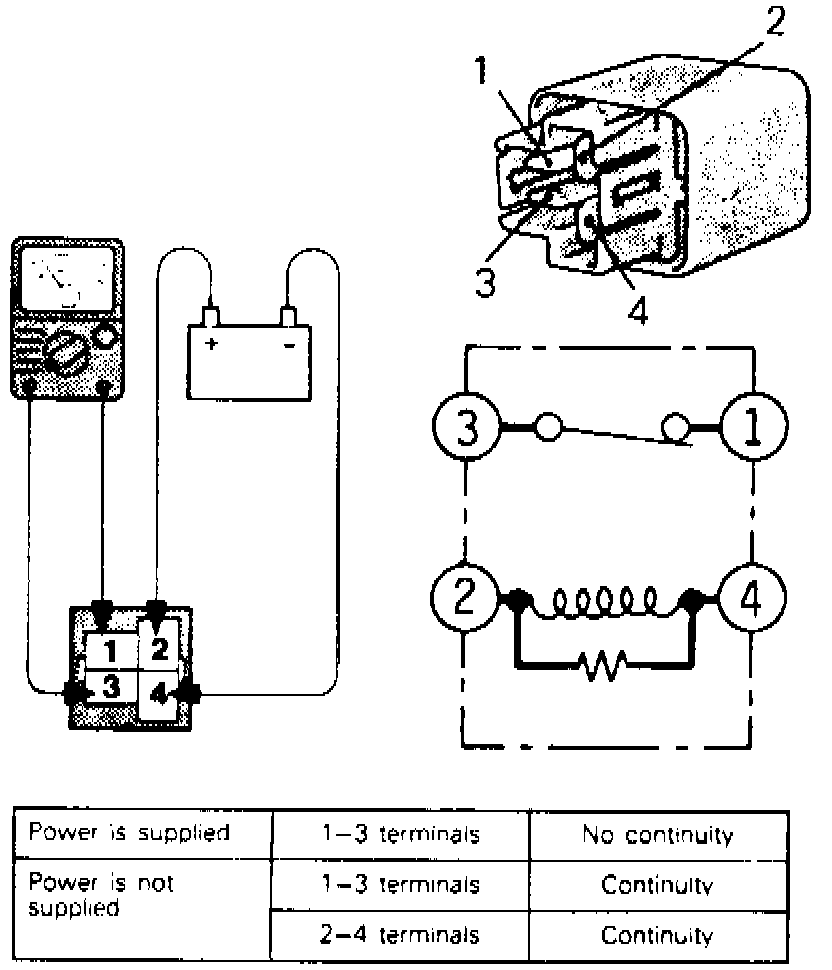

Fig. 13 Starter Relay Test:

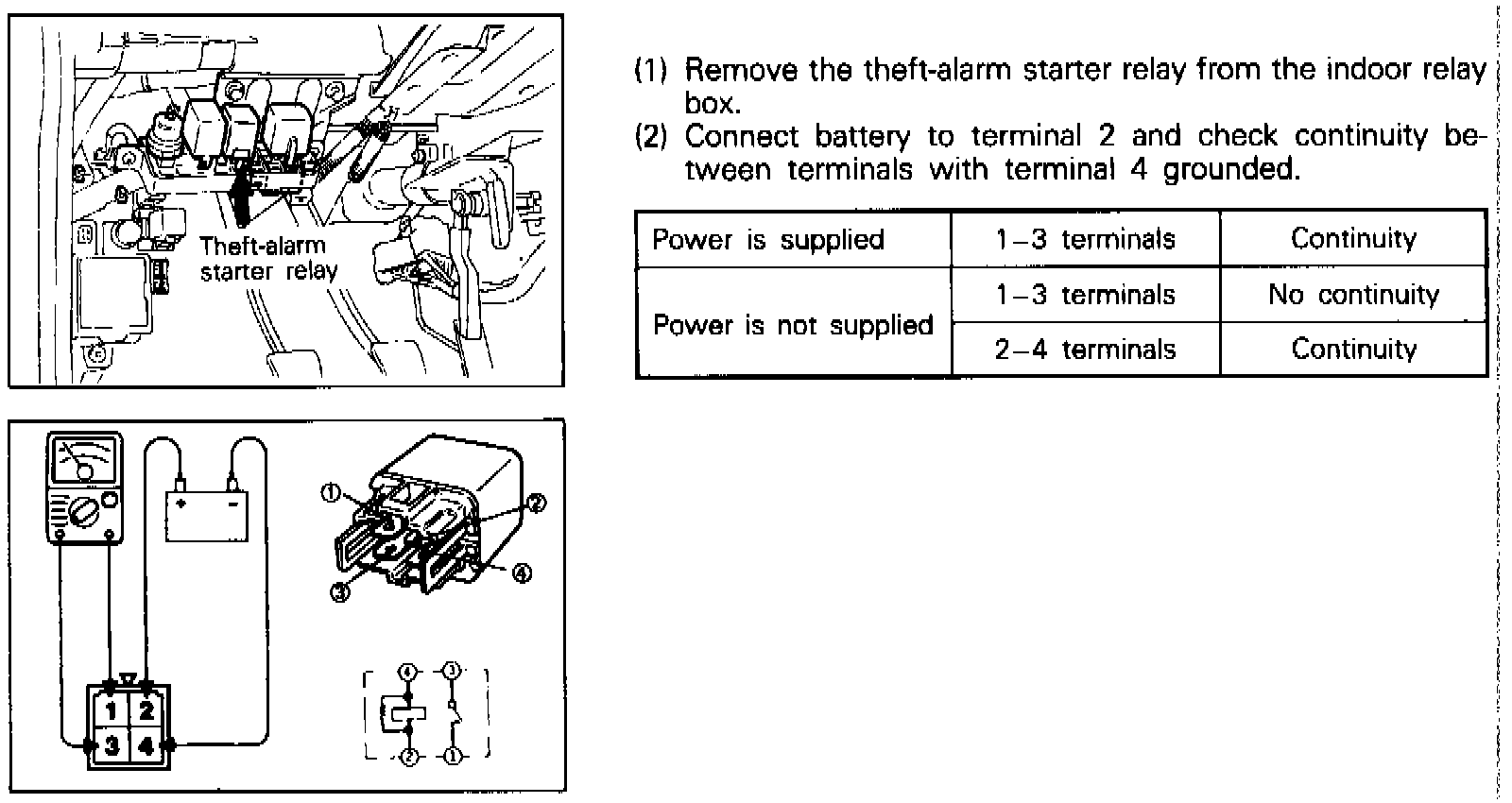

Fig. 18 Theft Alarm & Starter Relay Test:

For relay testing, refer to Fig. 13 and 18.
