Power Window Relay: Locations

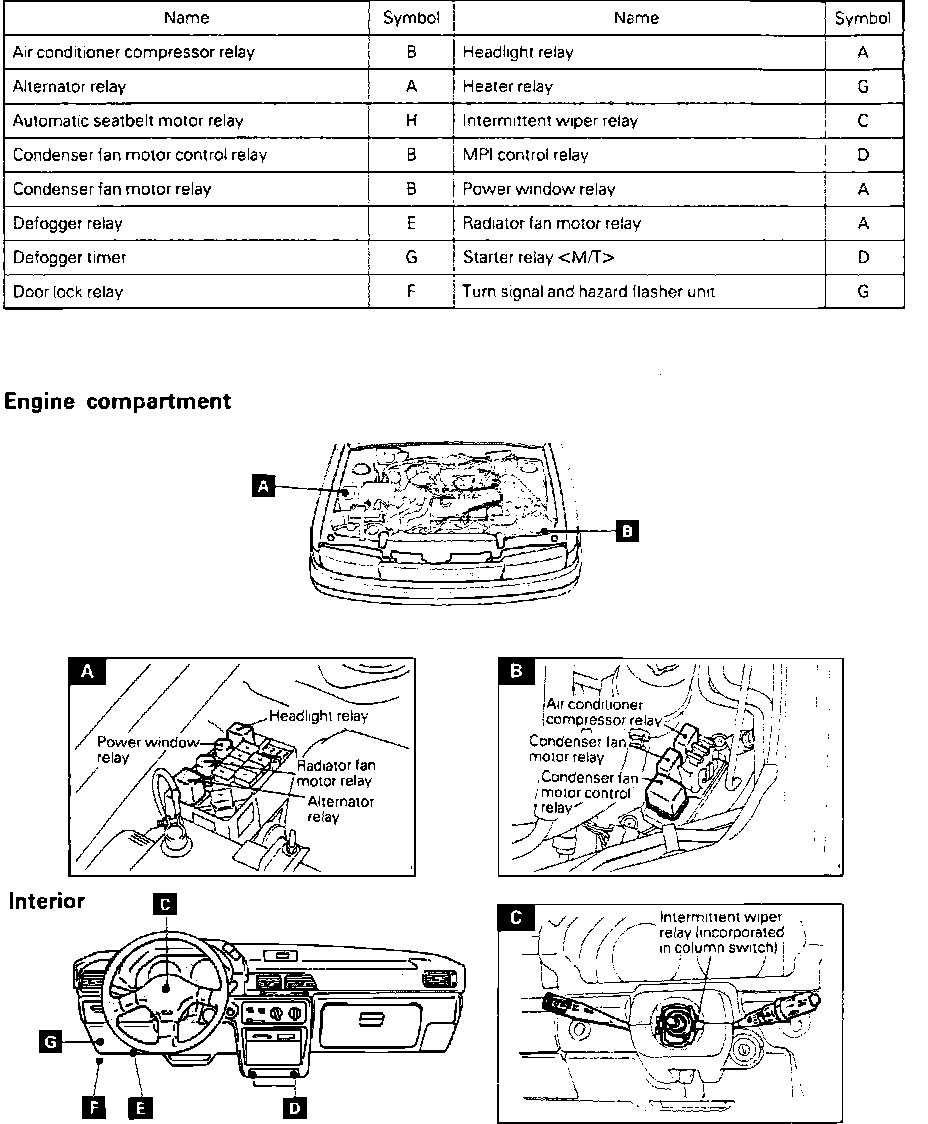

Relay Locations (Part 1 Of 2):




Relay Locations (Part 1 Of 2):




On RH Fender Apron
