Distributor: Locations

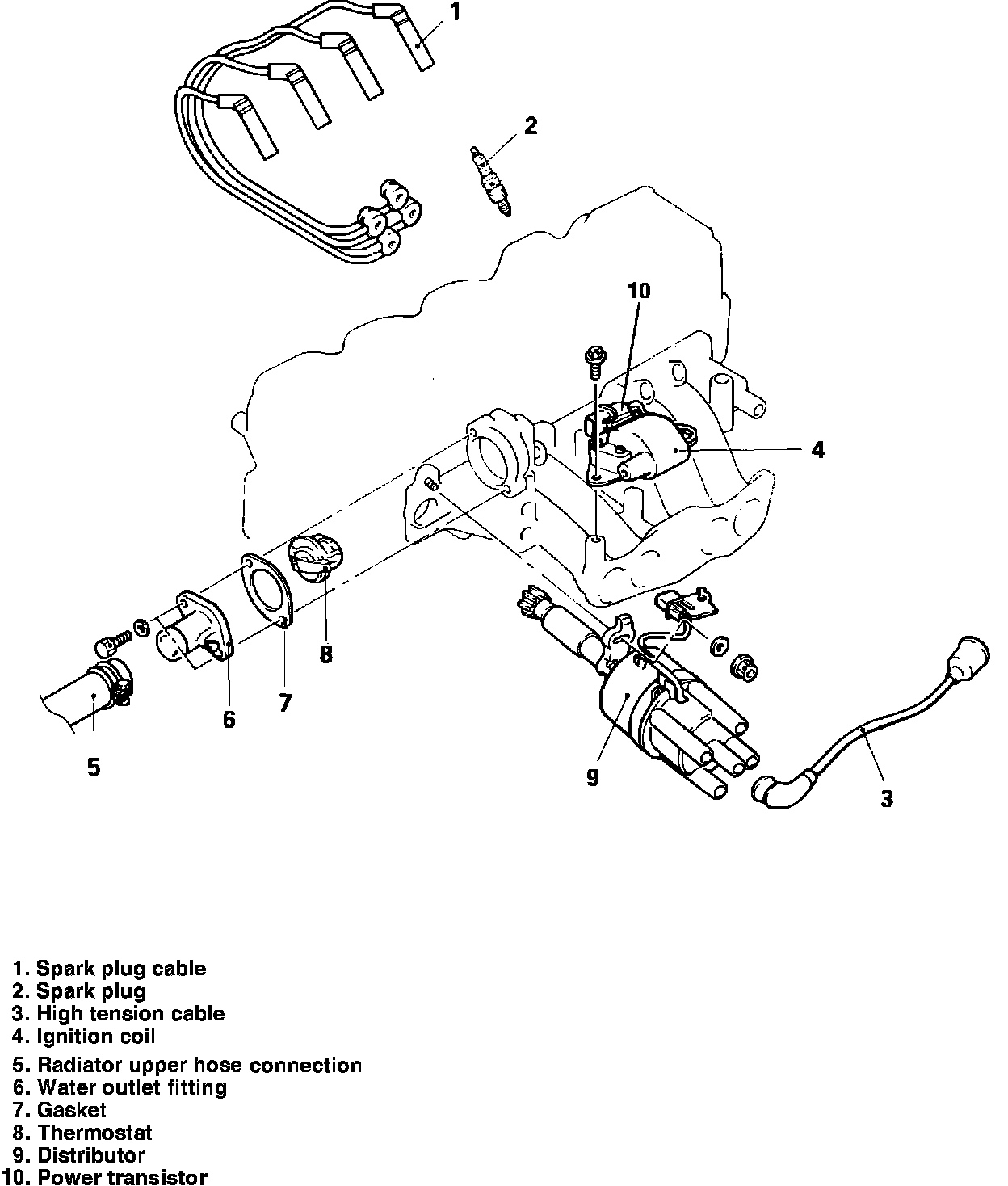

Fig. 17 Distributor replacement.:

Crank Angle/TDC Sensor
Located inside distributor

Distributor
Located left side of cylinder head

Ignition Coil
Located left side of engine, on intake manifold

Ignition Timing Connector
Protruding from wiring harness near throttle body

Power Transistor
Located on top of engine near throttle body

Spark Plugs
Located right side of cylinder head
