A/T Technical Data

R4AW2 4-spd A/T, Gear Ratios:

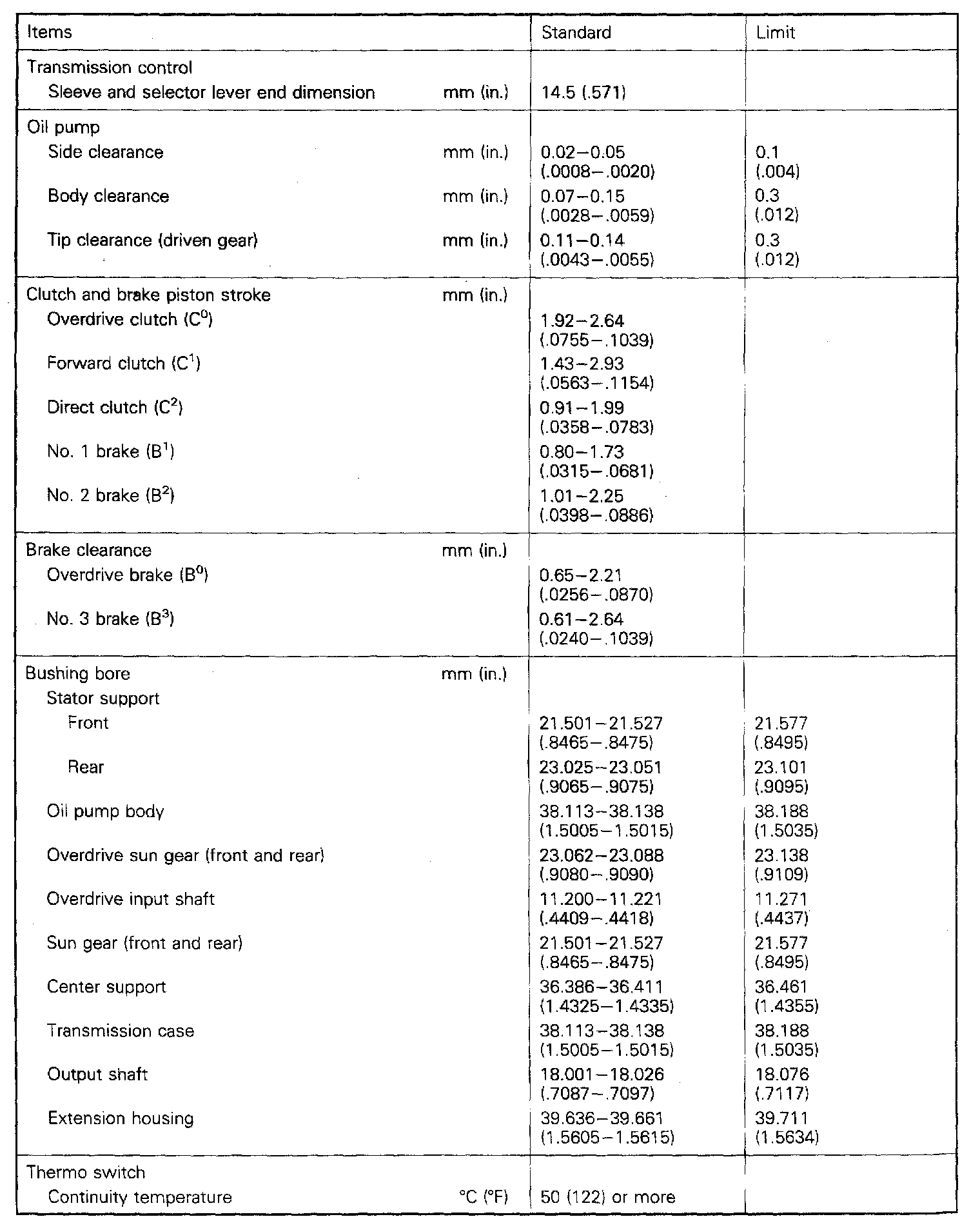

R4AW2 4-spd A/T, Transmission Standard Values & Limits:

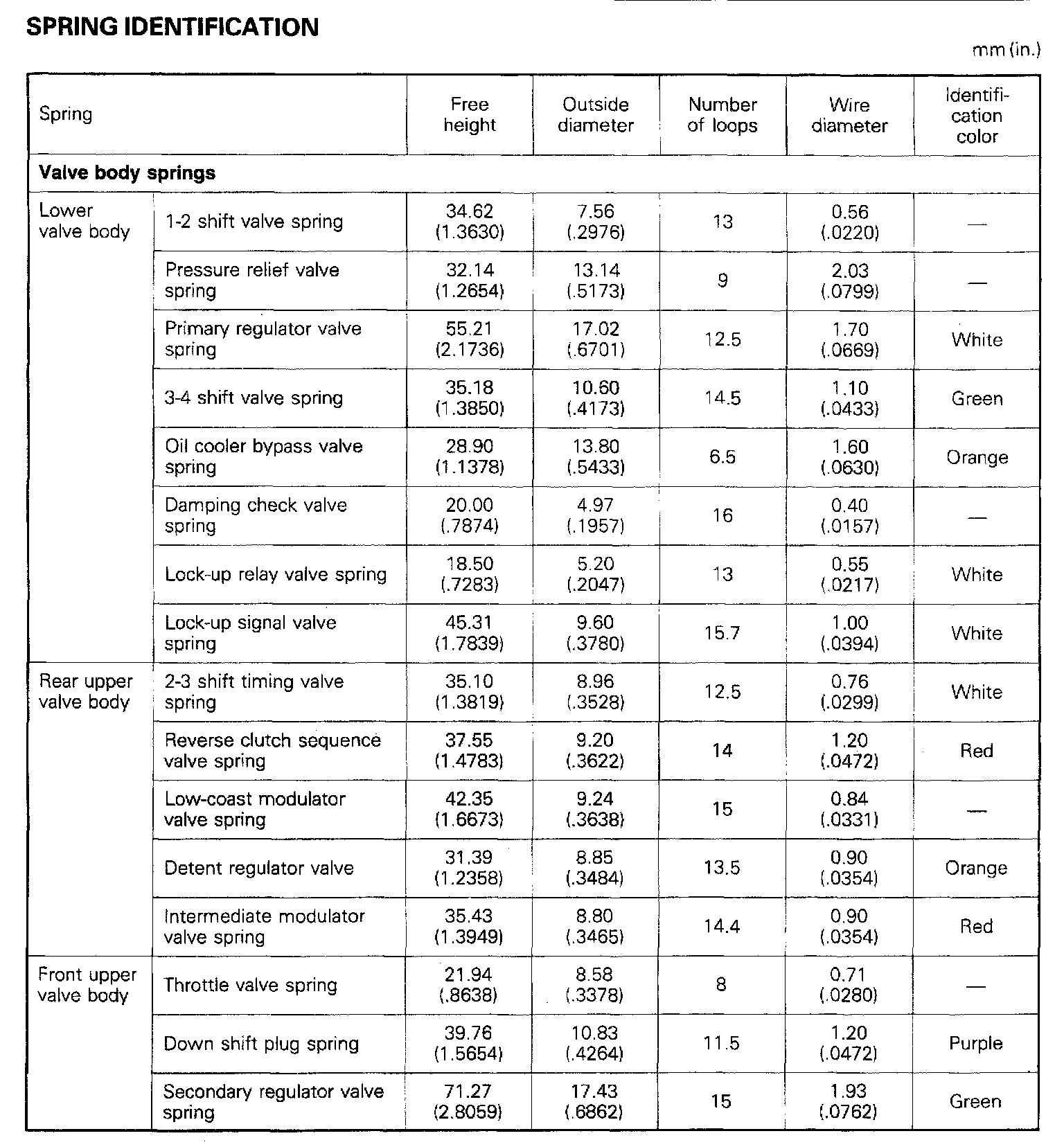

R4AW2 4-spd A/T, Valve Body Springs:

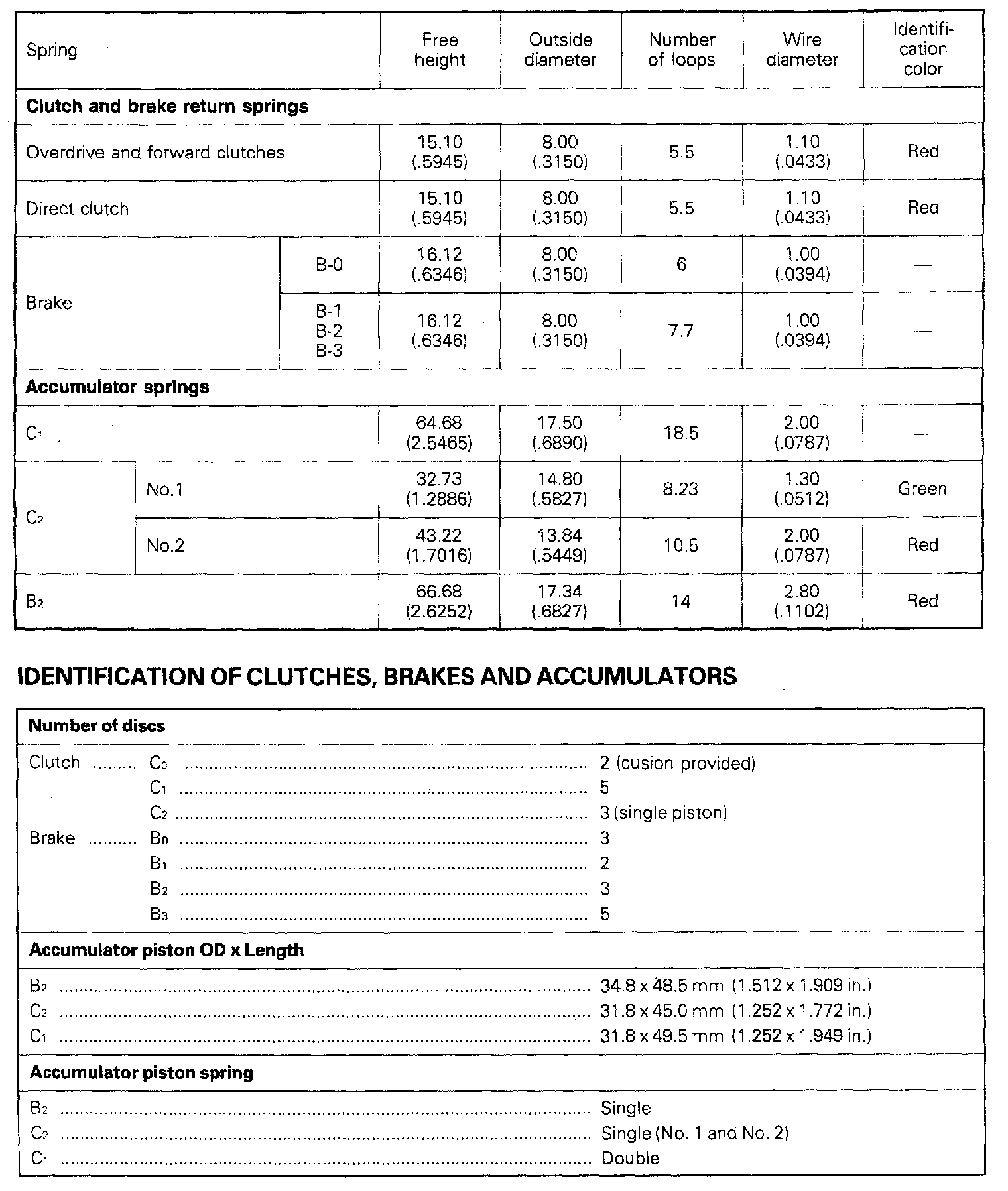

R4AW2 4-spd A/T, Clutch & Accumulator Springs / Dimensions:
