Service Specifications

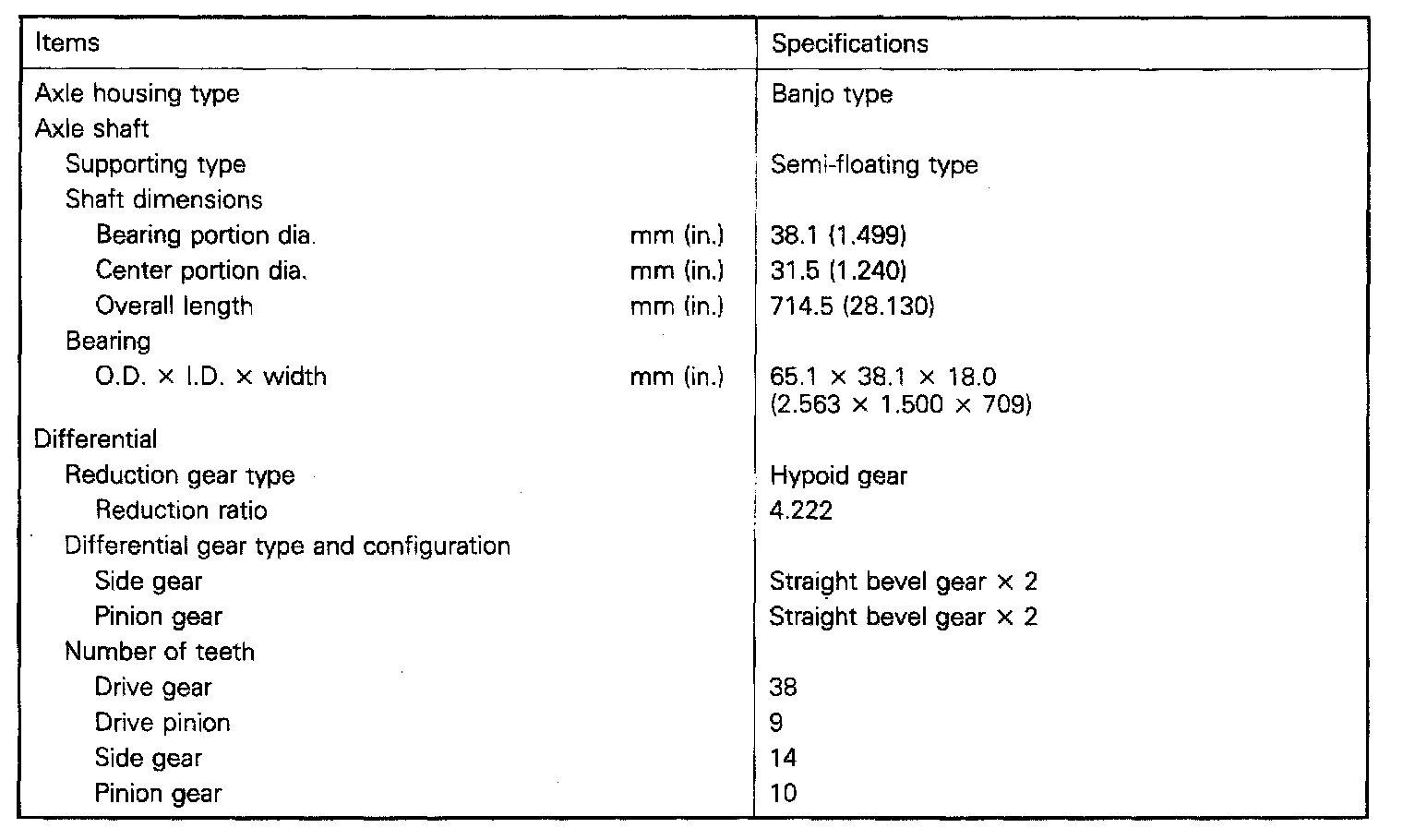

R4AW2 4-spd A/T, 2WD Rear Differential Dimensions:

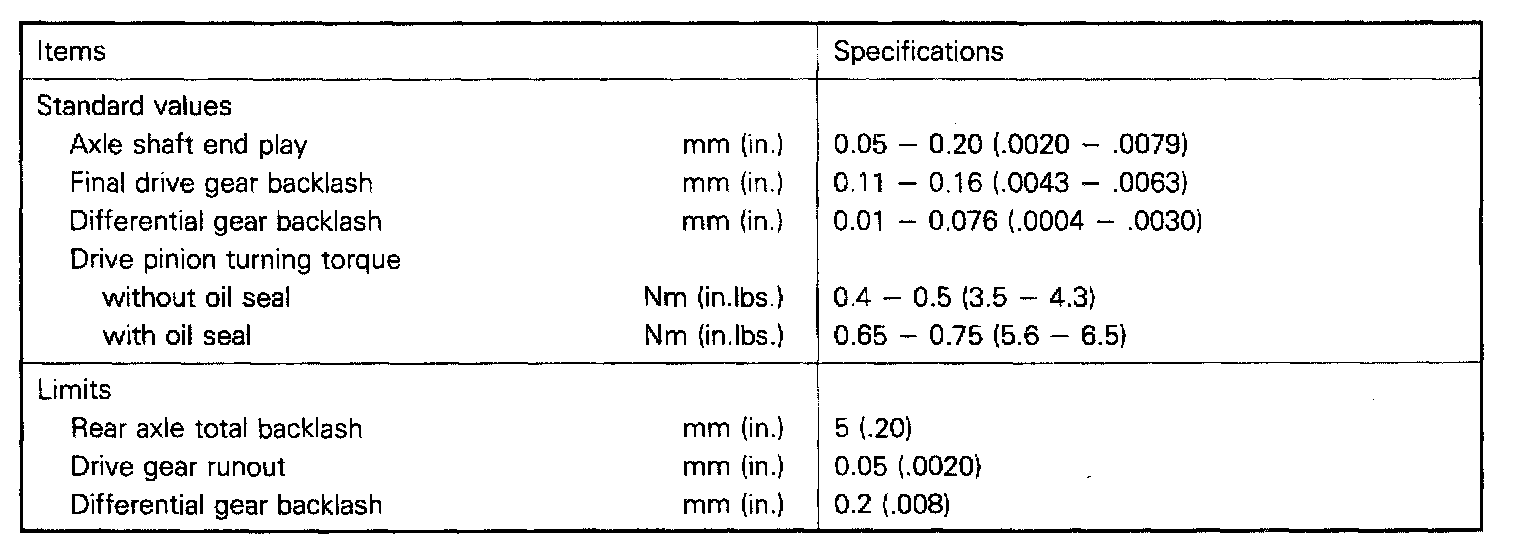

R4AW2 4-spd A/T, 2WD Rear Differential Standard Values & Limits:
