System Specifications

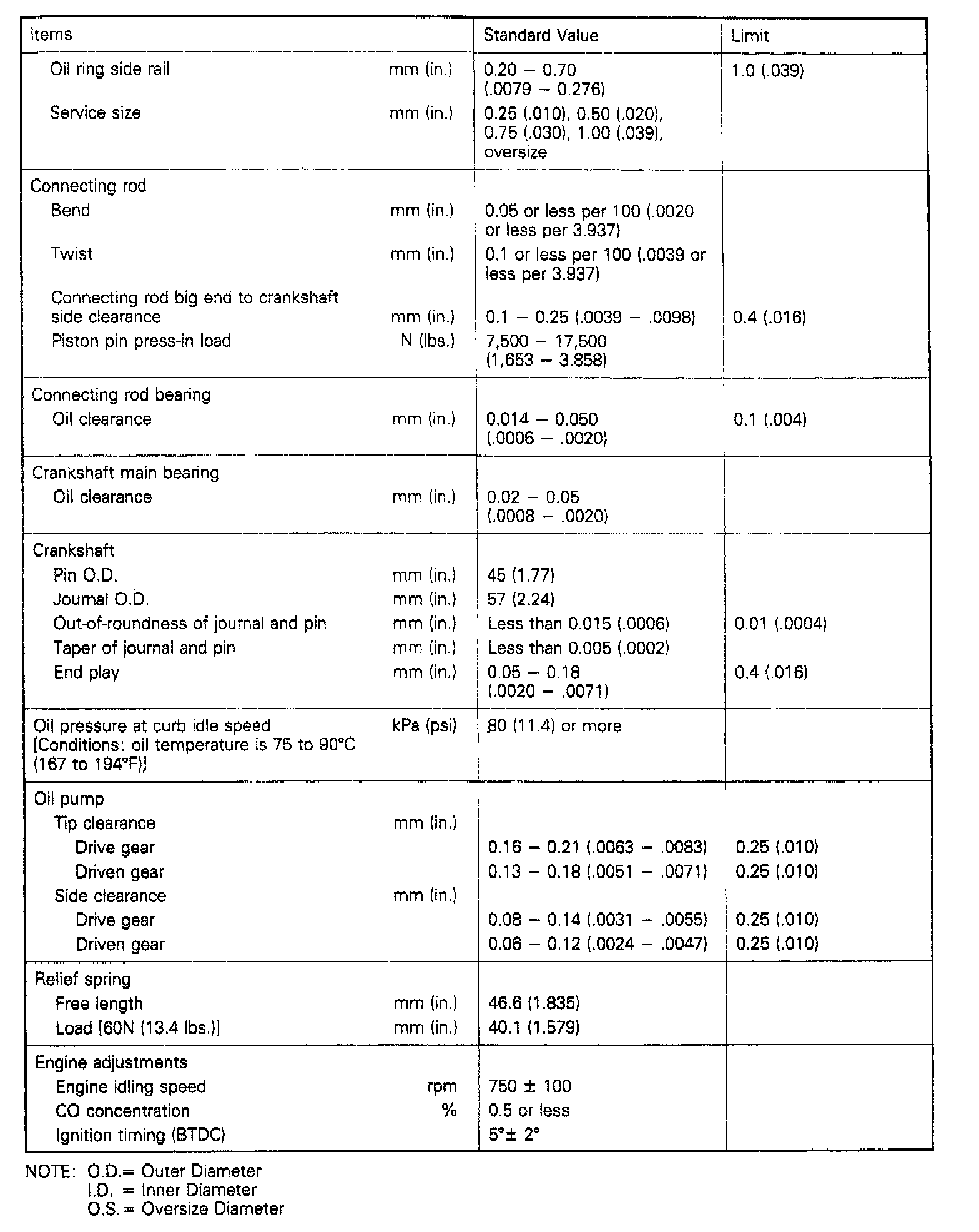

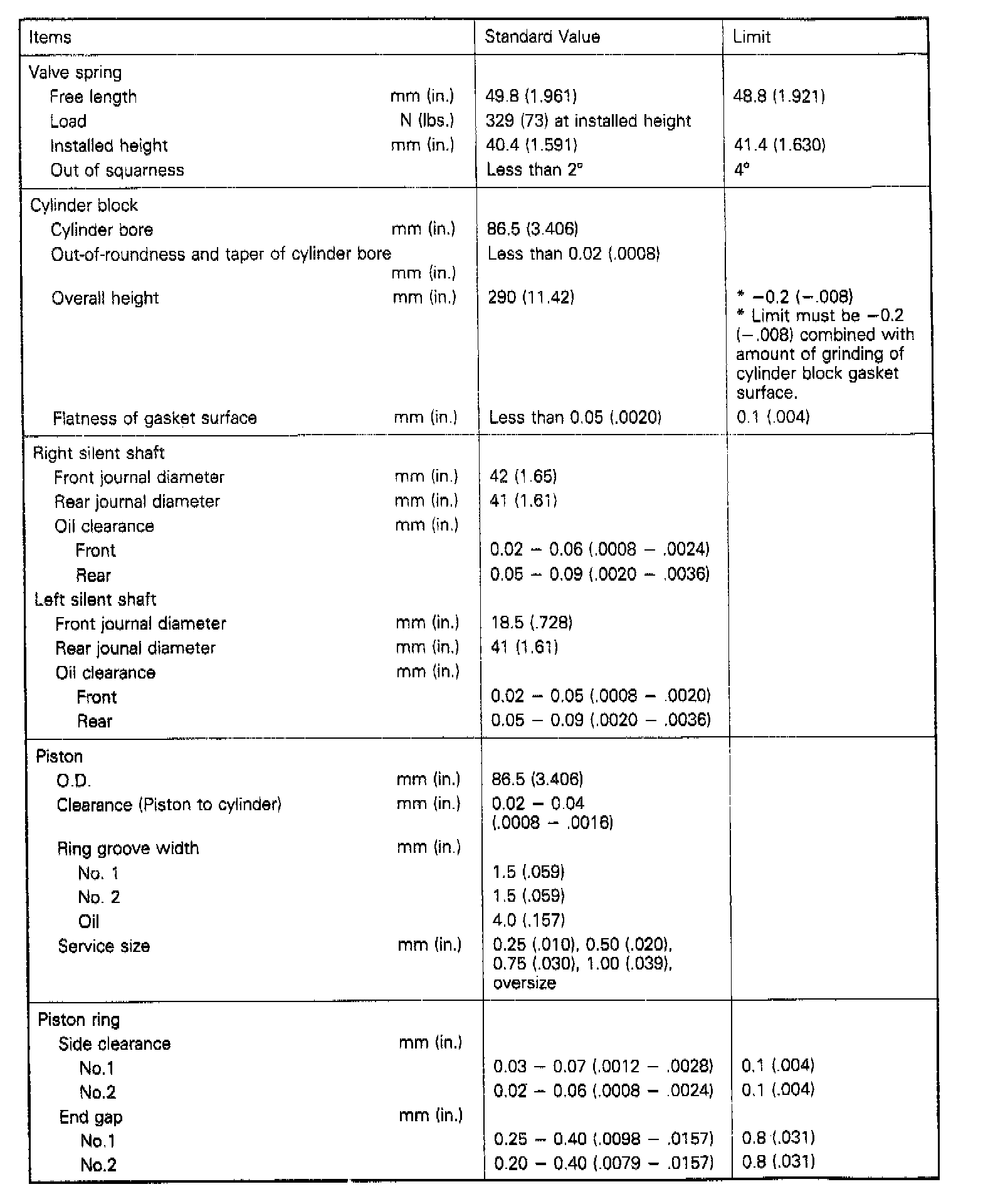

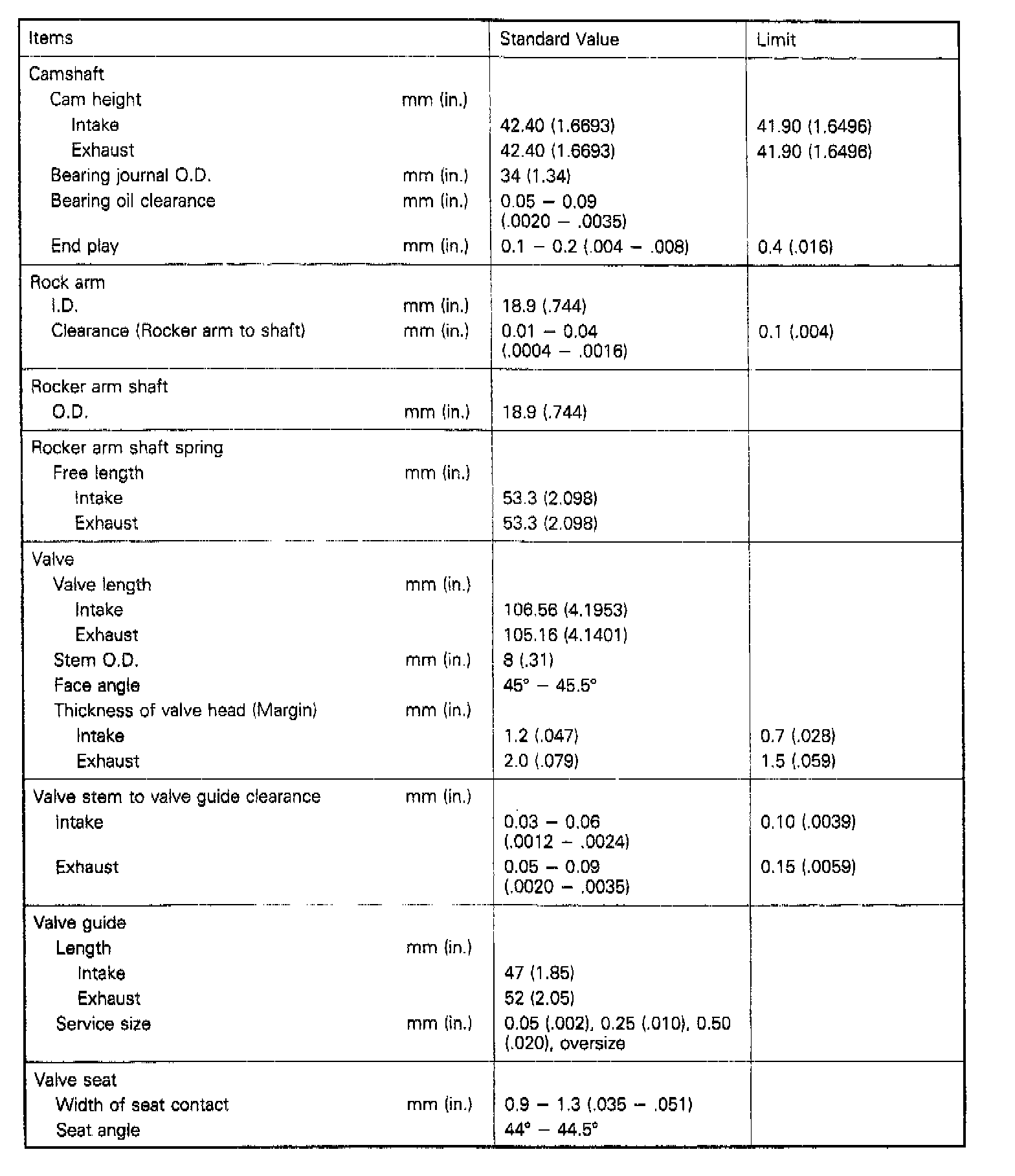

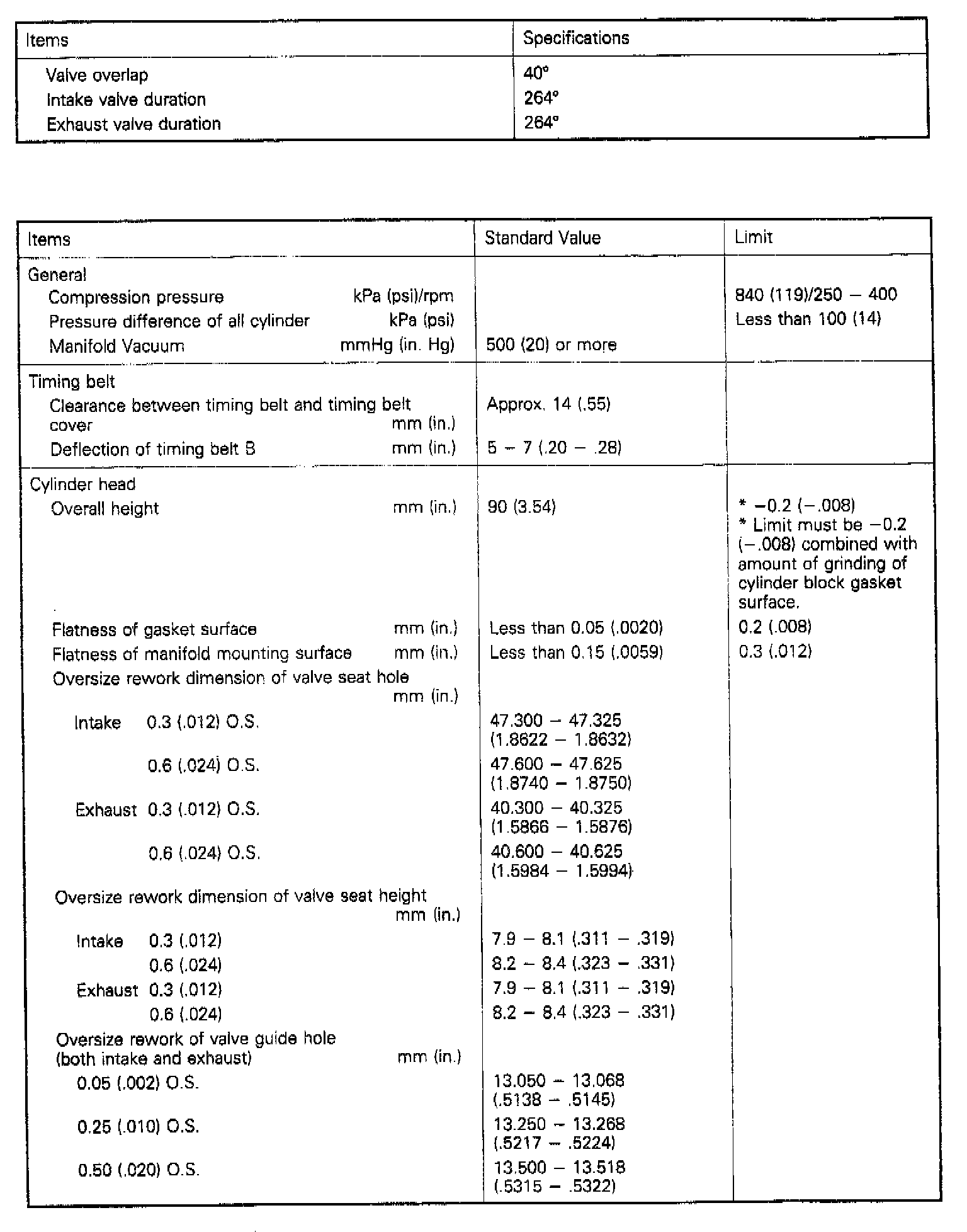

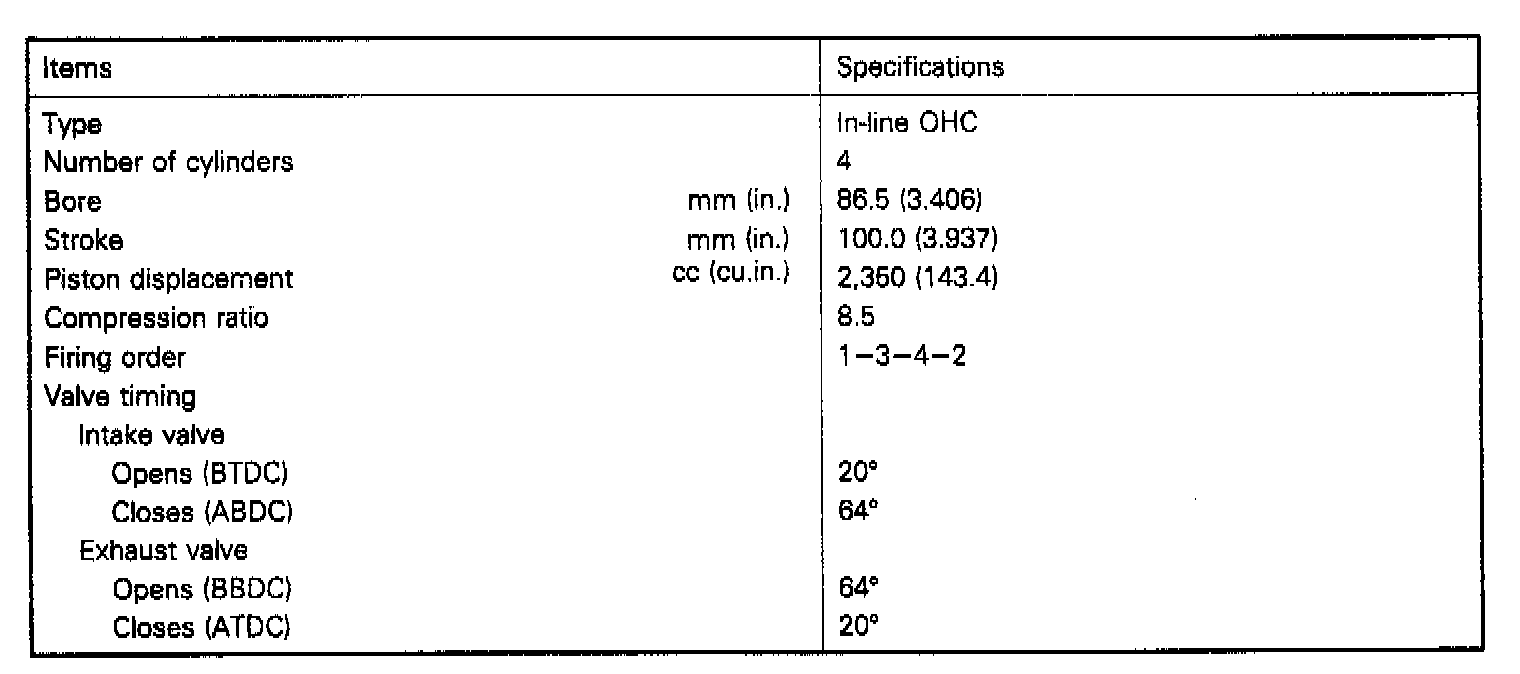

ENGINE SPECIFICATIONS

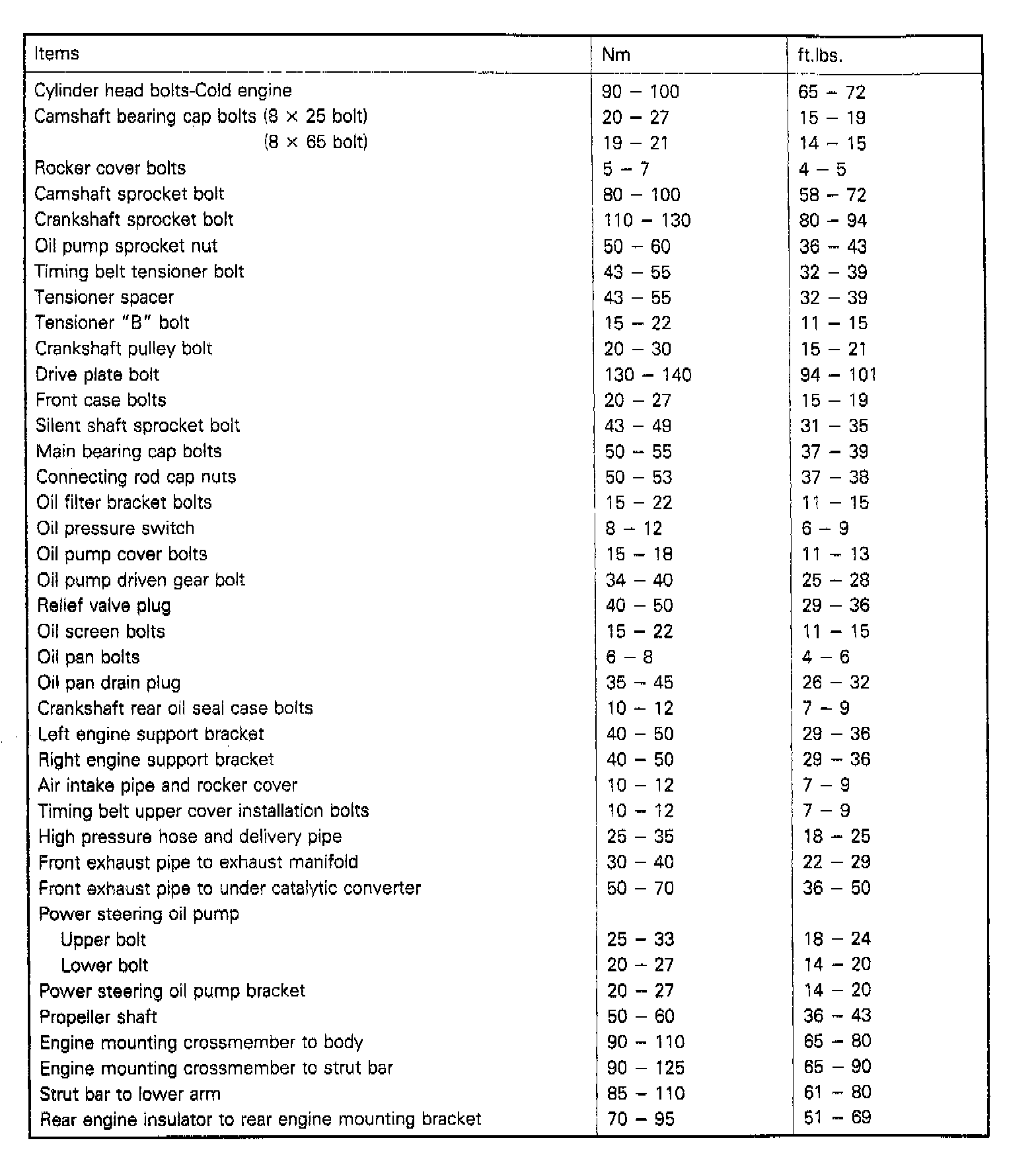

TIGHTENING SPECIFICATIONS

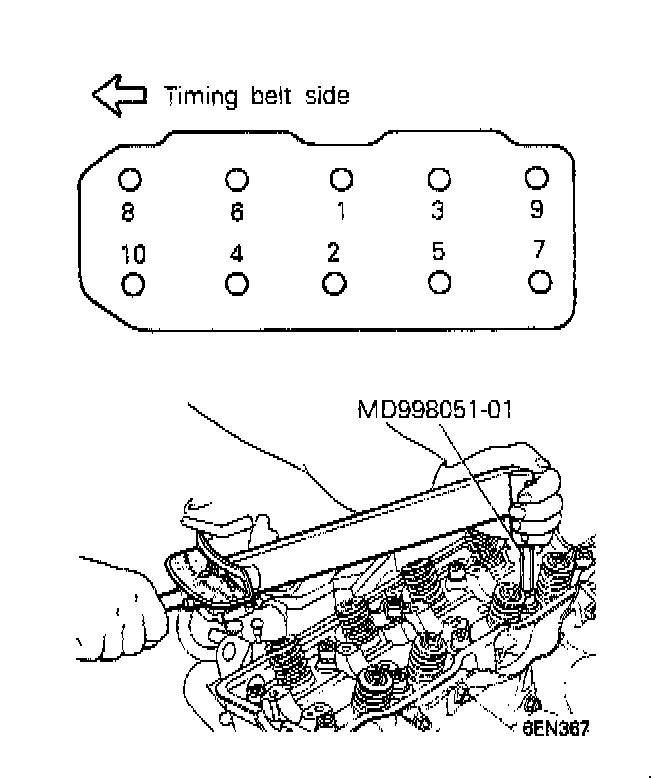

CYLINDER HEAD TIGHTENING SEQUENCE
