Federal

COMPONENT LOCATOR

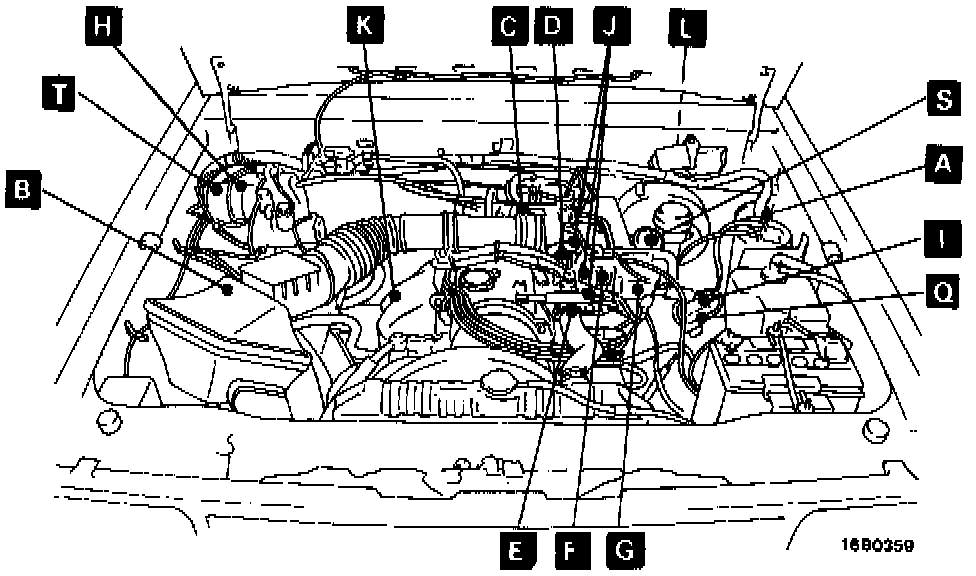

Engine Compartment





Name Symbol

Air conditioning compressor clutch relay A
Volume air-flow sensor B
Intake air temperature sensor B
Barometric pressure sensor B
Idle speed control motor C
Closed throttle position switch C
Idle speed control motor position sensor C
Throttle position sensor D
Engine coolant temperature sensor E
Ignition coil F
Power transistor F
Crankshaft & camshaft position sensor G
Fuel pump check terminal H
Evaporative emission purge solenoid I
Injector J
Oxygen Sensor K
Park/Neutral position switch L
EGR solenoid Q
EGR temperature sensor S
Ignition timing adjustment terminal T

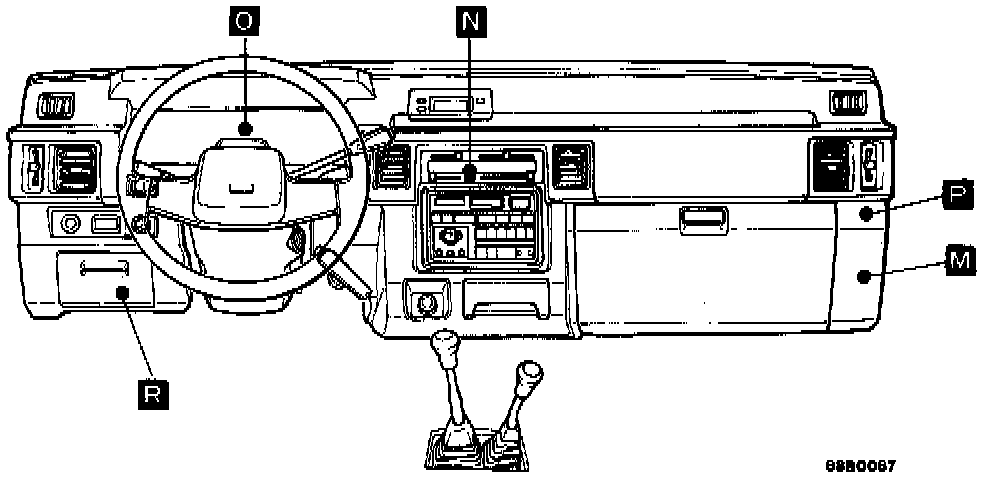

Instrument Panel





Name Symbol

Multiport fuel injection relay M
Air conditioning switch N
Vehicle-speed sensor (reed switch) O
Engine control module P
Data link connector R
