A/T Technical Data

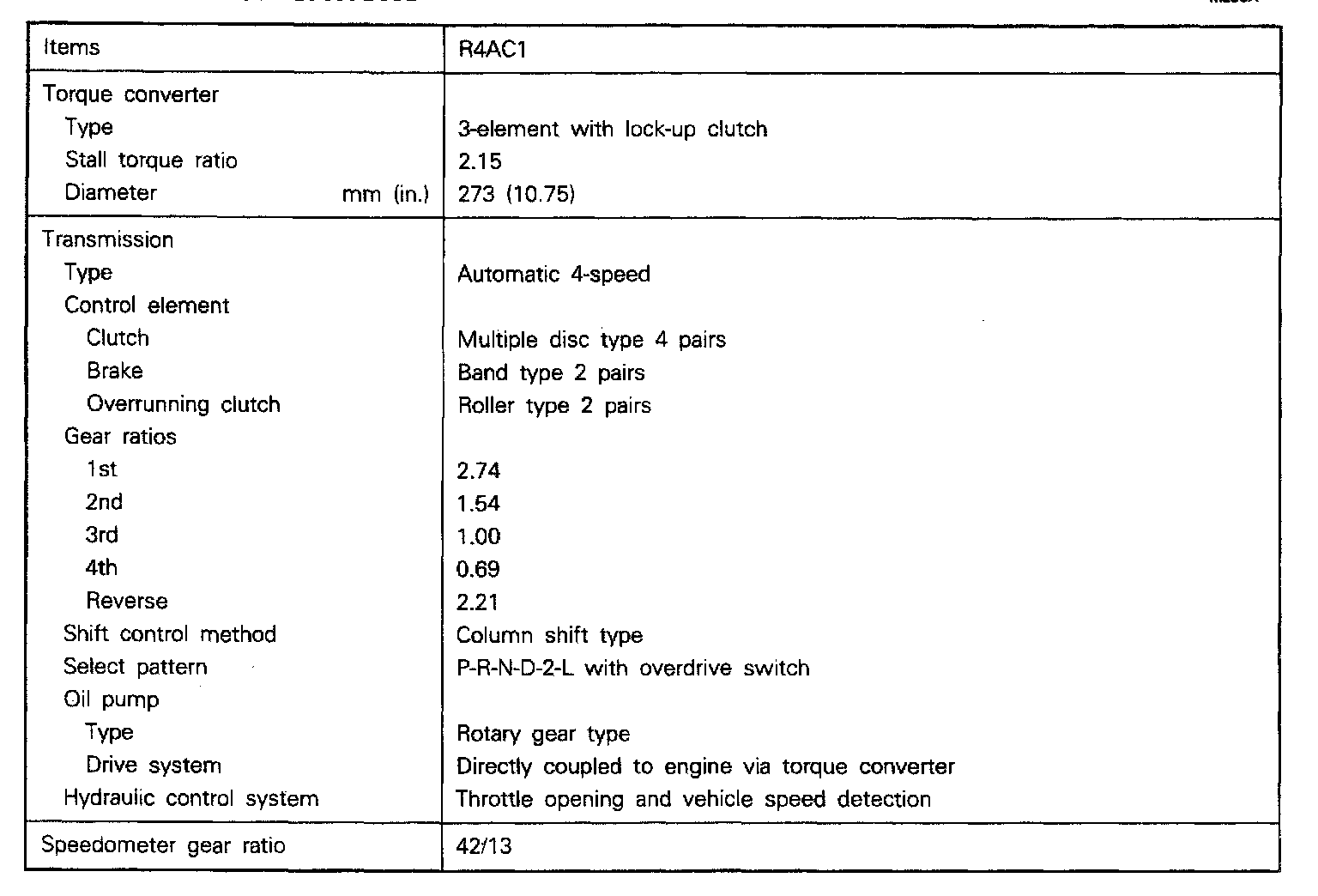

R4AC1 4-spd A/T, Gear Ratios:

R4AC1 4-spd A/T, Transmission Standard Values:

R4AC1 4-spd A/T, Standard Values:
