Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1992
>>
Pickup 2WD L4-2350cc 2.4L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Differential Assembly
>>
Service Specifications
Service Specifications

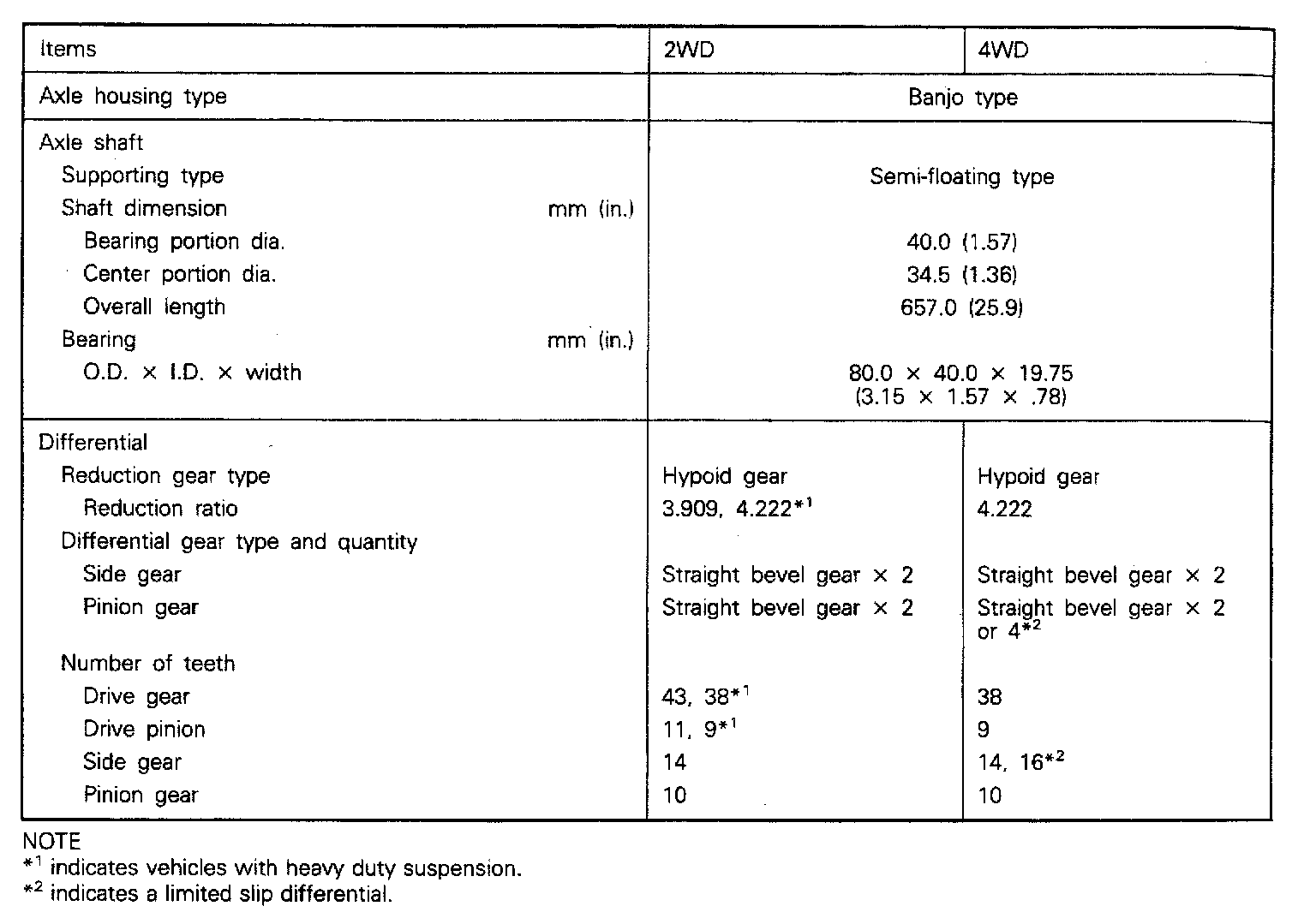

2WD/4WD Rear Differential Dimensions:

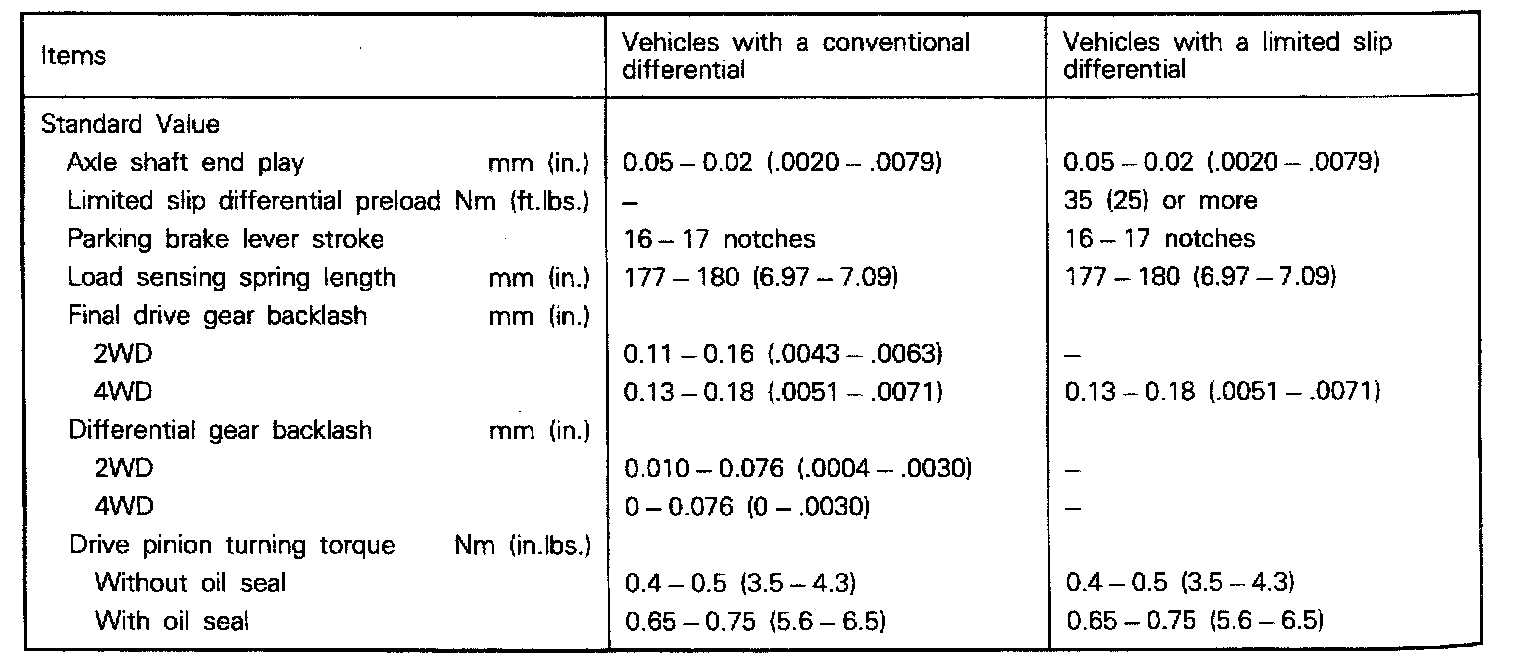

2WD/4WD Rear Differential Standard Values:
2WD/4WD Rear Differential Standard Values & Limits:
