Coolant Temperature Sensor/Switch (For Computer): Locations

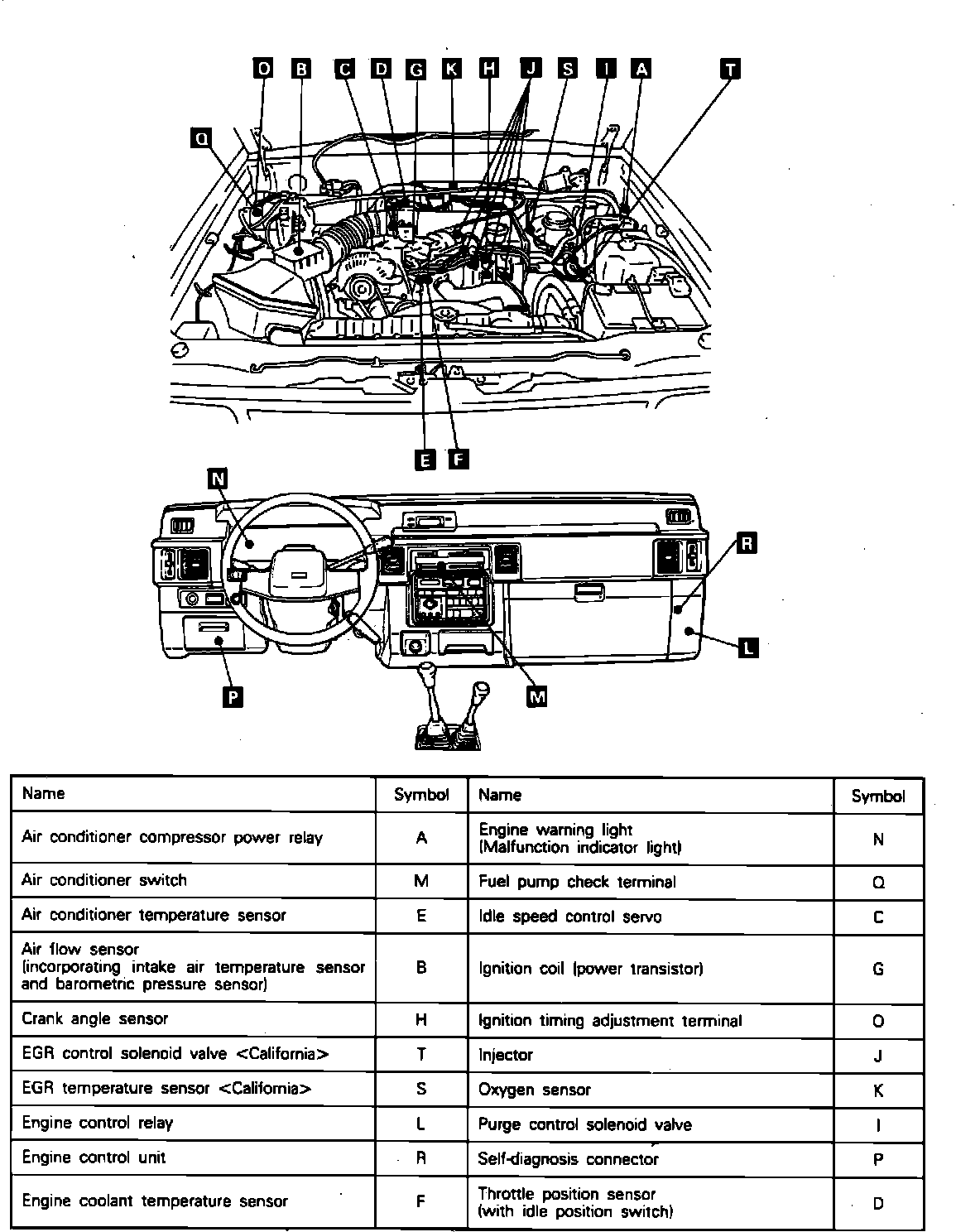

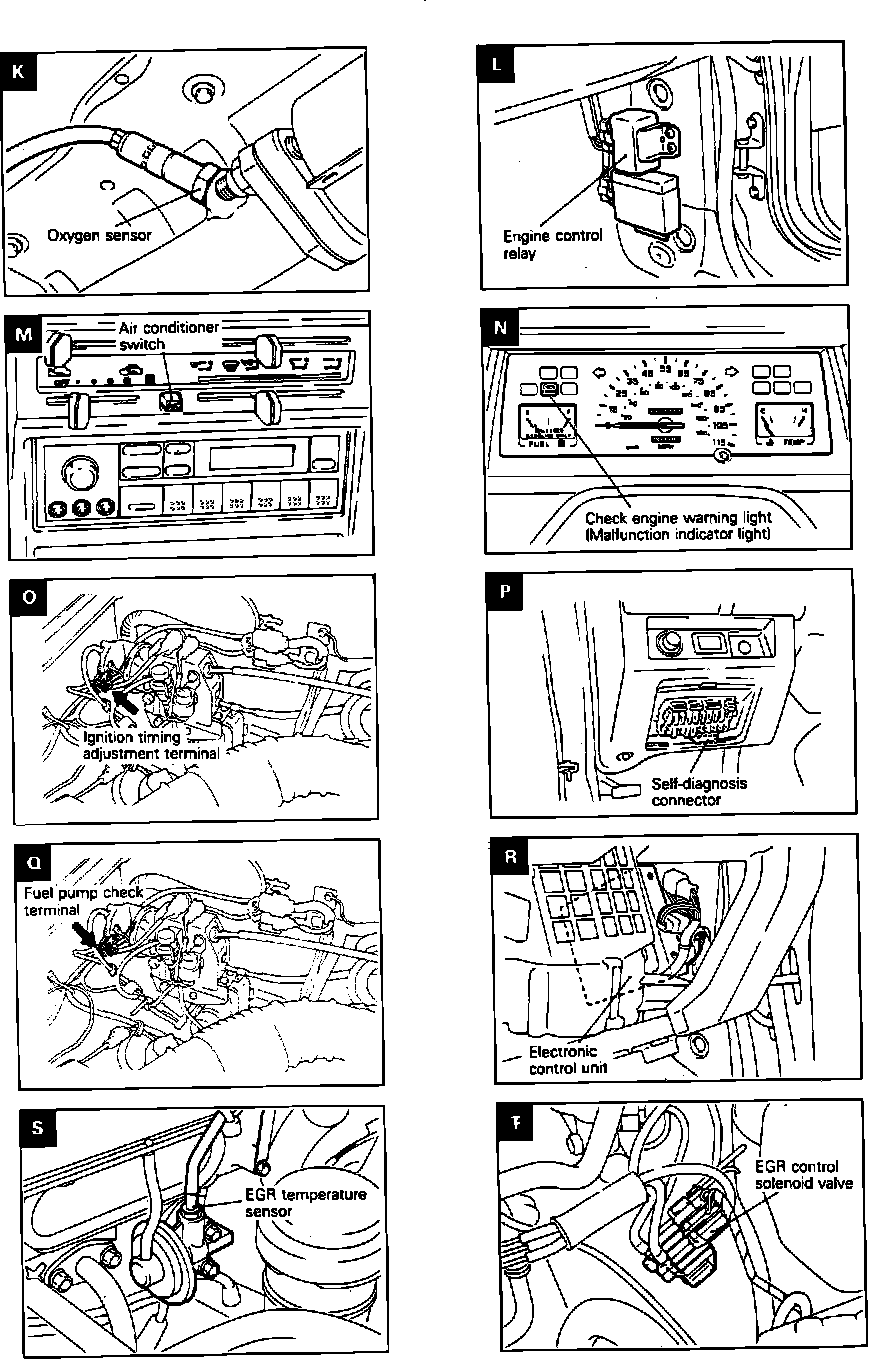

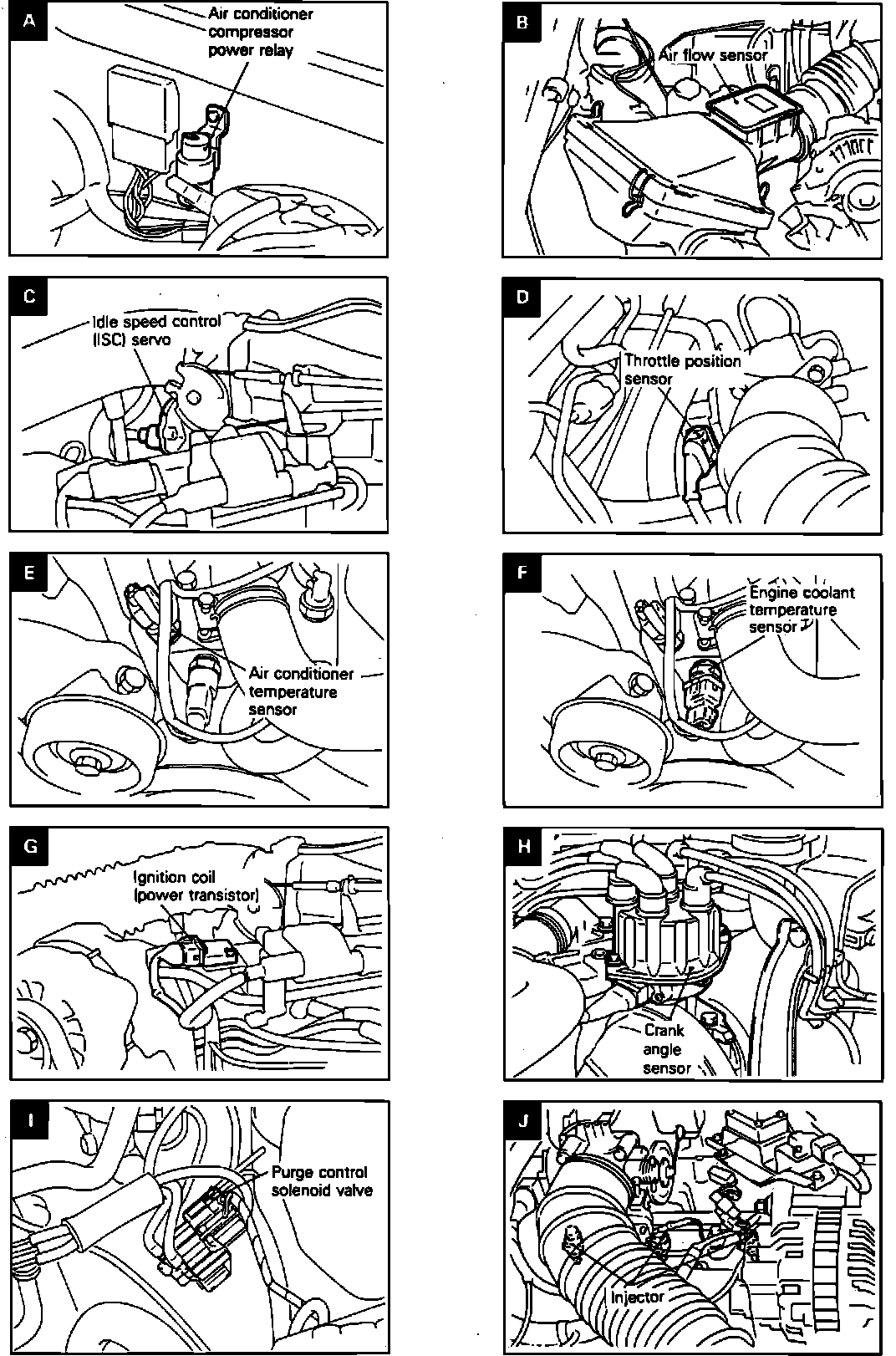

Fuel Injection System Component Locations (Part 1 Of 3).:

Fuel Injection System Component Locations (Part 1 Of 3).:

Fuel Injection System Component Locations (Part 1 Of 3).:

Front Center Of Engine

Applicable to: 3.0L/V6-181
